Description

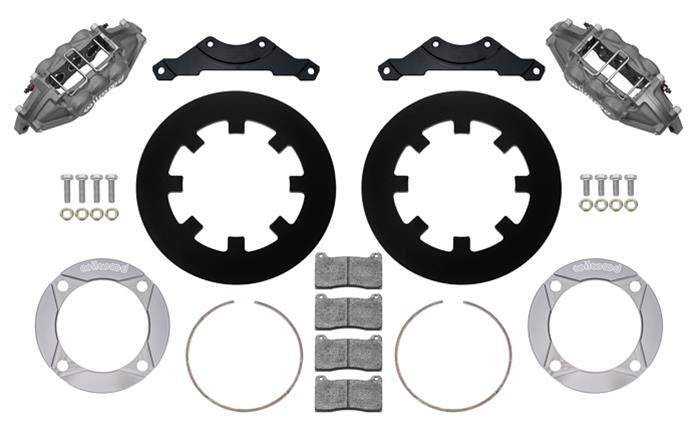

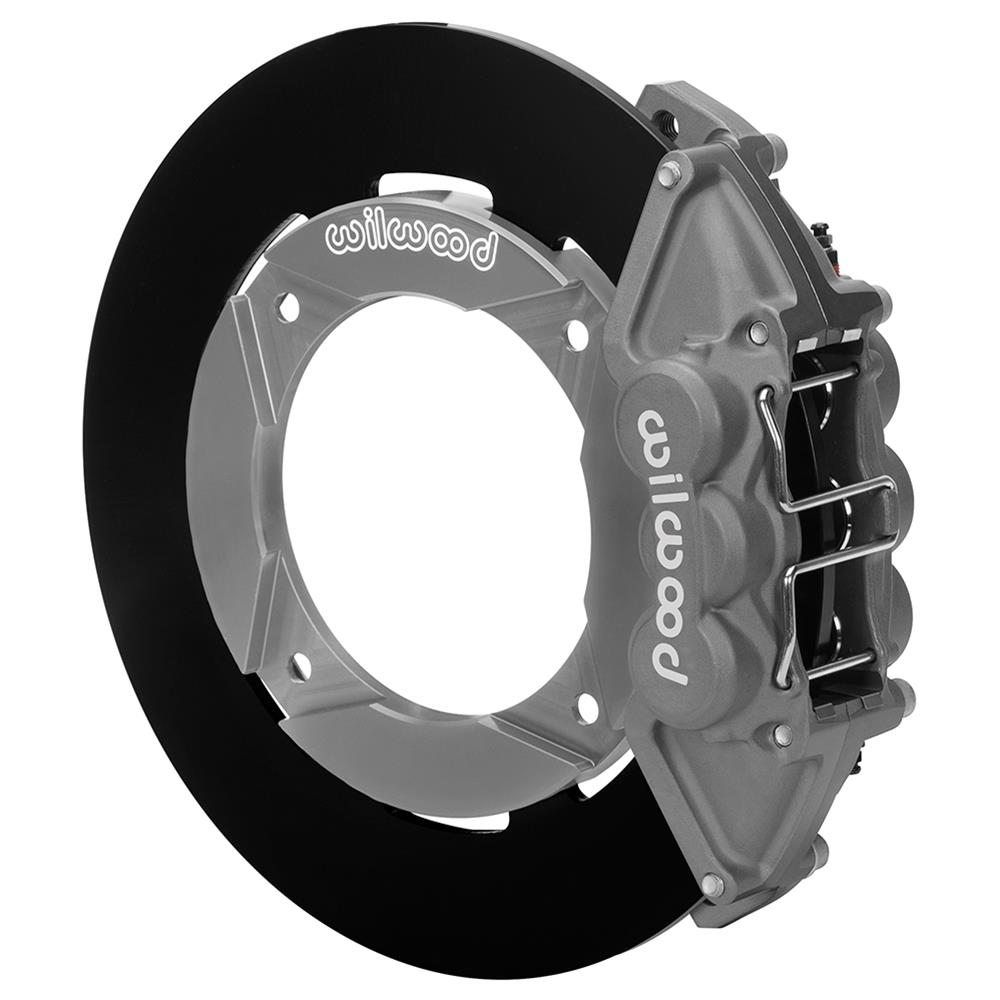

Wilwood UTV6 brake kits are offered for the front and rear of your off-road machine. The kits pair dynamically mounted rotors and upgraded 6-piston calipers.
The rotors reduce thermal stress, prevent piston knockback from rough terrain, and their steel construction, along with a greater diameter and thickness offer less distortion. They have a black Electro Coat finish and are available drilled or solid. The forged aluminum, differential-bore, 6-piston calipers reduce deflection and provide more uniform engagement to increase braking force and improve feel. The calipers are available with a red or black powdercoat. Calipers in Wilwood Race kits have a Type III Ano finish.
Available for popular Side x Side machines, Wilwood UTV6 brake kits will improve your UTV's braking performance. Kits include brake pads. Choose the preferred kit(s) designed for your machine.
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-17045
Part Type: Disc Brake Kits
Product Line: Wilwood UTV6 Brake Kits
HP Direct Part Number: WIL-140-17045
Position: Rear
Front Rotor Included: No
Rear Rotor Included: Yes
Rear Rotor Style: Solid surface
Rear Rotor Construction: Solid
Rear Rotor Diameter: 11.25 in./285.75mm
Rear Rotor Thickness (in.): 0.25
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Six
Rear Caliper Material: Aluminum
Rear Caliper Color: Natural
Brake Pads Included: Yes
Friction Material Name: PolyMatrix E
Parking Brake Provision: No
Offset (in.): 0.000 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: This kit is designed for Polaris UTVs. Please see the Application section for details and the Instructions Sheet for replacement parts and associated components.
The rotors reduce thermal stress, prevent piston knockback from rough terrain, and their steel construction, along with a greater diameter and thickness offer less distortion. They have a black Electro Coat finish and are available drilled or solid. The forged aluminum, differential-bore, 6-piston calipers reduce deflection and provide more uniform engagement to increase braking force and improve feel. The calipers are available with a red or black powdercoat. Calipers in Wilwood Race kits have a Type III Ano finish.
Available for popular Side x Side machines, Wilwood UTV6 brake kits will improve your UTV's braking performance. Kits include brake pads. Choose the preferred kit(s) designed for your machine.
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-17045
Part Type: Disc Brake Kits
Product Line: Wilwood UTV6 Brake Kits
HP Direct Part Number: WIL-140-17045
Position: Rear
Front Rotor Included: No
Rear Rotor Included: Yes
Rear Rotor Style: Solid surface
Rear Rotor Construction: Solid
Rear Rotor Diameter: 11.25 in./285.75mm
Rear Rotor Thickness (in.): 0.25
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Six
Rear Caliper Material: Aluminum
Rear Caliper Color: Natural
Brake Pads Included: Yes
Friction Material Name: PolyMatrix E
Parking Brake Provision: No
Offset (in.): 0.000 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: This kit is designed for Polaris UTVs. Please see the Application section for details and the Instructions Sheet for replacement parts and associated components.
