Wilwood UTV6 Brake Kits 140-16633

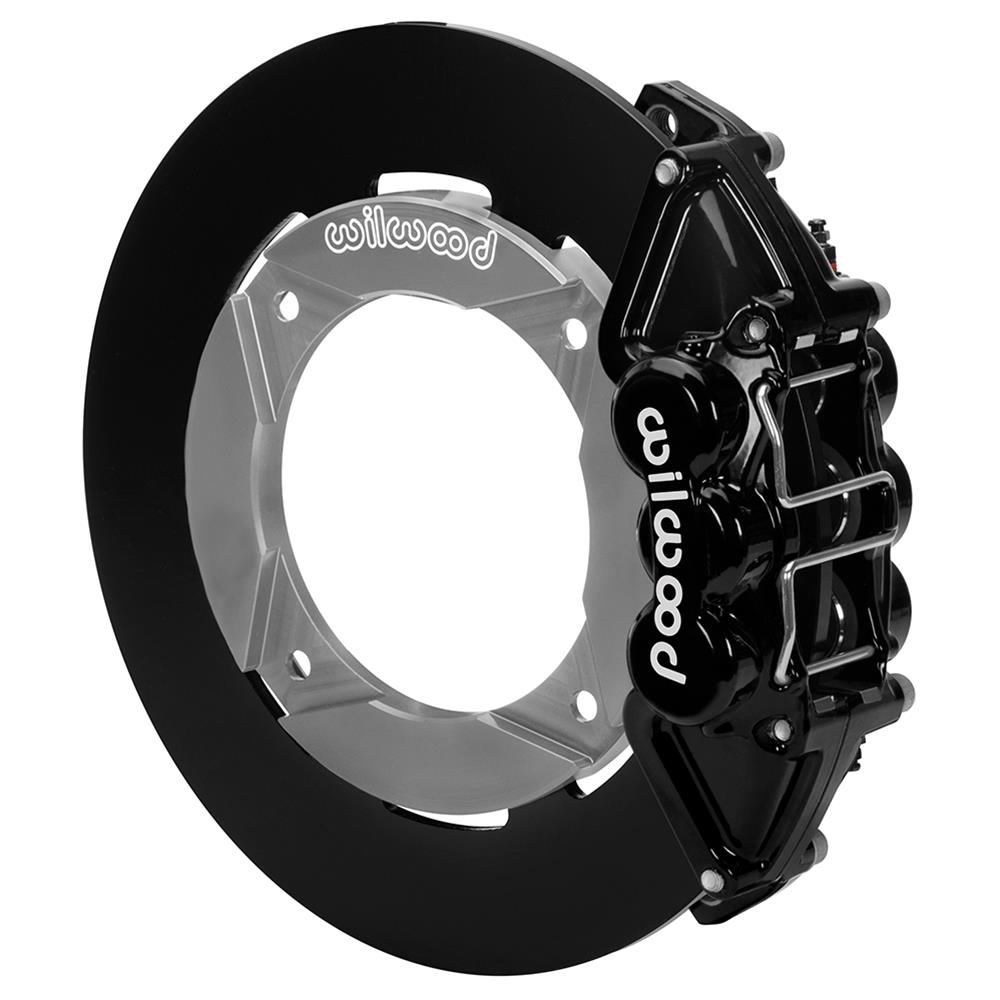

Wilwood UTV6 brake kits are offered for the front and rear of your off-road machine. The kits pair dynamically mounted rotors and upgraded 6-piston calipers.

The rotors reduce thermal stress, prevent piston knockback from rough terrain, and their steel construction, along with a greater diameter and thickness offer less distortion. They have a black Electro Coat finish and are available drilled or solid. The forged aluminum, differential-bore, 6-piston calipers reduce deflection and provide more uniform engagement to increase braking force and improve feel. The calipers are available with a red or black powdercoat. Calipers in Wilwood Race kits have a Type III Ano finish.

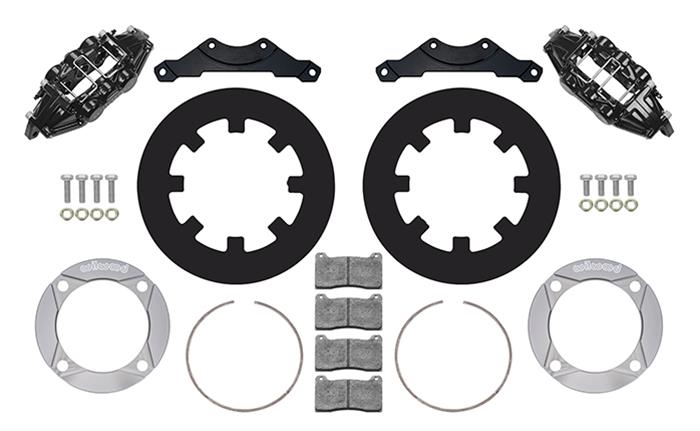

Available for popular Side x Side machines, Wilwood UTV6 brake kits will improve your UTV's braking performance. Kits include brake pads. Choose the preferred kit(s) designed for your machine.
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-16633
Part Type: Disc Brake Kits
Product Line: Wilwood UTV6 Brake Kits
HP Direct Part Number: WIL-140-16633
Position: Rear
Front Rotor Included: No
Rear Rotor Included: Yes
Rear Rotor Style: Solid surface
Rear Rotor Construction: Solid
Rear Rotor Diameter: 11.25 in./285.72mm
Rear Rotor Thickness (in.): 0.25
Front Caliper Included: Yes
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Six
Rear Caliper Material: Aluminum
Rear Caliper Color: Black
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: No

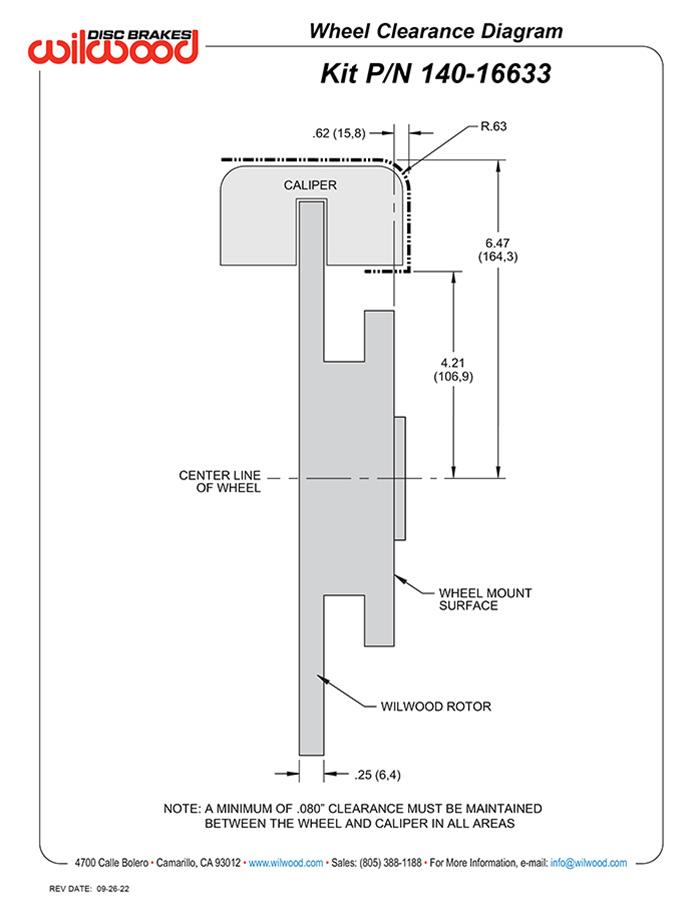

Minimum Recommended Wheel Diameter (in.): 14 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
