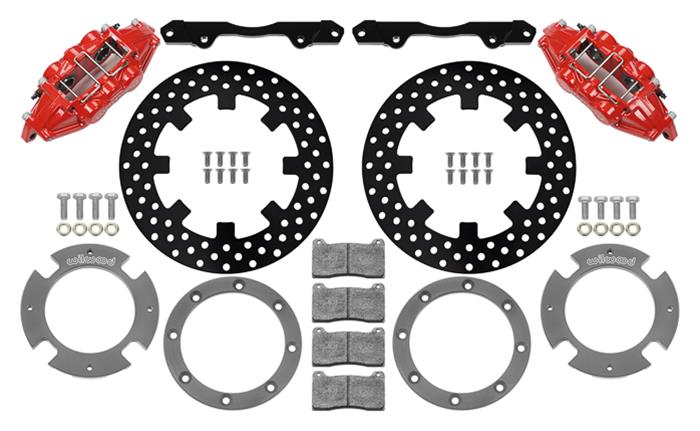

Wilwood UTV4 Brake Kits 140-16629-DR

Wilwood UTV4 brake kits are offered for the front and rear of your off-road machine. The kits pair dynamically mounted rotors and upgraded 4-piston calipers. The rotors reduce thermal stress, prevent piston knockback from rough terrain, and their high-friction steel construction, along with a greater diameter and thickness offer less distortion. The forged aluminum, differential-bore, 4-piston calipers reduce deflection and provide more uniform engagement to increase braking force and improve feel. Available for popular Side x Side machines, Wilwood UTV4 brake kits will improve your UTV's braking performance. They are available with black or red powdercoated calipers. Choose the kit designed for your machine.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-16629-DR
Part Type: Disc Brake Kits
Product Line: Wilwood UTV4 Brake Kits
HP Direct Part Number: WIL-140-16629-DR
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): 4 x 6.30 in.
Brake Rotor Bolt Pattern (mm): 4 x 160.02mm
Rear Rotor Included: Yes
Rear Rotor Style: Cross-drilled surface
Rear Rotor Construction: Solid
Rear Rotor Diameter: 11.25 in./285.72mm
Rear Rotor Thickness (in.): 0.25
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Aluminum
Rear Caliper Color: Red
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: No
Minimum Recommended Wheel Diameter (in.): 14 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
