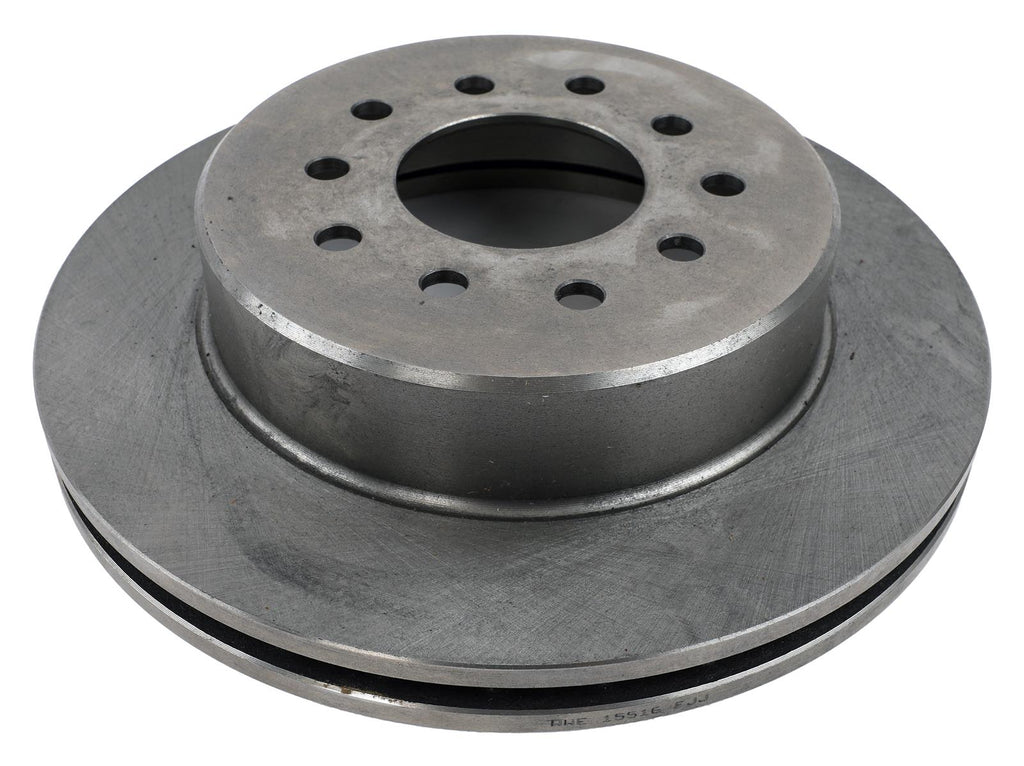

Wilwood Ultralite HP 32 Vane Rotor and Hats 160-15516

Wilwood Ultralite HP 32 vane rotor and hats extend the service life of brakes on heavier competition vehicles and other severe-duty applications. These replacement rotors are precision-machined to less than .001 in. tolerance for overall flatness, parallelism, and radial runout on Wilwood's long-grain carbon iron castings. Plus, their superior thermal conductivity and stability properties resist distortion and fatigue. For racing or everyday use, Wilwood Ultralite HP 32 vane rotor and hats are a great choice. Order the size, surface style, and bolt pattern needed for your application.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 160-15516
Part Type: Brake Rotors
Product Line: Wilwood Ultralite HP 32 Vane Rotor and Hats
HP Direct Part Number: WIL-160-15516
UPC: 889545089240
Intended for Street Use: Yes
For Use with Stock Calipers: No
Rotor Construction: Vented
Rotor Style: Solid surface
Rotor Outside Diameter (in.): 12.19 in.
Brake Rotor Bolt Pattern (in.): Dual 5 x 4.75 in./5 x 5.00 in.
Brake Rotor Bolt Pattern (mm): Dual 5 x 120.65mm/5 x 127.00mm
Nominal Thickness (in.): 1.100
Nominal Thickness (mm): 27.94
Rotor Material: Iron
Rotor Finish: Natural
Quantity: Sold individually.
Notes: Features 7.11 in. inside diameter and 1.52 in. offset.
