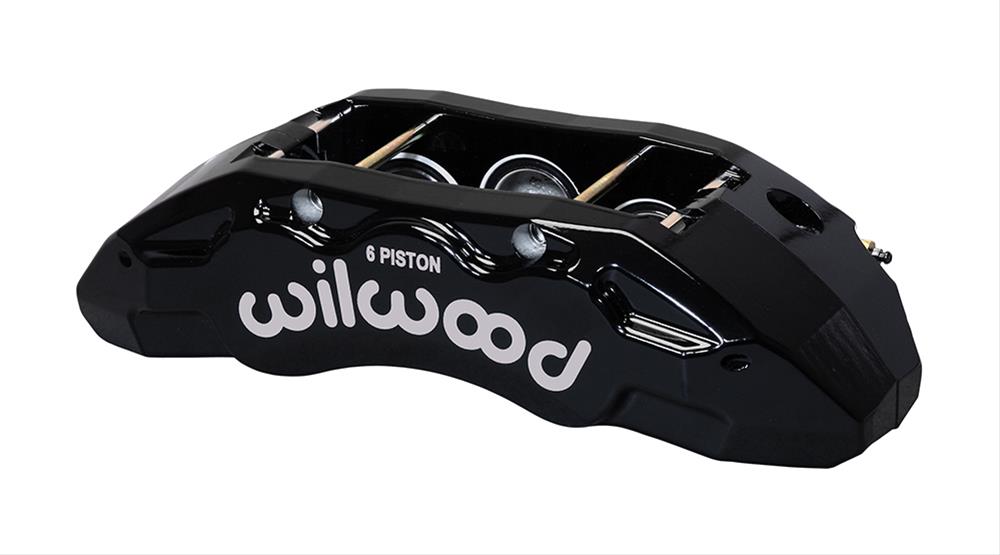

Wilwood TX6R Forged Radial Mount Calipers 120-13815-BK

Wilwood TX6R radial mount 6-piston calipers are engineered and purpose built for severe-duty service on heavy-duty trucks, SUVs, and Class 1, 2, and 3 armored vehicles up to 14,000 lbs. GVWR. These Tactical Extreme (TX) calipers combine a forged aluminum body, stainless steel pistons, large pad volume, and the ability to accommodate brake rotors up to 1.50 in. thick, making them the ultimate choice for high-strength, lightweight, and tactical level braking capacity for all types of highway and off-road extreme-duty service. Wilwood TX6R radial mount 6ix-piston calipers are offered in hard anodized and powdercoated finishes.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 120-13815-BK
Part Type: Brake Calipers
Product Line: Wilwood TX6R Forged Radial Mount Calipers
HP Direct Part Number: WIL-120-13815-BK
UPC: 889545070736
Caliper Series: TX6R Radial Mount
Caliper Piston Quantity: Six
Piston Diameter (in.): 2.000/1.880/1.880
Rotor Thickness (in.): 1.380 in.
Caliper Material: Aluminum
Caliper Color: Black
Caliper Logo: Wilwood
Parking Brake Provision: No
Fittings Included: No
Fitting Attachment 1: Female threads
Thread Size: 1/8 in. NPT
Brake Pads Included: No
Brackets Included: No
Remanufactured: No
Quantity: Sold individually.

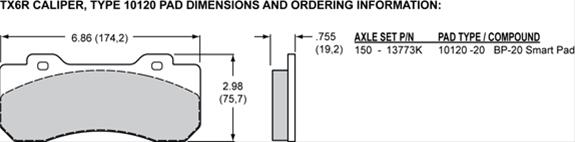

Notes: Accepts 10120 type pad.
