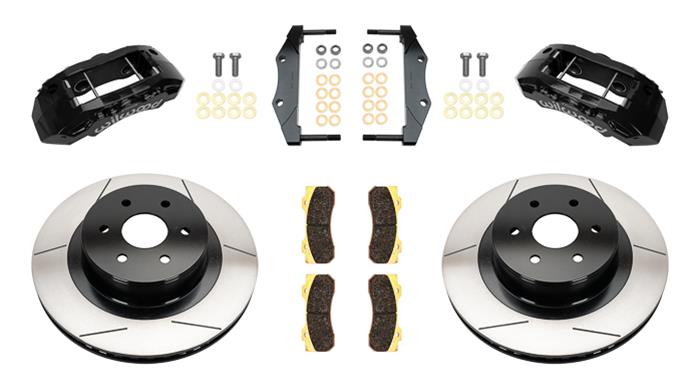

Wilwood TX4R Big Brake Rear Brake Kits 140-16861

Wilwood TX4R Big Brake rear brake kits provide the ultimate in braking performance for countless applications—including many Chevrolet, GMC, and Cadillac truck, SUV, and armored vehicles. Using TX6R radial mount 6-piston aluminum calipers and massive 15.50 in., one-piece, GTB alloy rotors, these bolt-on kits deliver consistent stopping power and extreme-duty durability under sustained high heat. The calipers are volume matched for compatibility with original equipment power brake system output. The kits include radial mount caliper brackets and all the necessary hardware to complete the installation. Braided stainless steel flex lines are supplied for each specific application. Order the TX4R Big Brake kit recommended for your vehicle.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-16861
Part Type: Disc Brake Kits
Product Line: Wilwood TX4R Big Brake Rear Brake Kits
HP Direct Part Number: WIL-140-16861
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): 6 x 5.50 in.
Brake Rotor Bolt Pattern (mm): 6 x 139.70mm
Rear Rotor Included: Yes
Rear Rotor Style: Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 16.00 in./406.40mm
Rear Rotor Thickness (in.): 1.25
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Aluminum
Rear Caliper Color: Black
Brake Pads Included: Yes
Friction Material Name: BP-Q
Parking Brake Provision: No
Minimum Recommended Wheel Diameter (in.): 20 in.
Offset (in.): 0.000 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: For OE rears with single piston calipers.
