Wilwood TC6R Big Brake Truck Rear Brake Kits 140-9406-R

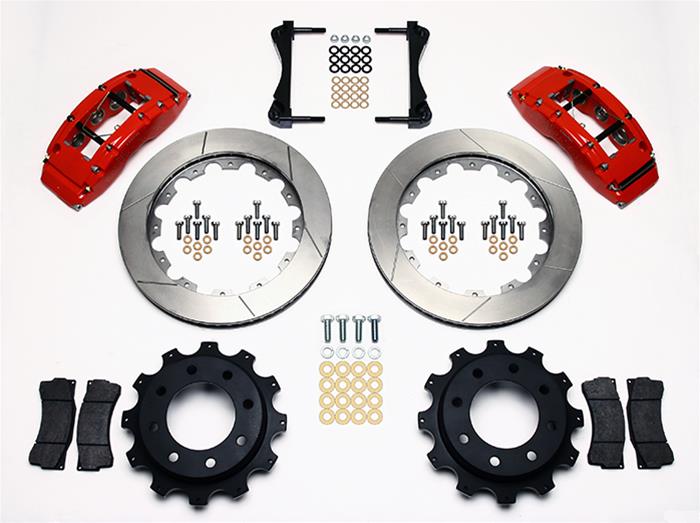

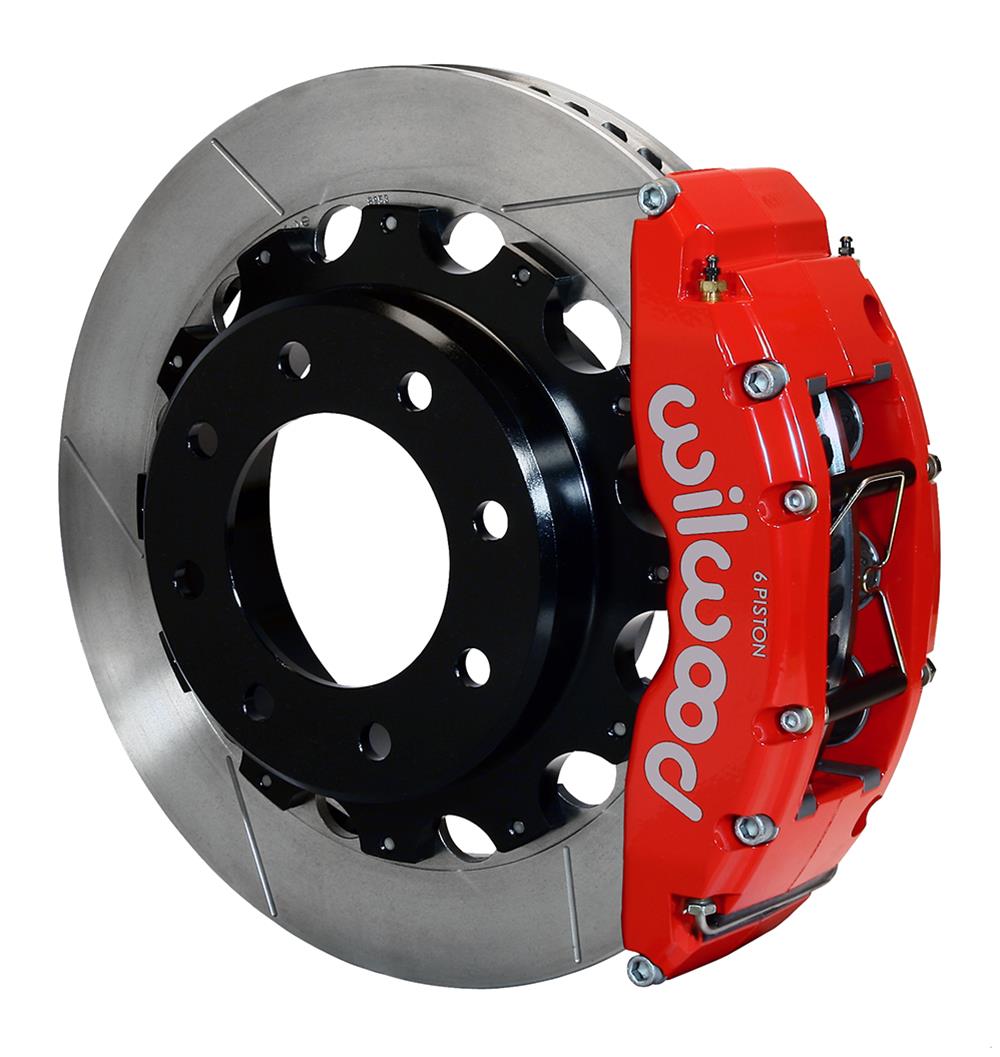

Wilwood TC6R Big Brake truck rear brake kits offer your rig safe stopping. When you're pulling a lot of weight, you need brakes that you can count on to do the job. TC6R truck kits are Wilwood's big brake solution for highly customized and/or modified trucks and SUVs with big wheels. These rear brake kits come with TC6R forged aluminum radial mount calipers with six stainless steel pistons, SmartPads BP-10 compound pads, and oversized SRP or GT rotors matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements of each vehicle. Take control of your big wheels--replace your factory brakes with the safe and sure stopping power of Wilwood TC6R Big Brake truck rear brake kits.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-9406-R
Part Type: Disc Brake Kits
Product Line: Wilwood TC6R Big Brake Truck Rear Brake Kits
HP Direct Part Number: WIL-140-9406-R
UPC: 889545031836
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): 8 x 6.50 in.
Brake Rotor Bolt Pattern (mm): 8 x 165.10mm
Rear Rotor Included: Yes
Rear Rotor Style: Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 16.00 in./406.40mm
Rear Rotor Thickness (in.): 1.38
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Six
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Red
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: Yes
Parking Brake Style: Internal drum
Minimum Recommended Wheel Diameter (in.): 20 in.
Offset (in.): 0.000 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.

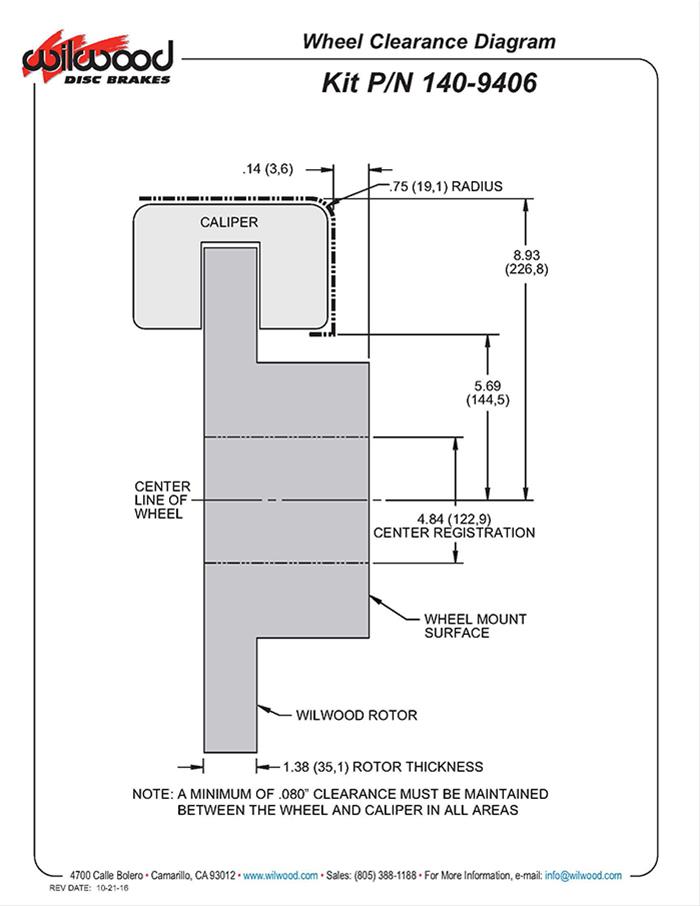

Notes: Fits axle with 4.84 in. center register only.
