Description

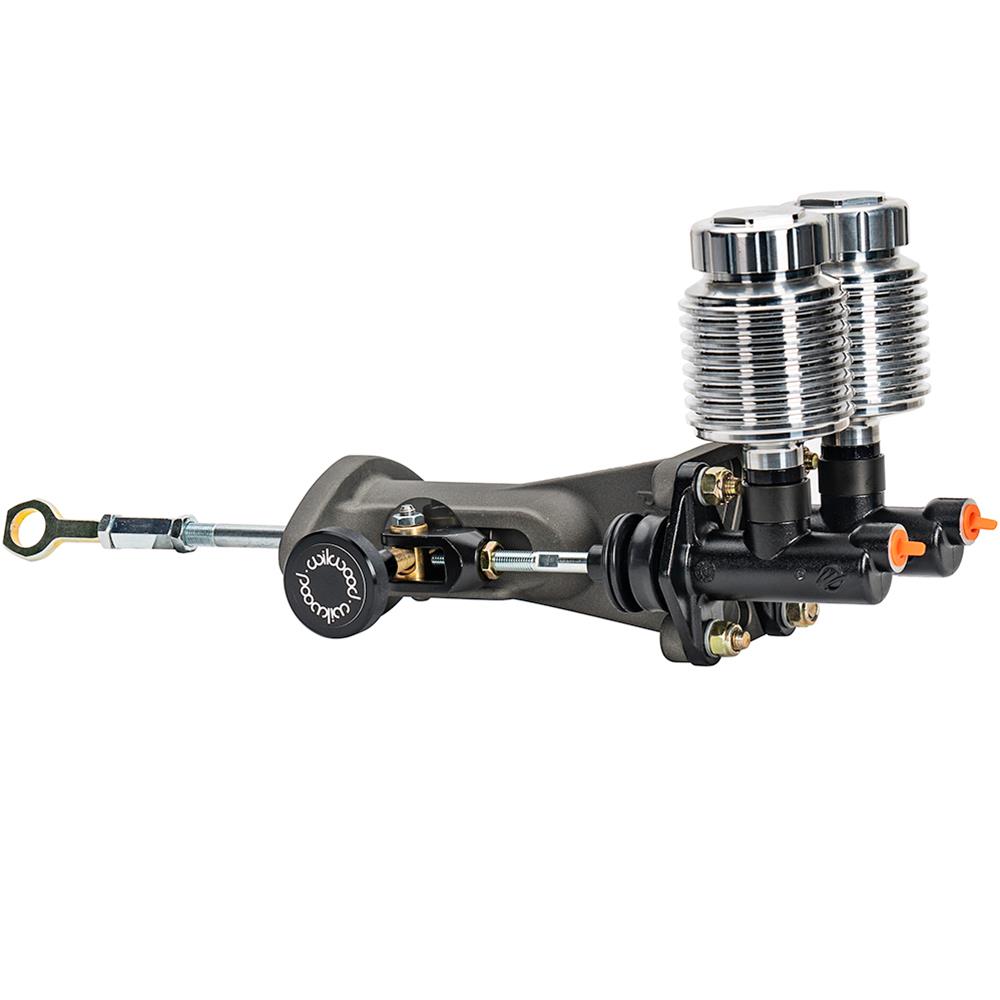

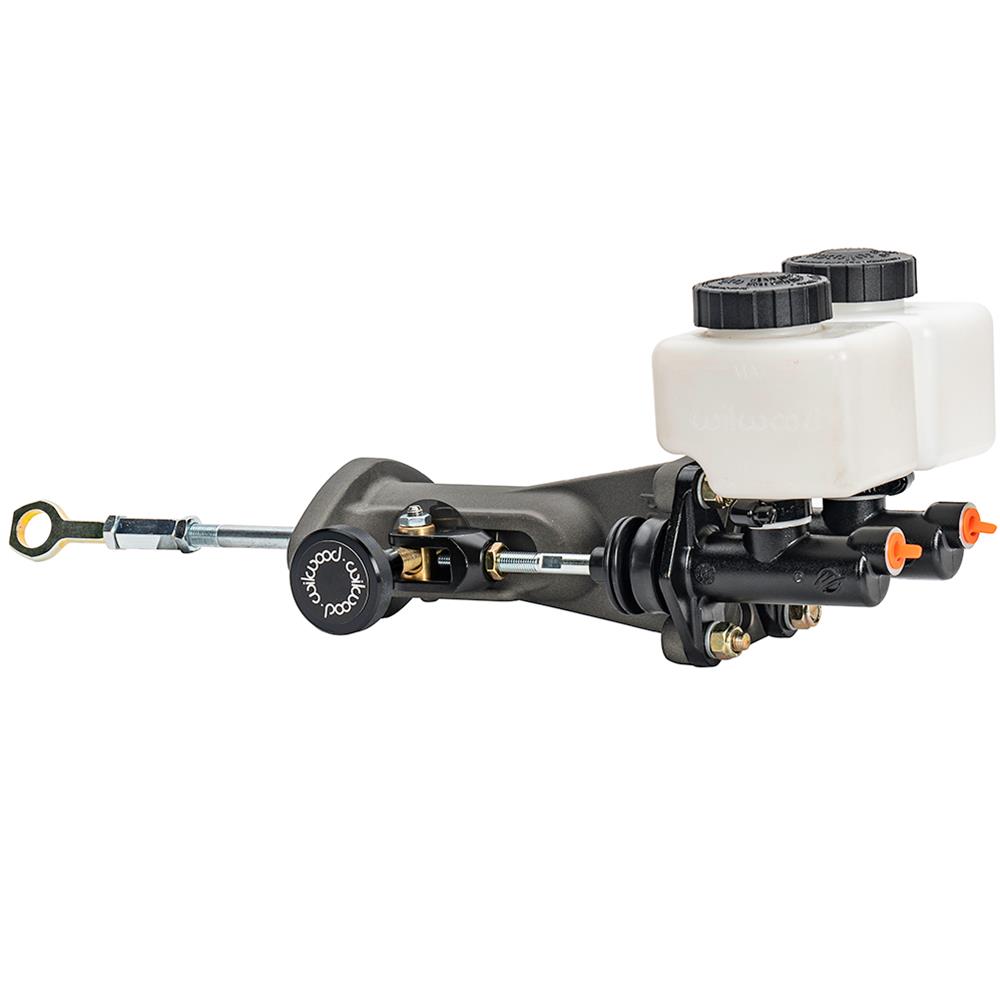

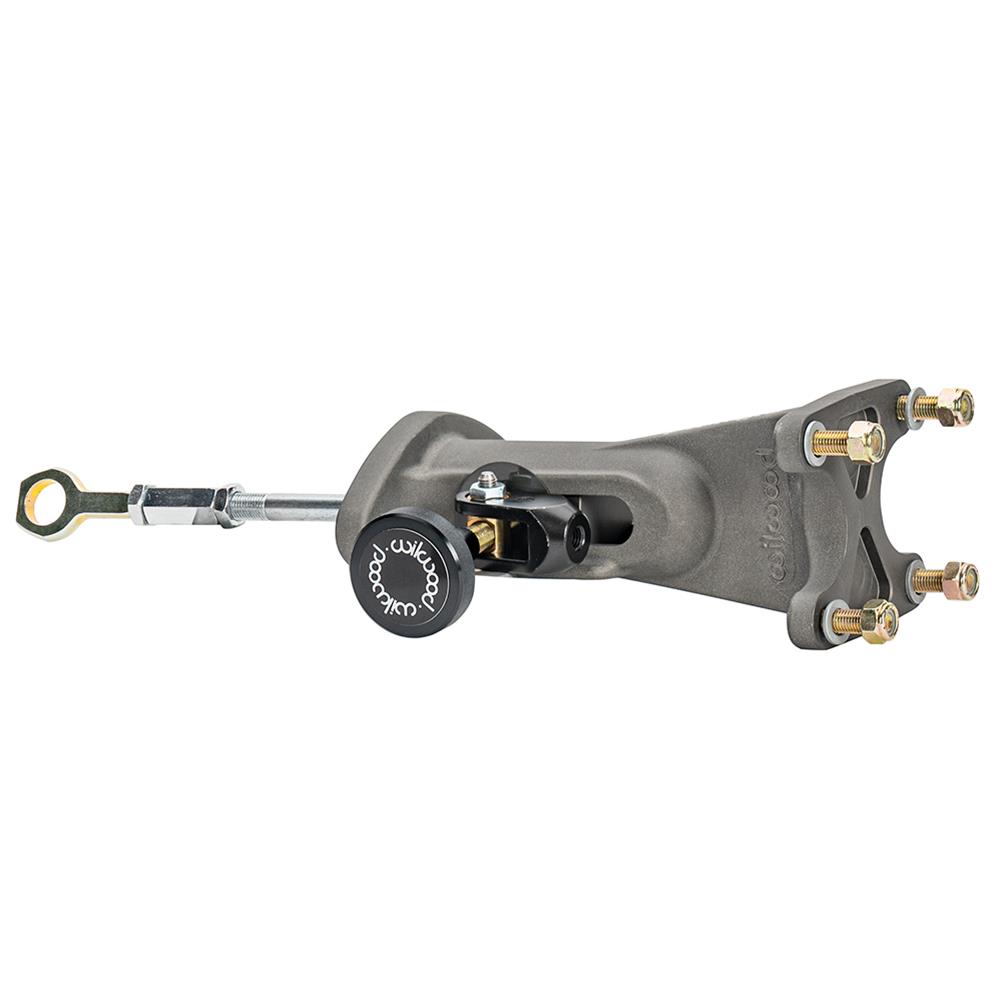

Wilwood tandem mount balance bar assemblies bolt in place of a typical horizontal bolt pattern tandem master cylinder. They provide a sturdy mounting location for two race-type vertical bolt pattern master cylinders, with no custom fabrication needed.
Providing the ultimate in brake bias control for performance and race vehicles, each Wilwood tandem mount assembly has an adjustable balance bar with dual master cylinders. They are available with or without eyelet and are ideal for modified street cars/trucks needing fast and easy brake bias adjustability to optimize braking for different performance driving situations and skillsets. Choose your preferred assembly.
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 340-16928
Part Type: Pedal Assembly Balance Bars
Product Line: Wilwood Tandem Mount Balance Bar Assemblies
HP Direct Part Number: WIL-340-16928
Balance Bar Adjuster Thread Size: 3/8 in.-24
Balance Plate Material: Steel
Balance Plate Color: Natural
Quantity: Sold individually.
Notes: includes pushrod eyelet. Bolts to firewall in place of tandem master cylinder and easily converts tandem master cylinder vehicles to a balance bar bias adjustable setup with individual master cylinders. Designed with oval mounting holes for 3.22 in. to 3.40 in. on center studs for a wide variety of vehicle fitments and mounts dual master cylinders with 2.25†on center vertical bolt holes.
Providing the ultimate in brake bias control for performance and race vehicles, each Wilwood tandem mount assembly has an adjustable balance bar with dual master cylinders. They are available with or without eyelet and are ideal for modified street cars/trucks needing fast and easy brake bias adjustability to optimize braking for different performance driving situations and skillsets. Choose your preferred assembly.
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 340-16928
Part Type: Pedal Assembly Balance Bars
Product Line: Wilwood Tandem Mount Balance Bar Assemblies
HP Direct Part Number: WIL-340-16928
Balance Bar Adjuster Thread Size: 3/8 in.-24
Balance Plate Material: Steel
Balance Plate Color: Natural
Quantity: Sold individually.
Notes: includes pushrod eyelet. Bolts to firewall in place of tandem master cylinder and easily converts tandem master cylinder vehicles to a balance bar bias adjustable setup with individual master cylinders. Designed with oval mounting holes for 3.22 in. to 3.40 in. on center studs for a wide variety of vehicle fitments and mounts dual master cylinders with 2.25†on center vertical bolt holes.
