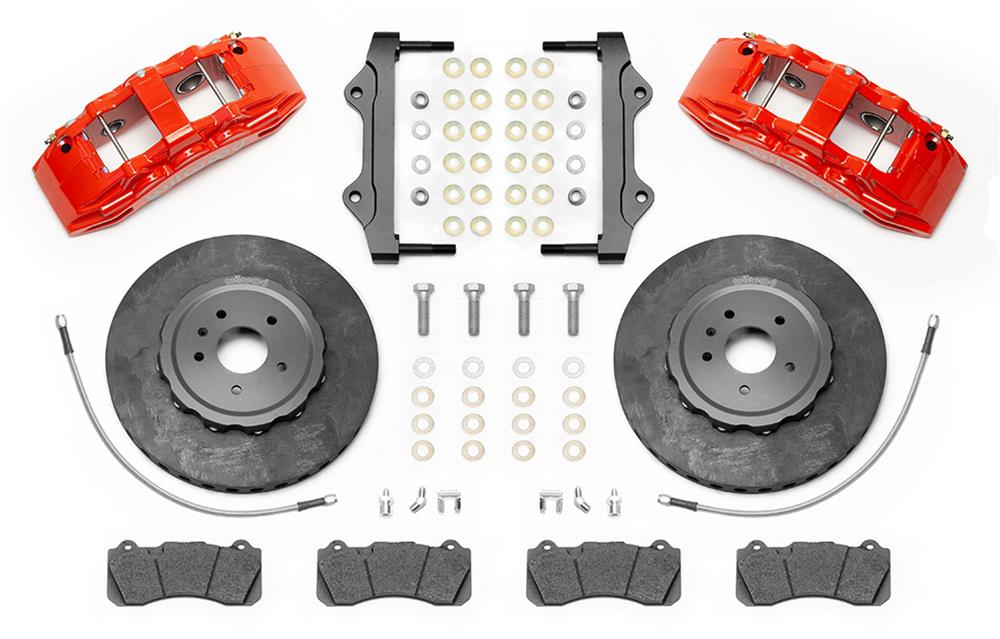

Wilwood SX6R WCCB Carbon-Ceramic Big Brake Front Brake Kits 140-15746-CSICR

Wilwood SX6R front brake kits deliver an extreme performance upgrade—featuring WCCB carbon-ceramic dynamic mount rotors with the exclusive Bobbin Mounting System. They're engineered to maximize braking capacity inside custom wheels. These Big Brake kits offer a simple bolt-on installation, with minor modifications required to the front spindle only, and are fully compatible with ABS and OE master cylinder output.

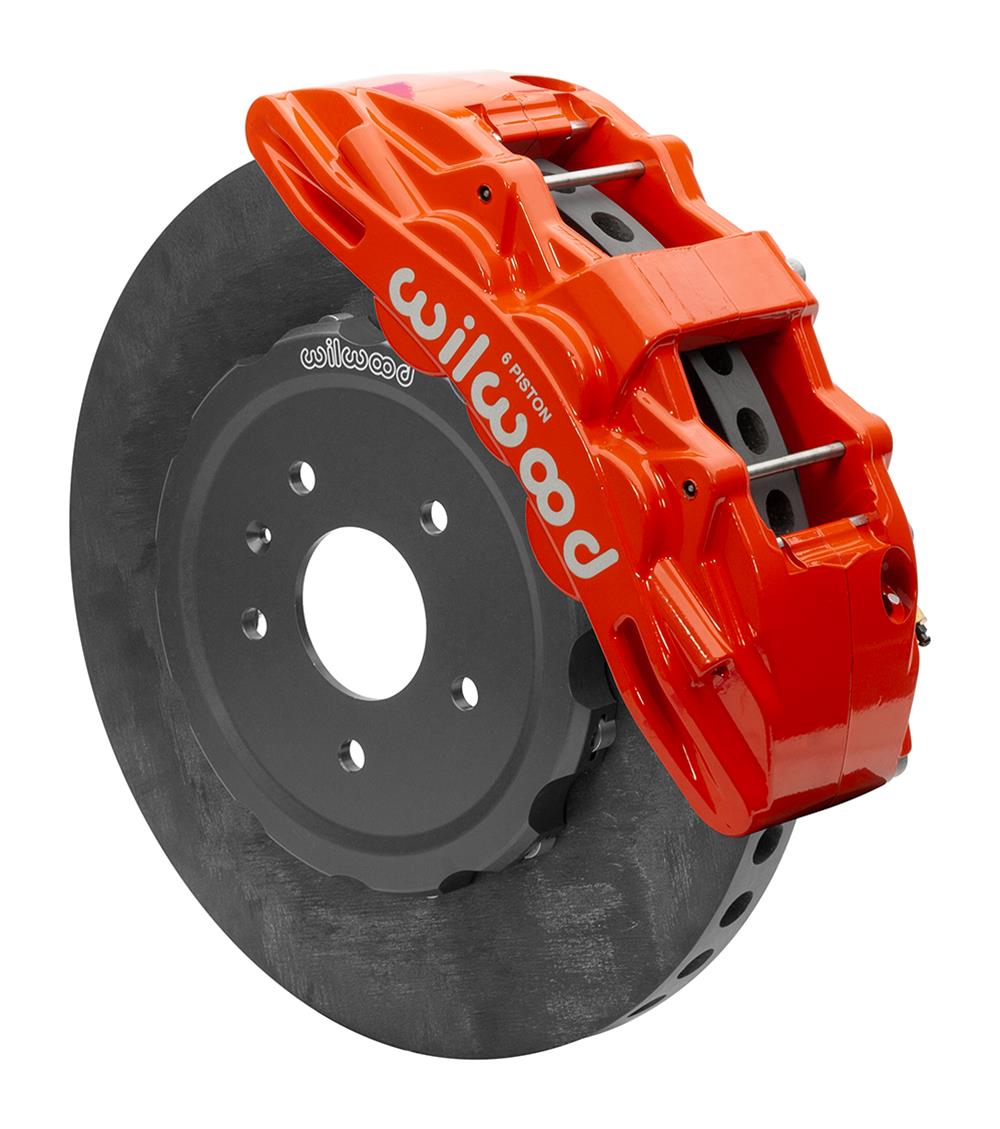

SX6R calipers were designed specifically to provide high-capacity braking with large diameter rotors for extreme-duty and race vehicles. It's the largest dual-purpose caliper Wilwood has produced, assuring big brake performance for street and track vehicles. Kits are available with caliper color options; check fitment on the Application tab.
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-15746-CSICR
Part Type: Disc Brake Kits
Product Line: Wilwood SX6R WCCB Carbon-Ceramic Big Brake Front Brake Kits
HP Direct Part Number: WIL-S0005
Position: Front
Front Rotor Included: Yes
Front Rotor Style: Solid surface
Front Rotor Construction: Vented
Front Rotor Diameter: 15.00 in./381.00mm
Front Rotor Thickness (in.): 1.25 in.
Brake Rotor Bolt Pattern (in.): 5 x 4.75 in.
Brake Rotor Bolt Pattern (mm): 5 x 120.65mm
Rear Rotor Included: No
Front Caliper Included: Yes
Front Caliper Piston Quantity: Six
Front Caliper Material: Forged billet aluminum
Front Caliper Color: Red
Rear Caliper Included: No
Brake Pads Included: Yes
Friction Material Name: Poly-carbon matrix
Parking Brake Provision: No

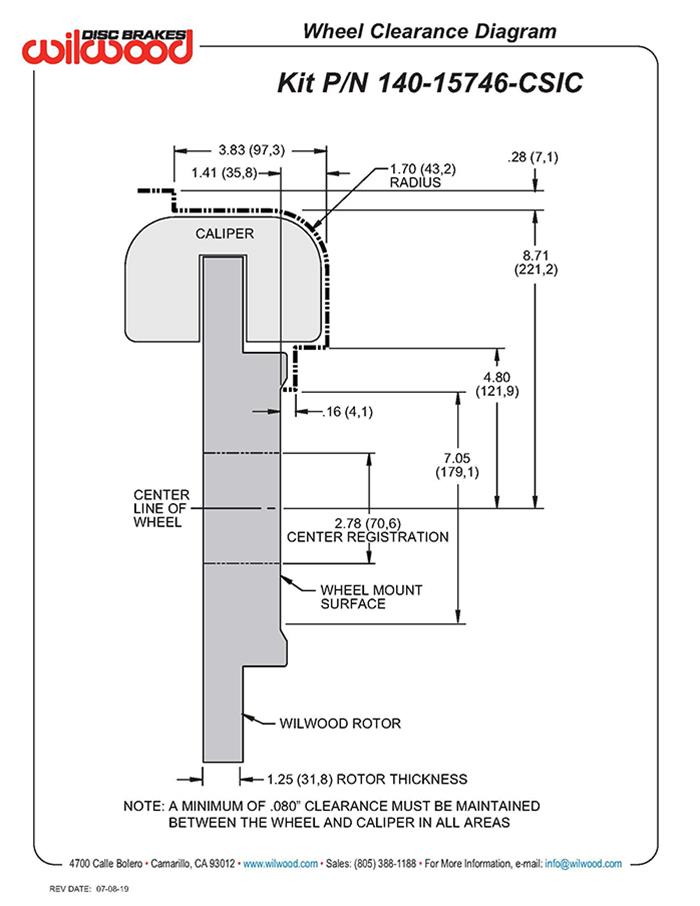

Minimum Recommended Wheel Diameter (in.): 19 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
