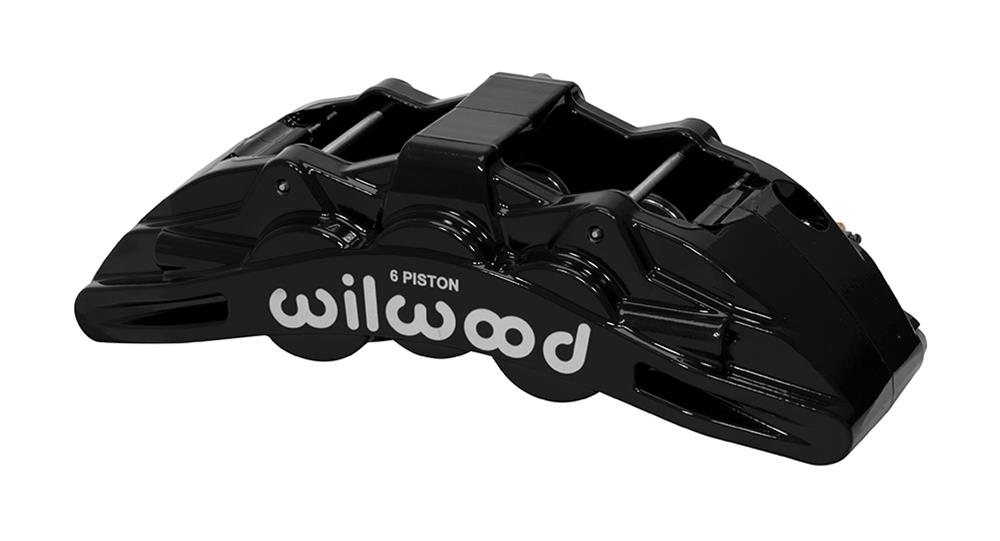

Wilwood SX6R Forged Radial Mount Calipers 120-14863-BK

Wilwood SX6R forged radial mount calipers incorporate race technology into a body design with widespread adaptability to deliver heavy-duty stopping power for the road or track.

Radial mounting, multiple options for piston volume, and a rotor diameter capability ranging of up to 15.00 in., gives the SX6R 6-piston calipers the versatility necessary to suit all types of heavyweight braking requirements. They also incorporate Wilwood's exclusive dust wiper seal that further protects the piston bore from dust and corrosion, allowing the caliper to be used in locales that mandate a method of environmental sealing. The bodies of Wilwood SX6R Series calipers are stress-flow forged from premium aluminum alloy billet--a process that eliminates the stresses and interruptions to the internal grain structure, resulting in superior clamping efficiency and ultimate strength against fatigue, stresses, and distortion under load.
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 120-14863-BK
Part Type: Brake Calipers
Product Line: Wilwood SX6R Forged Radial Mount Calipers
HP Direct Part Number: WIL-120-14863-BK
UPC: 889545084344
Caliper Series: SX6R Radial Mount
Caliper Piston Quantity: Six
Piston Diameter (in.): 1.620/1.120
Rotor Thickness (in.): 1.250 in.
Caliper Material: Aluminum
Caliper Color: Black
Caliper Logo: Wilwood
Parking Brake Provision: No
Fittings Included: No
Fitting Attachment 1: Female threads
Thread Size: 1/8 in. NPT
Brake Pads Included: No
Brackets Included: No
Remanufactured: No
Quantity: Sold individually.
