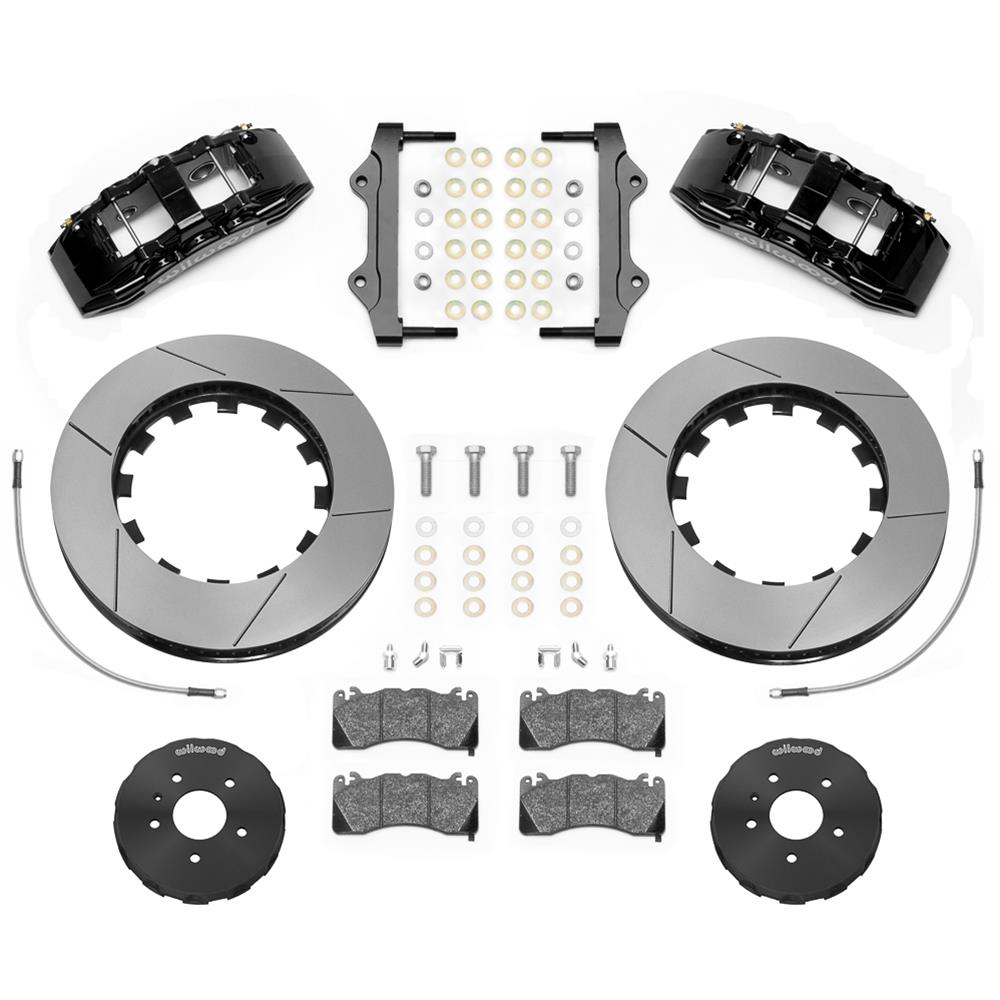

Wilwood SX6R Big Brake Dynamic Front Brake Kits 140-15743

Wilwood offers SX6R Big Brake Dynamic front brake kits in different sizes and rotor styles—such as slotted and cross-drilled/slotted. SX6R calipers were designed specifically to provide high-capacity braking with large diameter rotors for extreme-duty and race vehicles. They're the largest dual-purpose calipers Wilwood has produced, delivering big brake performance for show and dual-purpose street and track vehicles.

These kits offer additional enhanced braking with wheel and tire upgrades—and are fully compatible with OE master cylinder output and ABS function. Directional 72 staggered vane 14.00 to 15.00 in. rotors provide maximum cooling for sustained high-heat durability. And the aluminum calipers are available in multiple colors. Order the front brake kit recommended for your vehicle application.


Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-15743
Part Type: Disc Brake Kits
Product Line: Wilwood SX6R Big Brake Dynamic Front Brake Kits
HP Direct Part Number: WIL-140-15743
UPC: 889545092004
Position: Front
Front Rotor Included: Yes
Front Rotor Style: Slotted surface
Front Rotor Construction: Vented
Front Rotor Diameter: 15.00 in./381.00mm
Front Rotor Thickness (in.): 1.25 in.
Brake Rotor Bolt Pattern (in.): 5 x 4.75 in.
Brake Rotor Bolt Pattern (mm): 5 x 120.65mm
Rear Rotor Included: No
Front Caliper Included: No
Front Caliper Piston Quantity: Six
Front Caliper Material: Forged billet aluminum
Front Caliper Color: Black
Rear Caliper Included: No
Brake Pads Included: Yes
Friction Material Name: PolyMatrix
Parking Brake Provision: No
Minimum Recommended Wheel Diameter (in.): 19 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
