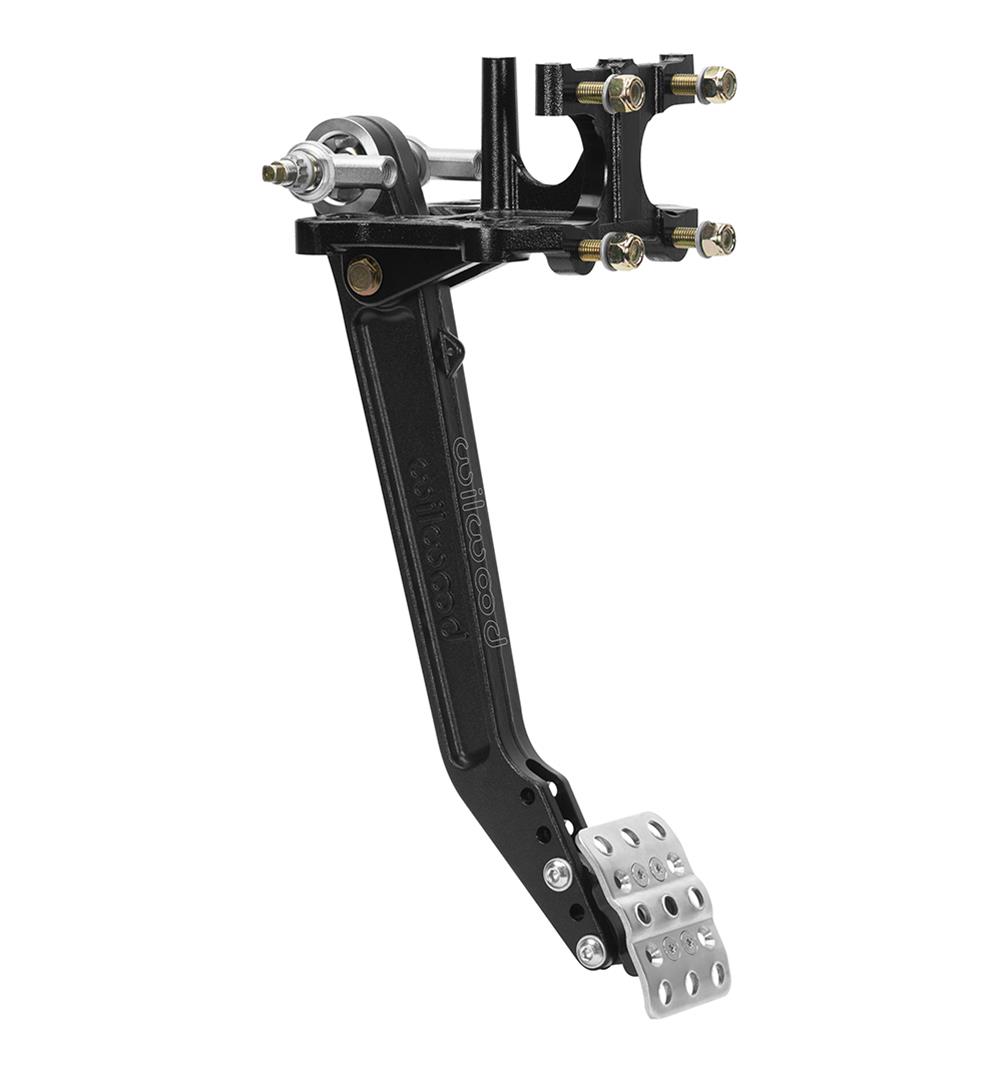

Wilwood Swing Mount Tru-Bar Pedal Assemblies 340-16388

Wilwood offers a selection of forward and reverse mount brake and clutch pedal assemblies engineered to provide superior brake system performance and custom appeal including swing mount Tru-Bar pedal assemblies. They are made from lightweight aluminum with high-strength reinforced I-beam-style forged pedal arms and non-skid waffled pedal pads. These pedal assemblies are equipped with a Tru-Bar balance bar that incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut or used with an optional remote knob for quick on-track adjustments. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments reducing compliance and friction for more accurate brake feel. These Tru-Bar pedals also utilize the same chassis and master cylinder mounting as Wilwood balance bar style pedals. Select the pedal assembly designed for your application needs.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 340-16388
Part Type: Pedal Assemblies
Product Line: Wilwood Swing Mount Tru-Bar Pedal Assemblies
HP Direct Part Number: WIL-340-16388
Pedal Type: Brake
Pedal Mounting Location: Reverse mount
Pedal Pad Included: Yes
Master Cylinder Included: No
Brake Booster Included: No
Throttle Cable Included: No
Pedal Material: Aluminum
Pedal Pad Attachment: Bolt-on
Pedal Pad Material: Aluminum
Pedal Pad Color: Natural
Pedal Color: Black
Brake Pedal Shape: Rectangle
Pedal Ratio: 5.5:1 to 6.25:1
Balance Bar Included: No
Quantity: Sold individually.
