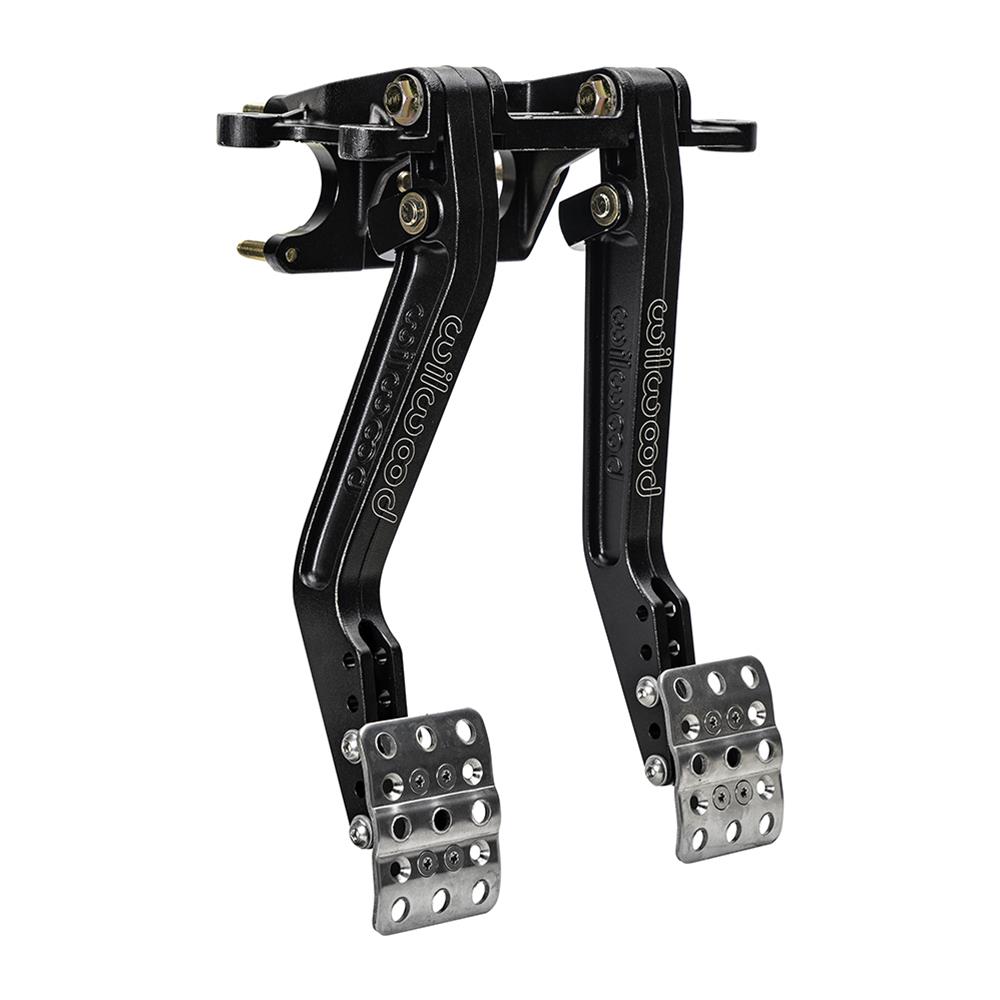

Wilwood Swing Mount Tandem Pedal Assemblies 340-16833

Wilwood offers a selection of forward and reverse mount brake and clutch pedal assemblies engineered to provide superior brake system performance and custom appeal including swing mount tandem pedal assemblies. These pedal assemblies are made from lightweight aluminum with high-strength reinforced I-beam-style forged pedal arms and non-skid waffled pedal pads. They're equipped with a balance bar and a pin/clevis pushrod attachment for precise adjustments and smooth, bind-free operation through the entire range of travel. These assemblies accept a 2.25 in. vertical mount flange single outlet master cylinder for the clutch, and Wilwood 3.25 in. horizontal flange tandem master cylinder for the brakes, available separately in a variety of styles and bore sizes.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 340-16833
Part Type: Pedal Assemblies
Product Line: Wilwood Swing Mount Tandem Pedal Assemblies
HP Direct Part Number: WIL-340-16833
Pedal Type: Brake/Clutch
Pedal Mounting Location: Forward mount
Pedal Pad Included: Yes
Master Cylinder Included: No
Brake Booster Included: No
Throttle Cable Included: No
Pedal Material: Aluminum
Pedal Pad Attachment: Bolt-on
Pedal Pad Material: Aluminum
Pedal Pad Color: Natural
Pedal Color: Black
Brake Pedal Shape: Rectangle
Clutch Pedal Shape: Rectangle
Pedal Ratio: 5.5:1 to 6.25:1
Balance Bar Included: No
Quantity: Sold individually.
