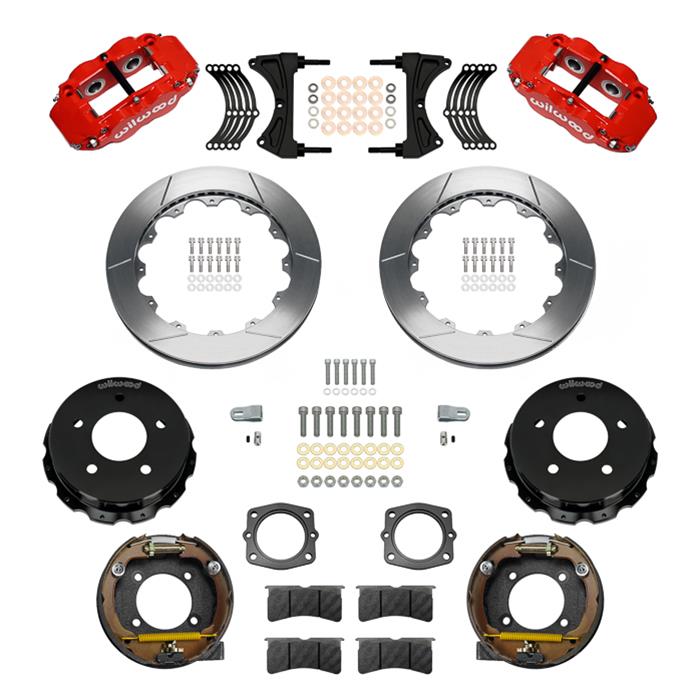

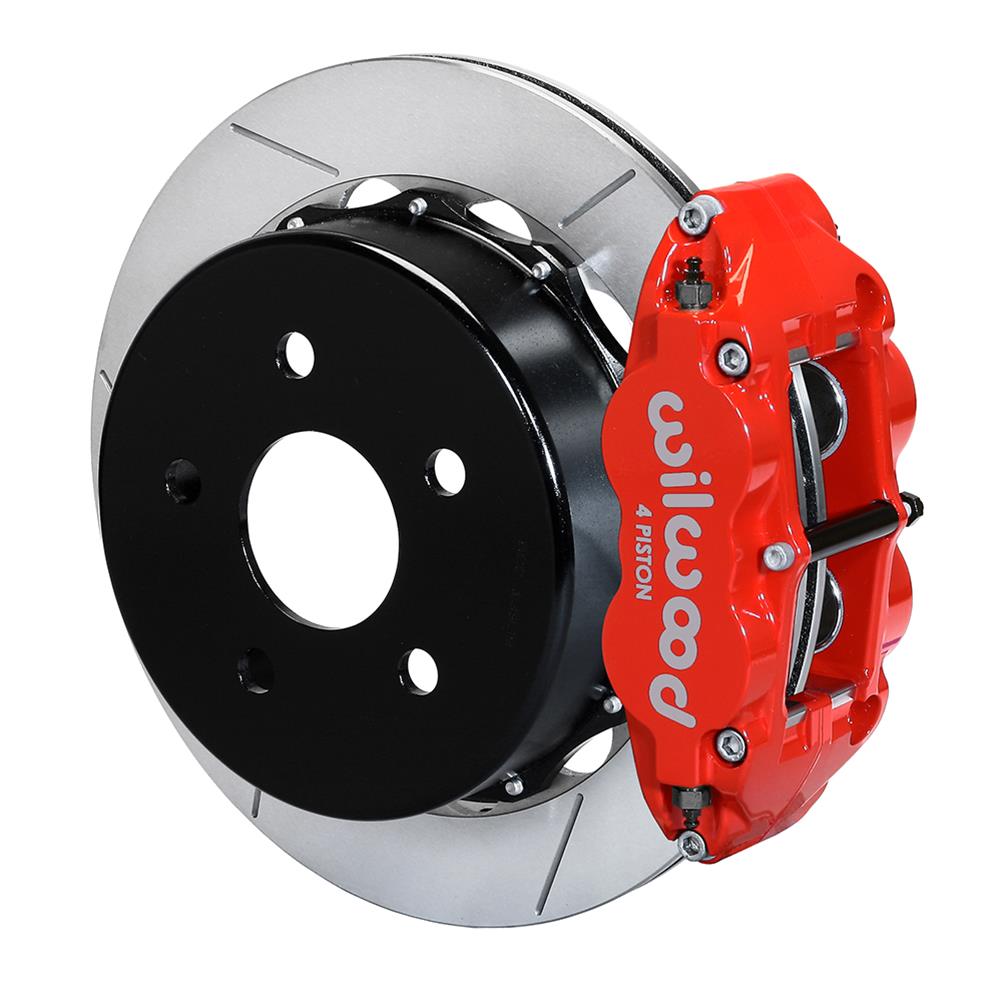

Wilwood Superlite 4R Rear Drum-to-Disc Brake Kits 140-17542-R

Upgrading the brakes on older trucks makes them safer with improved stopping power. Wilwood's new Forged Superlite 4R rear drum-to-disc conversion kits for select Chevy and GMC trucks and SUVs are one of the best upgrades for overall braking performance. You'll experience more brake clamping force, thermal capacity, improved pedal feel, and confidence--from daily street performance to heavy-use applications, including towing, hauling, commercial workloads, and off-road. Kits include internal parking brake assemblies. Rotors are available with a solid or cross-drilled/slotted surface.

Kits feature:

* Complete bolt-on installation using Wilwood's decades of experience in performance, off-road, and competitive motorsports
* Compatible with Wilwood front kits, factory ABS systems and OE master cylinder

--- Calipers: Superlite
• 12.88 in. and 14.00 in. rear kits feature Wilwood's motorsports-proven rigid Superlite four piston calipers
* Stainless steel pistons are housed in Type-III hard anodized bores with high-temperature seals for durability
* Internal drum parking brakes retain OE feature

--- Rotors: ULHP, Spec37 GT or SRP Drilled
• 12.88 in. x 1.10 in. kit features Spec37 two-piece rotors with 48 curved vanes are E-coated in GT slotted or SRP drilled and slotted
• 14.00 in. x 1.10 in. kit features Spec37 two-piece rotors with 72 curved vanes are E-coated in GT slotted or SRP drilled and slotted

--- Brake pads: BP-10 street performance pads provide smooth and consistent response with long wear over a broad range of temperatures (other compounds available)

--- Installation parts: Caliper brackets, parking brake cable connection kit, and premium-grade installation hardware included
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-17542-R
Part Type: Disc Brake Kits
Product Line: Wilwood Superlite 4R Rear Drum-to-Disc Brake Kits
HP Direct Part Number: WIL-140-17542-R
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): 5 x 5.00 in.
Brake Rotor Bolt Pattern (mm): 5 x 127.00mm
Differential Case Design Type: GM 8.5/9.5 in.
Rear Rotor Included: Yes
Rear Rotor Style: Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 12.88 in./327.15mm
Rear Rotor Thickness (in.): 1.10
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Red
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: Yes
Parking Brake Style: Internal drum
Minimum Recommended Wheel Diameter (in.): 17 in.
Offset (in.): 3.250 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
