Description

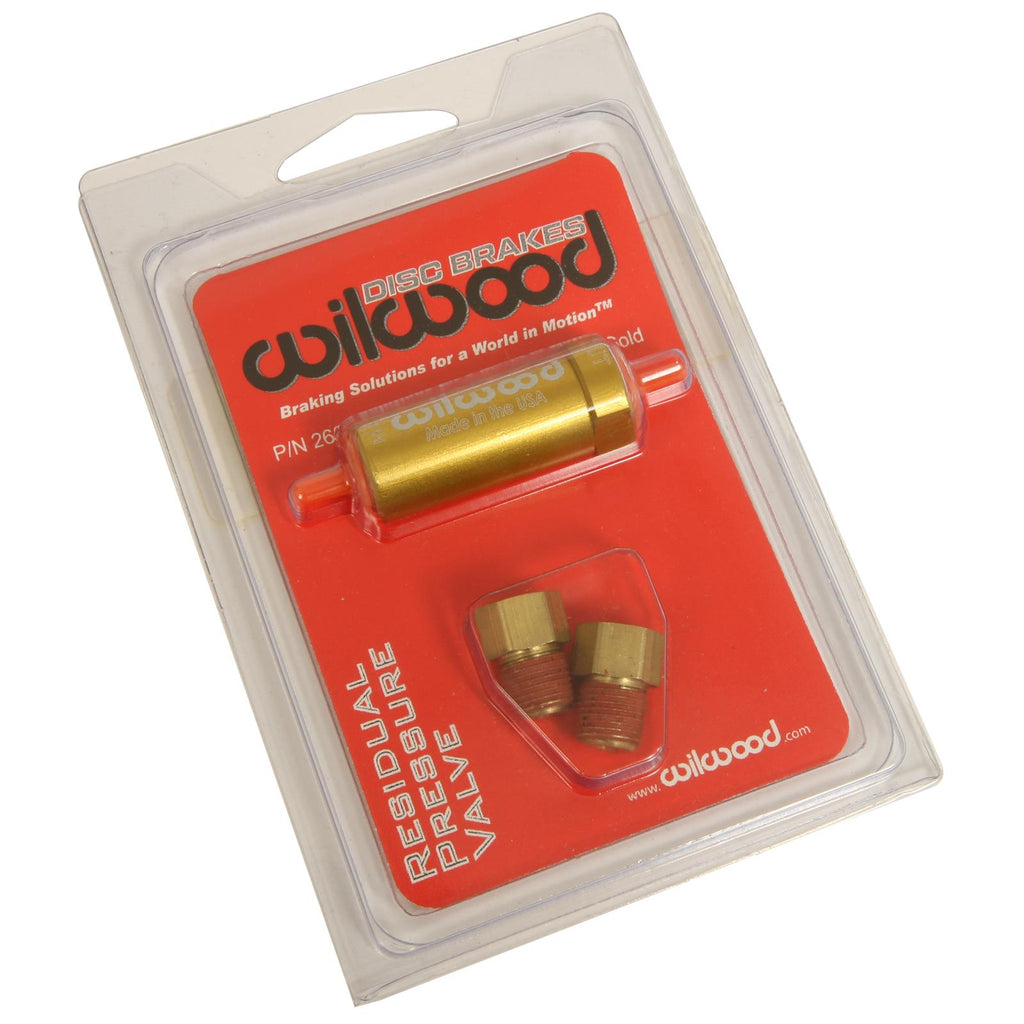

Ideal for drag racing, street rods, and many off-road applications, inline residual pressure valves from Wilwood retain a minimum brake line pressure to help eliminate excessive pedal travel. These 2 lb. valves are used in disc brake applications where the master cylinder is mounted below the horizontal plane of the calipers--in other words, where fluid drainback occurs, causing excessive brake drag. With drum brakes, 10 lb. valves are used to compensate for return spring tension in the drums. Wilwood residual pressure valves are made from billet aluminum and color-coded for easy identification.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 260-15366
Part Type: Residual Pressure Valves
Product Line: Wilwood Residual Pressure Valves
HP Direct Part Number: WIL-260-15366
UPC: 889545087055
Brake Line Pressure Retained (psi): 4 psi
Residual Valve Finish: Gold anodized
Fitting Attachment 1: Female NPT
Fitting Size 1: 1/8 in. NPT
Fitting Attachment 2: Female NPT
Fitting Size 2: 1/8 in. NPT
Adapters Included: No
Quantity: Sold individually.
Notes: Includes 1/8-27 in. NPT to 3/8-24 in. inverted flare female fittings that will fit most domestic 3/16 diameter brake lines.
Manufacturer's Part Number: 260-15366
Part Type: Residual Pressure Valves
Product Line: Wilwood Residual Pressure Valves
HP Direct Part Number: WIL-260-15366
UPC: 889545087055
Brake Line Pressure Retained (psi): 4 psi
Residual Valve Finish: Gold anodized
Fitting Attachment 1: Female NPT
Fitting Size 1: 1/8 in. NPT
Fitting Attachment 2: Female NPT
Fitting Size 2: 1/8 in. NPT
Adapters Included: No
Quantity: Sold individually.
Notes: Includes 1/8-27 in. NPT to 3/8-24 in. inverted flare female fittings that will fit most domestic 3/16 diameter brake lines.
