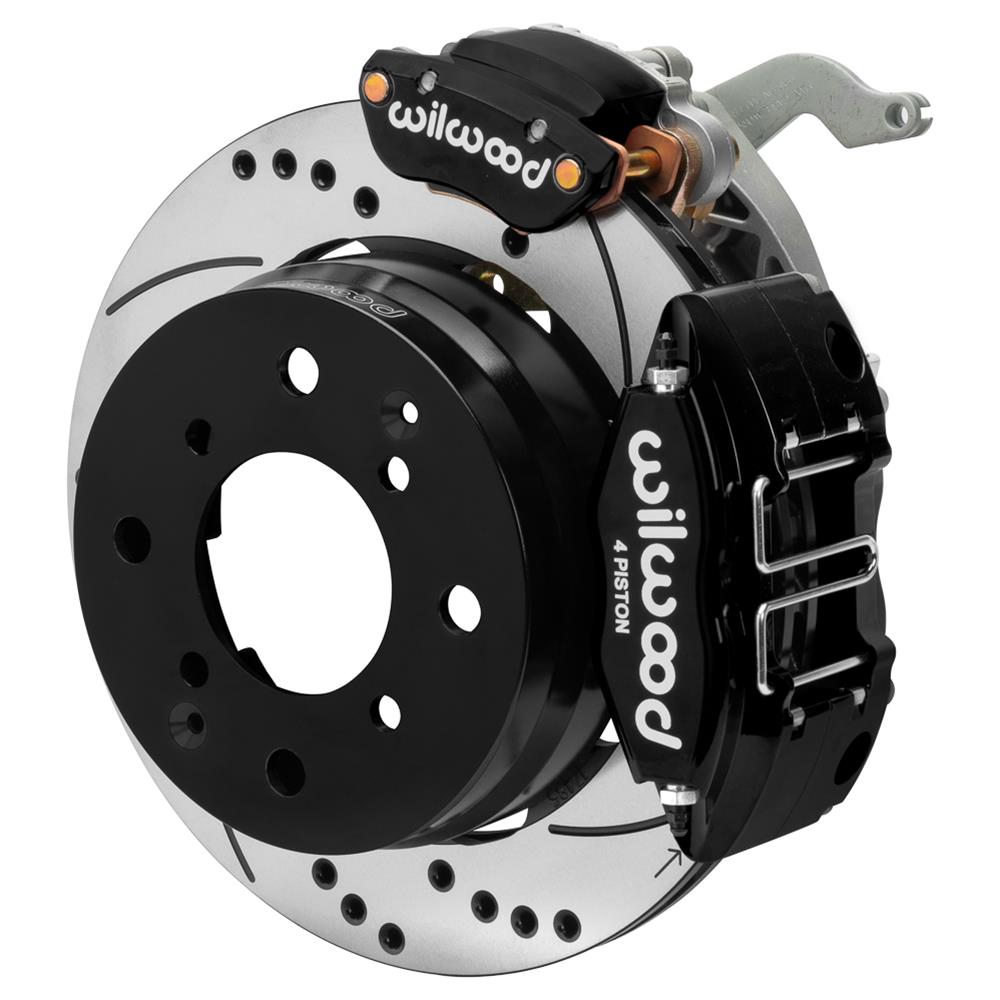

Wilwood Powerlite Rear Parking Brake Kits 140-17475-D

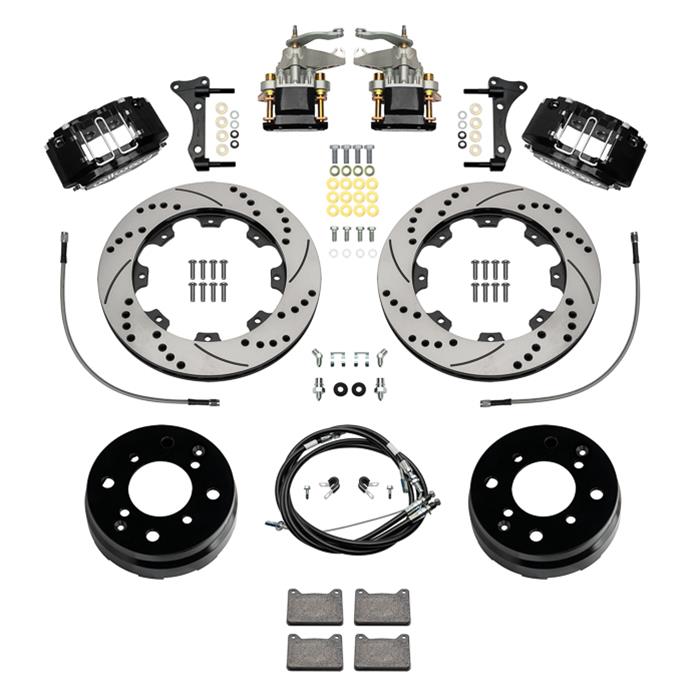

Wilwood Powerlite rear MC4 parking brake kits allow an easy upgrade to 4-piston Powerlite calipers. The kits are available with red or black powdercoated calipers with GT slotted or SRP drilled and slotted rotors. They utilize the stock rear upright mounting, and contain aluminum hubs, 2-piece rotor and hat assemblies, and BP-10 performance pads. Wilwood kits come complete with hardware, parking brake cable, and stainless steel flex lines.

Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-17475-D
Part Type: Disc Brake Kits
Product Line: Wilwood Powerlite Rear Parking Brake Kits
HP Direct Part Number: WIL-140-17475-D
Position: Rear
Disc Brake Kit Type: Power assist
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): 4 x 5.12 in.
Brake Rotor Bolt Pattern (mm): 4 x 130.00mm
Rear Rotor Included: Yes
Rear Rotor Style: Cross-drilled/Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 12.00 in./304.80mm
Rear Rotor Thickness (in.): 0.81
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Aluminum
Rear Caliper Color: Black
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: Yes
Parking Brake Style: Mechanical caliper

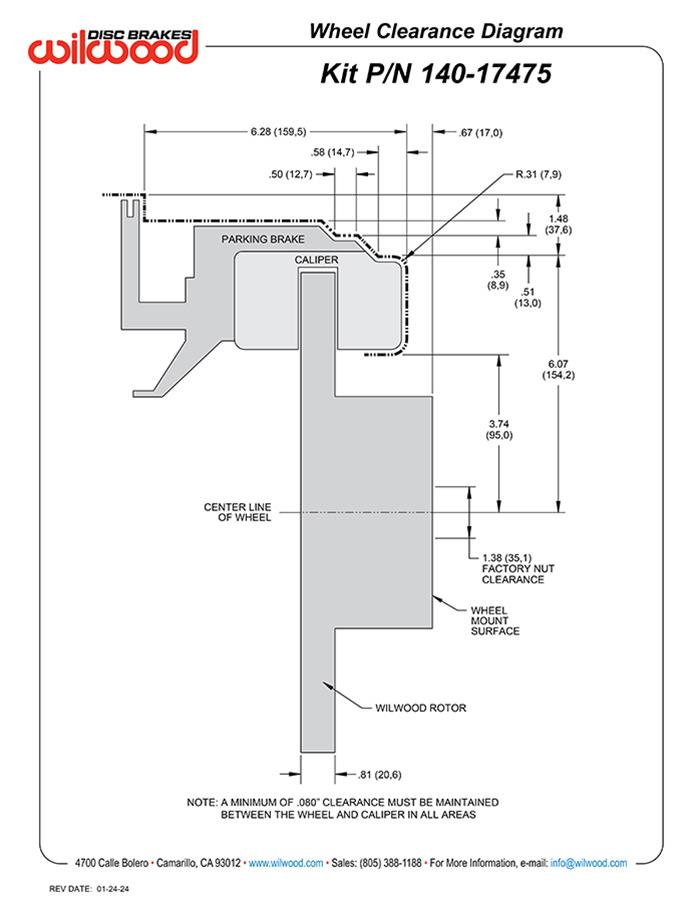

Minimum Recommended Wheel Diameter (in.): 15 in.
Offset (in.): 0.000 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: Yes
Quantity: Sold as a kit.
Notes: Kits are designed to be used with the factory spindle/upright assembly and require the use of the 914-6 or 911, 19mm master cylinder.
