Wilwood Powerlite Calipers 120-8728

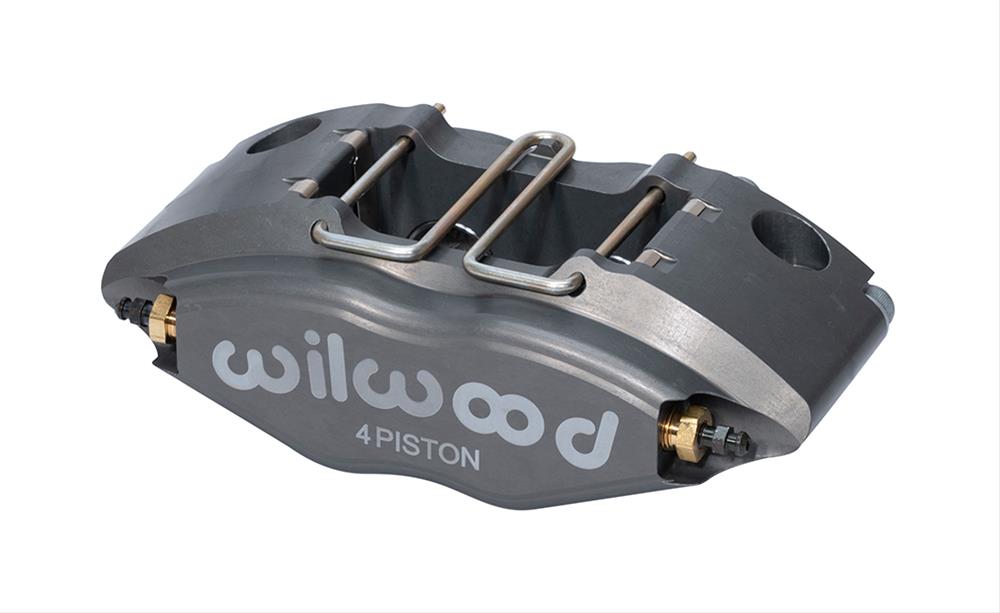

Powerlite 4-piston radial mount calipers combine pure race technology with a new generation of Wilwood performance enhancements. Their sleek profile, superior strength, and durability in higher temperature applications are easily adapted to a wide range of sports, rally, and off-road driving applications. The strength of the Powerlites is a combination of process and design. The process of stress-flow forging re-aligns the metal's grain structure within the contour of the caliper body. This eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. Their FEA-generated radial transition design eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. Incorporating a radius in this critical area substantially increases resistance to deflection and caliper separation under load. Structural deflection and volume displacement tests have proven the efficiency of this innovative design. Without even considering the overall greater strength and reliability of the billet forging, the reduction in overall deflection and fluid volume displacement translate into increased clamping efficiency with less pedal travel. The bottom line is a firm pedal with outstanding stopping power.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 120-8728
Part Type: Brake Calipers
Product Line: Wilwood Powerlite Calipers
HP Direct Part Number: WIL-120-8728
UPC: 889545006346
Caliper Series: Powerlite
Caliper Piston Quantity: Four
Piston Diameter (in.): 1.250
Rotor Thickness (in.): 0.790/0.860 in.
Caliper Material: Aluminum
Caliper Color: Gray/Silver
Caliper Logo: Wilwood
Parking Brake Provision: No
Fittings Included: No
Fitting Attachment 1: Female threads
Thread Size: 1/8 in. NPT
Brake Pads Included: No
Brackets Included: No
Remanufactured: No
Quantity: Sold individually.
