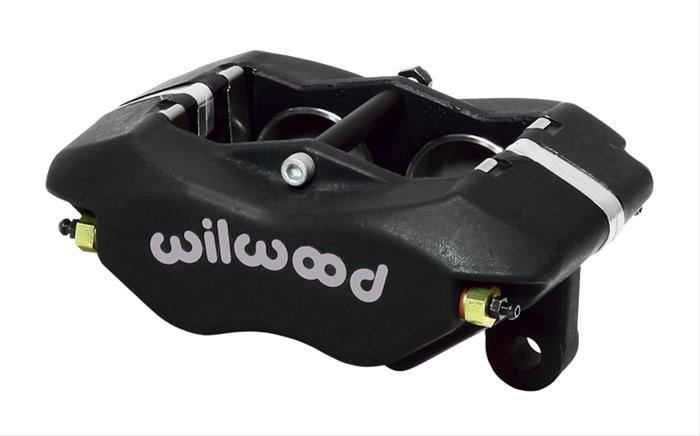

Wilwood Narrow-Mount Dynalite Brake Calipers 120-11571-SI

Wilwood narrow-mount Dynalite brake calipers, or NDL's, feature an FEA-generated radial transition design that eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. This design substantially increases resistance to deflection and caliper separation under severe loads. These narrow-mount Dynalite brake calipers are equipped with Wilwood's SRS stainless steel bridge wear plates, which are designed to eliminate bridge wear caused by pad gouging and extend the service life of the caliper. Internal fluid passages get rid of the need for external tubes. Four-corner bleed screws ensure simple and effective air evacuation from the system. Their high-luster Type III Mil-Spec hard anodized finish, stainless steel pistons, and high-temperature seals make Wilwood narrow-mount Dynalite brake calipers the perfect choice for your late model, modified, Sprint, off-road, or road-racing vehicle. Order the model designed for your vehicle's application.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 120-11571-SI
Part Type: Brake Calipers
Product Line: Wilwood Narrow-Mount Dynalite Brake Calipers
HP Direct Part Number: WIL-120-11571-SI
UPC: 889545001518
Caliper Series: Dynalite
Caliper Piston Quantity: Four
Piston Diameter (in.): 1.750
Rotor Thickness (in.): 0.380 in.
Caliper Material: Aluminum
Caliper Color: Gray/Silver
Caliper Logo: Wilwood
Parking Brake Provision: No
Fittings Included: No
Fitting Attachment 1: Female threads
Thread Size: 1/8 in. NPT
Brake Pads Included: No
Brackets Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Side inlet.
