Wilwood Master Cylinder Firewall Mounting Plates 250-13167

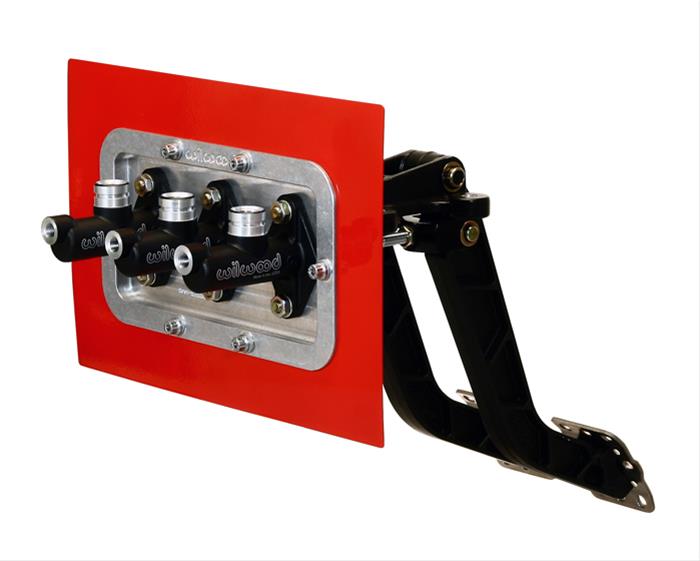

Wilwood master cylinder firewall mounting plates are specifically designed to work with Wilwood's forward mount brake and clutch pedal assembly, and flange-mounted compact remote master cylinders. They allow precision mounting of the pedal and master cylinders to the firewall, leaving the engine compartment with a high-tech, professionally installed look. These plates recess the master cylinder mounting surface by 1/4 in., which allows for more clearance in the engine bay. Both the engine compartment faceplate and interior side mounting plate are media burnished billet aluminum. Wilwood master cylinder firewall mounting plates are designed to accept a firewall material thickness range of .040-.080 in. Corrosion-resistant stainless steel 12 pt. fasteners and detailed instructions are included to complete the installation.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 250-13167
Part Type: Master Cylinder Mounting Plates
Product Line: Wilwood Master Cylinder Firewall Mounting Plates
HP Direct Part Number: WIL-250-13167
UPC: 889545064094
Master Cylinder Usage: Brake/Clutch
Mounting Plate Length: 8.000 in.
Mounting Plate Height: 4.000 in.
Mounting Plate Material: Aluminum
Mounting Plate Finish: Natural
Mounting Hardware Included: Yes
Quantity: Sold individually.
Notes: Designed for use with Wilwood's forward mount brake and clutch pedal assemblies.
