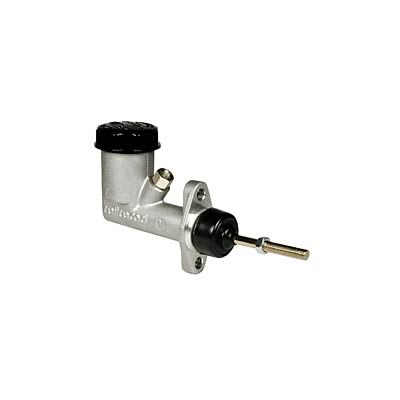

Wilwood Integral Reservoir Compact Master Cylinders 260-6579

Wilwood integral reservoir compact master cylinders are the perfect solution where there's limited space for the master cylinder and fluid reservoir. This popular lightweight, compact design is used for clutch and small master cylinder requirements and is well-known for its dependability. The cylinders incorporate an improved plastic screw-on filler cap, which protects the fluid in the 1.4 oz. reservoir--and are available in several bore sizes with a full 1.4 in. of stroke to accommodate short pedal ratios and hydraulic clutch actuation on space limited applications.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 260-6579
Part Type: Master Cylinders
Product Line: Wilwood Integral Reservoir Compact Master Cylinders
HP Direct Part Number: WIL-260-6579
UPC: 889545067842
Master Cylinder Usage: Brake/Clutch
Master Cylinder Bore Size: 0.700 in.
Power Brake Compatible: No
Outlet Quantity: 1
Outlet Size 1: 3/8 in.-24
Master Cylinder Material: Aluminum
Master Cylinder Finish: Natural
Bowl Design: Single
Mounting Hole Quantity: 2 holes
Mounting Flange Center to Center Distance (in.): 2.250
Master Cylinder Stroke: 1.400 in.
Remote Reservoir: No
Reservoir Included: Yes
Reservoir Material: Aluminum
Reservoir Color: Natural
Master Cylinder Cap Included: Yes
Pushrod Included: Yes
Mounting Brackets Included: No
Hardware Included: No
Remanufactured: No
Quantity: Sold individually.
