Description

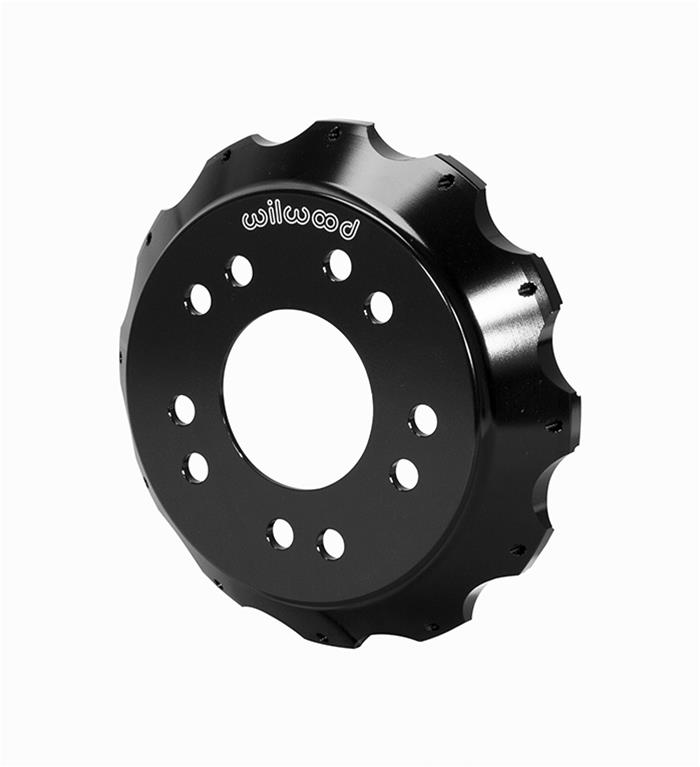

These Wilwood HD fixed mount brake rotor hats are manufactured from a premium-grade aluminum alloy offering high strength, low weight, and show-quality appeal. They feature straight bell construction with a flanged rotor mount ring. These rotor hats provide maximum radial clearance between the caliper body and the hats. They require the use of the correct Wilwood rotor bolt pattern for installation.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 170-14209
Part Type: Brake Rotor Hats
Product Line: Wilwood HD Fixed Mount Brake Rotor Hats
HP Direct Part Number: WIL-170-14209
UPC: 889545077346
Brake Rotor Hat Type: 1/4-28 in. threaded hole
Brake Rotor Hat Material: Aluminum
Brake Rotor Hat Color: Black
Brake Rotor Hat Bolt Circle: 12 x 8.75 in.
Brake Rotor Hat Offset (in.): 1.38
Brake Rotor Hat Stud Hole Diameter (in.): 0.52
Brake Rotor Hat Center Hole I.D. (in.): 3.06
Brake Rotor Hat Face Thickness (in.): 0.25
Quantity: Sold individually.
Notes: This Big Brake, flared bell hat features a 6.58 in. clearance inside diameter, dual bolt circles (see the Applications section), and a counterbored center hole.
Manufacturer's Part Number: 170-14209
Part Type: Brake Rotor Hats
Product Line: Wilwood HD Fixed Mount Brake Rotor Hats
HP Direct Part Number: WIL-170-14209
UPC: 889545077346
Brake Rotor Hat Type: 1/4-28 in. threaded hole
Brake Rotor Hat Material: Aluminum
Brake Rotor Hat Color: Black
Brake Rotor Hat Bolt Circle: 12 x 8.75 in.
Brake Rotor Hat Offset (in.): 1.38
Brake Rotor Hat Stud Hole Diameter (in.): 0.52
Brake Rotor Hat Center Hole I.D. (in.): 3.06
Brake Rotor Hat Face Thickness (in.): 0.25
Quantity: Sold individually.
Notes: This Big Brake, flared bell hat features a 6.58 in. clearance inside diameter, dual bolt circles (see the Applications section), and a counterbored center hole.
