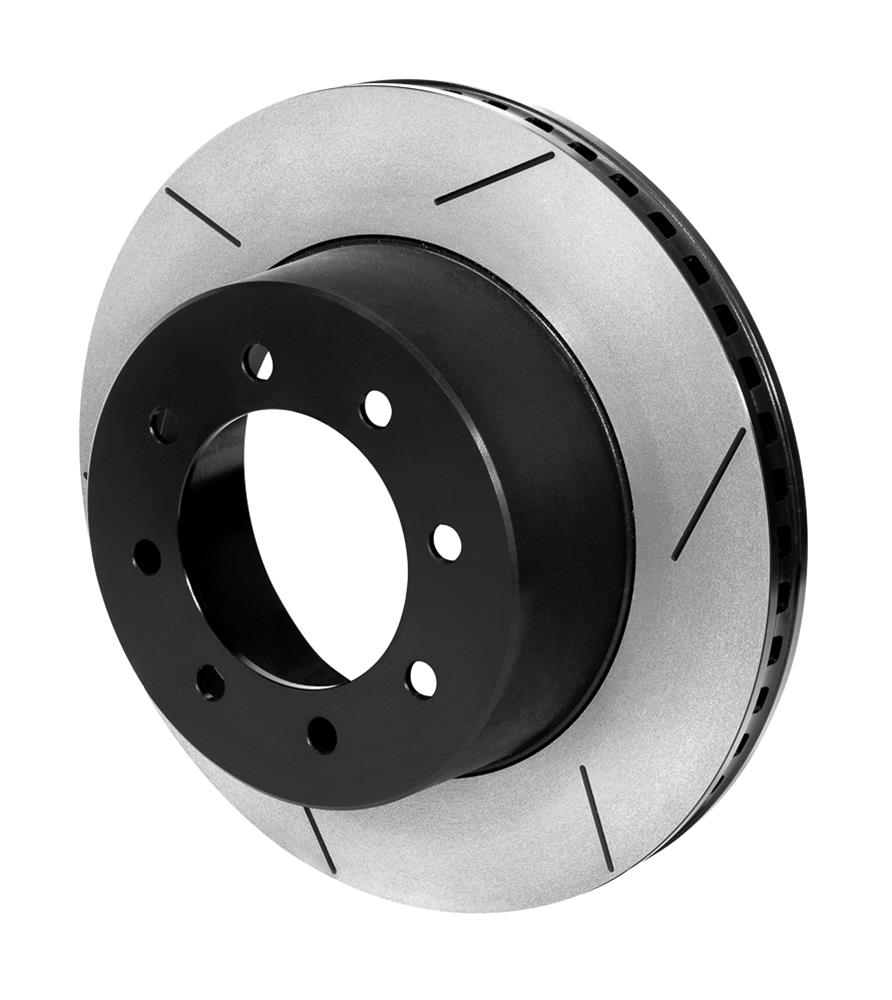

Wilwood GT Series Vented Rotors and Hats 160-14563-GTB

Wilwood GT Series vented rotors and hats feature a design built for the extreme conditions of professional motorsports. Their superior heat absorption and dissipation characteristics include heavy-wall, multi-vane rotors as the key to preventing heat fade. This leads to long service life for the rotors and pads. All the rotors in this series get cast from premium grade, long grain carbon iron for long wear, thermal stability, and resistance to distortion. Order the Wilwood GT Series vented rotors and hats best suited for your application.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 160-14563-GTB
Part Type: Brake Rotors
Product Line: Wilwood GT Series Vented Rotors and Hats
HP Direct Part Number: WIL-160-14563GTB
UPC: 889545081633
Intended for Street Use: No
For Use with Stock Calipers: No
Rotor Construction: Vented
Rotor Style: Slotted surface
Rotor Outside Diameter (in.): 15.50 in.
Brake Rotor Bolt Pattern (mm): 8 x 170.00mm
Nominal Thickness (in.): 1.380
Nominal Thickness (mm): 35.05
Rotor Material: Iron
Rotor Finish: Black E-Coat
Quantity: Sold individually.
Notes: Features include a 48-vane design, 2.920 in. offset, 11.05 in. far side inside diameter, 9.06 in. shoe inside diameter, 7.99 in. clearance inside diameter, holes for a 0.64 in. stud diameter, and a 0.31 in. face thickness.
