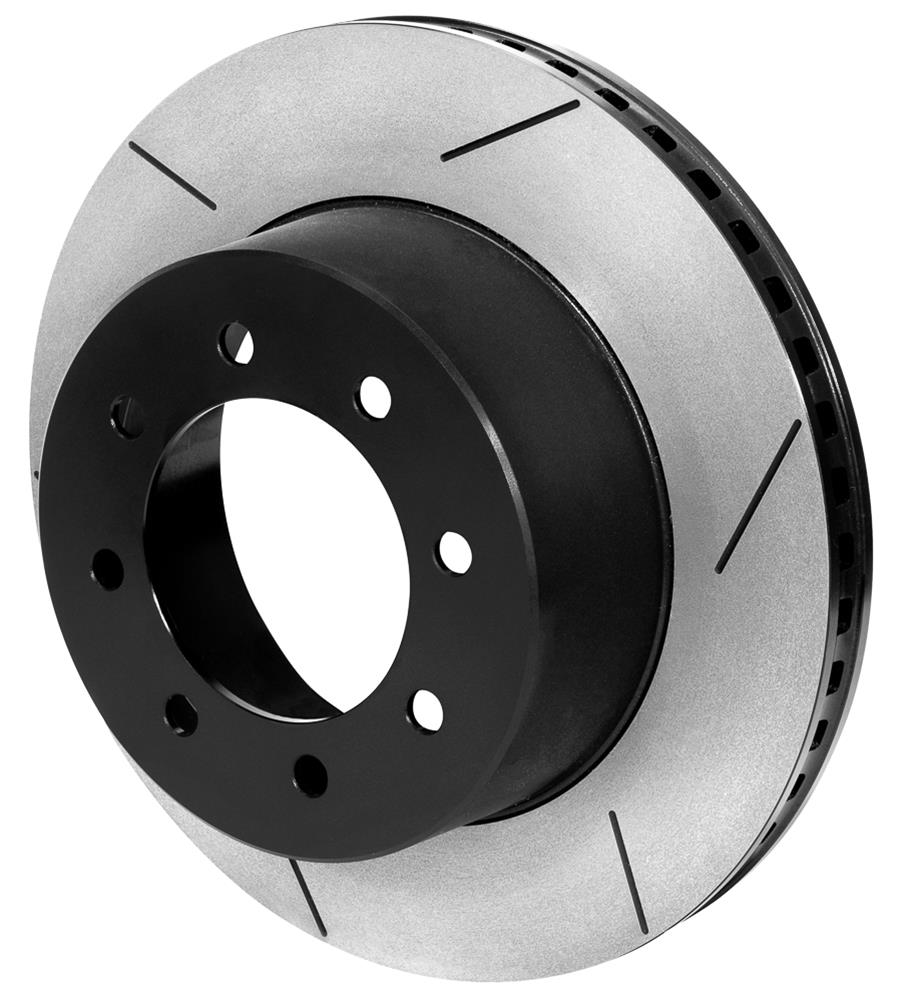

Wilwood GT Rotor & Lug Drive Hat Assemblies 160-15384-GTB

Wilwood GT rotor and lug drive hat assemblies are pre-assembled packages of Wilwood's latest and greatest technology and design. The lug-drive rotor mounting system eliminates the rotor bolts and instead, a large single internal snap-ring retains the rotor in the hat. This system allows the rotors to move independently of the hats as they expand and contract through heat cycles. All thermally generated stress is removed from the rotor attachment points. The rotors stay flatter and run truer. They are paired with GT 72 Curved Vane Spec-37 rotors that are manufactured from a proprietary iron alloy developed to withstand extreme temperatures—with the highest possible degree of resistance against distortion, warping, cracking, and wear. Left and right side assemblies are available separately.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 160-15384-GTB
Part Type: Brake Rotors
Product Line: Wilwood GT Rotor & Lug Drive Hat Assemblies
HP Direct Part Number: WIL-160-15384GTB
UPC: 889545087482
Intended for Street Use: No
For Use with Stock Calipers: No
Rotor Construction: Vented
Rotor Style: Slotted surface
Rotor Outside Diameter (in.): 16.00 in.
Brake Rotor Bolt Pattern (in.): 8 x 6.50 in.
Brake Rotor Bolt Pattern (mm): 8 x 165.10mm
Nominal Thickness (in.): 1.380
Nominal Thickness (mm): 35.05
Rotor Material: Iron
Rotor Finish: Black E-Coat
Quantity: Sold individually.
