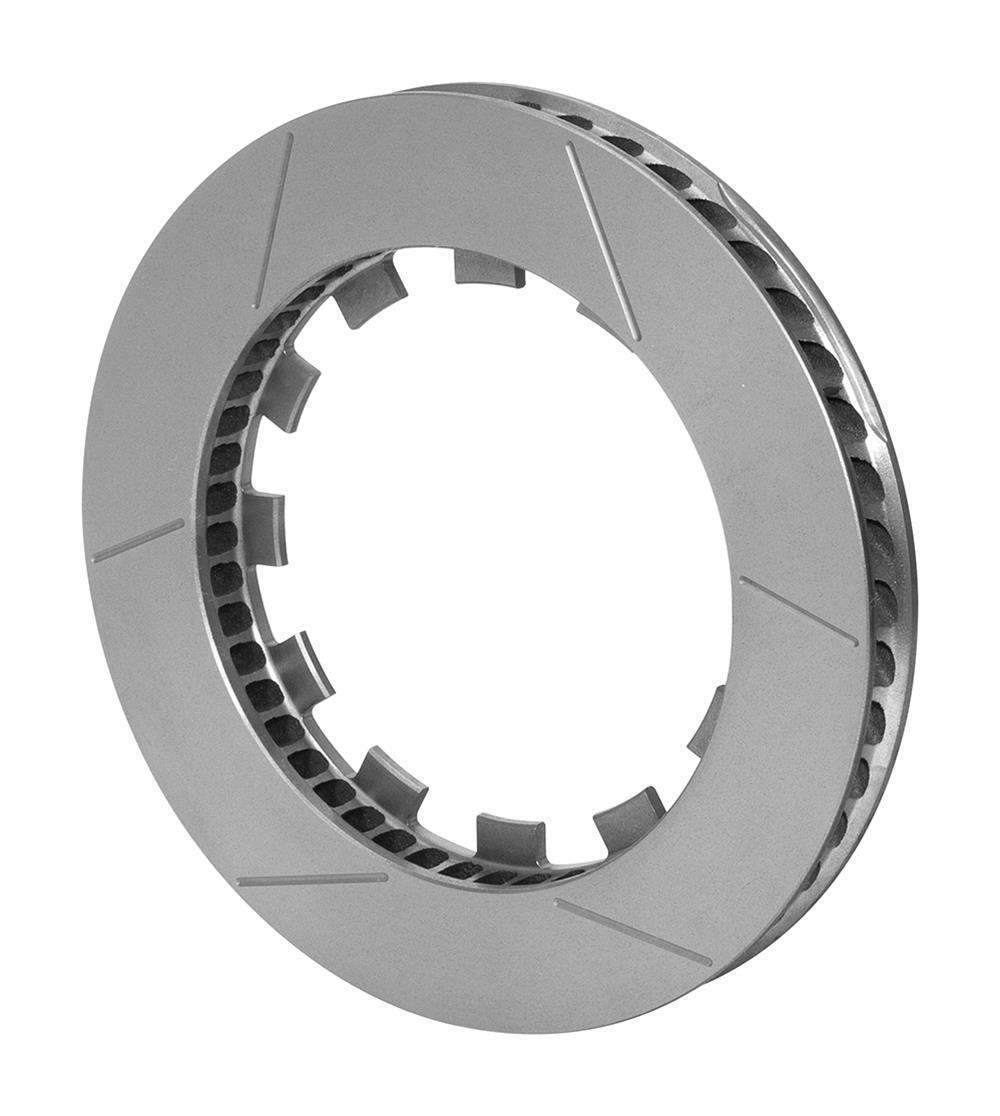

Wilwood GT 48 Series Curved Vane Rotors 160-15562-B

Wilwood GT 48 Series Curved Vane Spec-37 Dynamic lug mount rotors are machined from a proprietary iron alloy developed to withstand extreme temperatures—with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme-duty military spec rotors that are manufactured by Wilwood. Combined with the proven GT Series asymmetrical face slot pattern, individual dynamic balancing, and dynamic lug mounting, you're assured the smoothest, vibration-free performance at any speed. These rotors provide the highest cooling capacity and longest service life for extreme braking short tracks and road course competition. They're available separately for the driver and passenger side.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 160-15562-B
Part Type: Brake Rotors
Product Line: Wilwood GT 48 Series Curved Vane Rotors
HP Direct Part Number: WIL-160-15562-B
UPC: 889545089561
Intended for Street Use: No
For Use with Stock Calipers: No
Rotor Construction: Vented
Rotor Style: Slotted surface
Rotor Outside Diameter (in.): 12.19 in.
Brake Rotor Bolt Pattern (in.): 12 x 7.77 in.
Brake Rotor Bolt Pattern (mm): 12 x 197.36mm
Nominal Thickness (in.): 1.250
Nominal Thickness (mm): 31.75
Rotor Material: Iron
Rotor Finish: Natural
Quantity: Sold individually.
Notes: Has a 12 x 7.77 in. rotor bolt circle.
