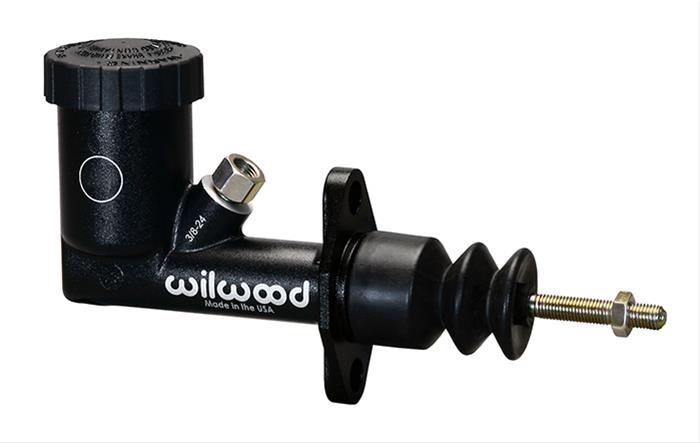

Wilwood GS Compact Master Cylinders 260-15098

The Wilwood 260-15098 master cylinder features a lightweight aluminum construction and offers consistent, reliable stopping power for a variety of applications from drag racing to off-roading. Utilizing standard OEM internal components for dependability, this Wilwood brake master cylinder features a high-pressure, e-coated aluminum body and integral cylinders with a positive-seal internal bellows cap. The included return spring and piston assembly have been refined to ensure positive pressure control and complete release. Other features of the Wilwood GS compact master cylinder include a ¾-inch bore size, a 1.5-ounce reservoir, and a single outlet.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 260-15098
Part Type: Master Cylinders
Product Line: Wilwood GS Compact Master Cylinders
HP Direct Part Number: WIL-260-15098
UPC: 889545074390
Master Cylinder Usage: Brake/Clutch
Master Cylinder Bore Size: 0.750 in.
Power Brake Compatible: No
Outlet Quantity: 1
Outlet Size 1: 3/8 in.-24
Master Cylinder Material: Aluminum
Master Cylinder Finish: Black
Bowl Design: Single
Mounting Hole Quantity: 2 holes
Mounting Flange Center to Center Distance (in.): 2.250
Master Cylinder Stroke: 1.250 in.
Remote Reservoir: No
Reservoir Included: Yes
Reservoir Material: Aluminum
Reservoir Color: Black
Master Cylinder Cap Included: Yes
Pushrod Included: Yes
Mounting Brackets Included: No
Hardware Included: No
Remanufactured: No
Quantity: Sold individually.
