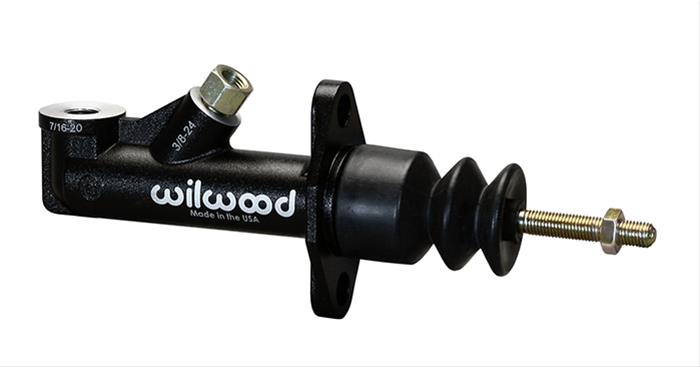

Wilwood GS Compact Master Cylinders 260-15091

Wilwood GS compact master cylinders have a re-buildable design featuring high-pressure diecast aluminum bodies with a protective E-coat finish. These master cylinders are available with an integrated reservoir or with a 7/16 in.-20 threaded inlet for a remote reservoir. The internal components have refined return spring and piston assemblies, assuring positive pressure control, along with a quick and complete release. Choose the bore size needed for your application.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 260-15091
Part Type: Master Cylinders
Product Line: Wilwood GS Compact Master Cylinders
HP Direct Part Number: WIL-260-15091
UPC: 889545074352
Master Cylinder Usage: Brake/Clutch
Master Cylinder Bore Size: 0.750 in.
Power Brake Compatible: No
Outlet Quantity: 1
Outlet Size 1: 3/8 in.-24
Master Cylinder Material: Aluminum
Master Cylinder Finish: Black
Bowl Design: Single
Mounting Hole Quantity: 2 holes
Mounting Flange Center to Center Distance (in.): 2.250
Master Cylinder Stroke: 1.250 in.
Remote Reservoir: Yes
Reservoir Included: No
Master Cylinder Cap Included: No
Pushrod Included: Yes
Mounting Brackets Included: No
Hardware Included: No
Remanufactured: No
Quantity: Sold individually.
