Description

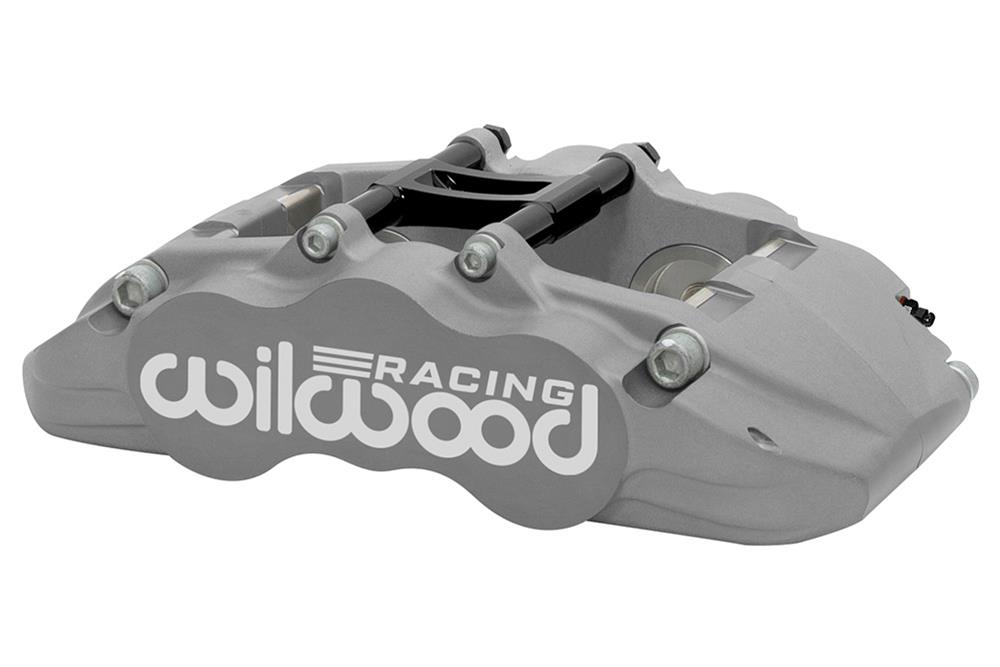

                            The Grand National GN4R forged aluminum four-piston radial mount calipers bring current state-of-the-art design, materials, and manufacturing technology to this long-standing icon in the Wilwood caliper line. With a high-strength forged aluminum body in a hard-anodized finish, the Grand National GN4R brake calipers are purpose-built for rotors with a 1.25 in. thickness and a special bracket offset. They also come with Thermlock insulated pistons. Wilwood offers the largest selection of bolt-on brake kits with specifically engineered and matched groups of components designed for superior brake system performance and custom appeal over a wide range of applications. Most kits install easily with common hand tools used to perform routine brake service.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 120-16528
Part Type: Brake Calipers
Product Line: Wilwood Grand National GN4R Brake Calipers
HP Direct Part Number: WIL-120-16528
Caliper Series: Grand National GN4R
Caliper Piston Quantity: Four
Piston Diameter (in.): 1.750
Rotor Thickness (in.): 1.250 in.
Caliper Material: Aluminum
Caliper Color: Gray/Silver
Caliper Logo: Wilwood
Parking Brake Provision: No
Fittings Included: Yes
Fitting Attachment 1: Female threads
Thread Size: 1/8 in. NPT
Brake Pads Included: No
Brackets Included: No
Remanufactured: No
Quantity: Sold individually.
Manufacturer's Part Number: 120-16528
Part Type: Brake Calipers
Product Line: Wilwood Grand National GN4R Brake Calipers
HP Direct Part Number: WIL-120-16528
Caliper Series: Grand National GN4R
Caliper Piston Quantity: Four
Piston Diameter (in.): 1.750
Rotor Thickness (in.): 1.250 in.
Caliper Material: Aluminum
Caliper Color: Gray/Silver
Caliper Logo: Wilwood
Parking Brake Provision: No
Fittings Included: Yes
Fitting Attachment 1: Female threads
Thread Size: 1/8 in. NPT
Brake Pads Included: No
Brackets Included: No
Remanufactured: No
Quantity: Sold individually.
