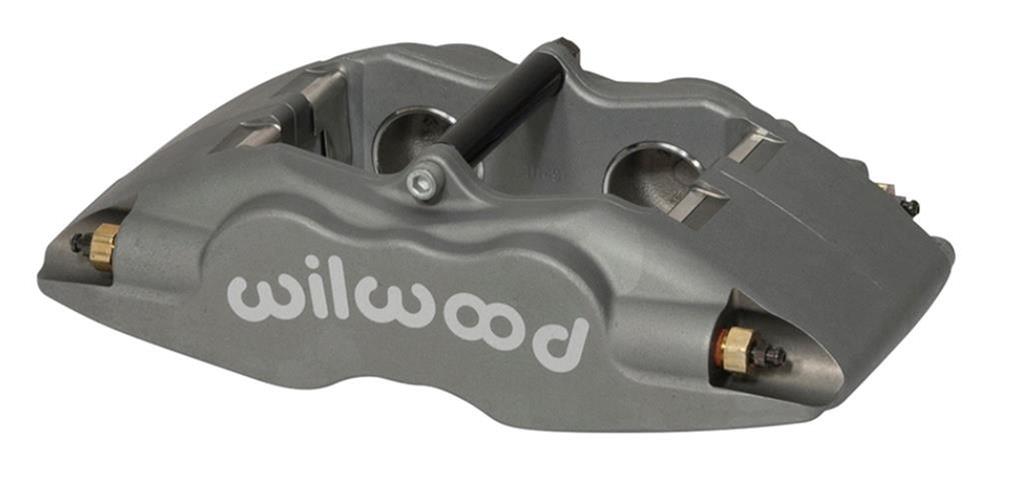

Wilwood Forged Superlite Internal Brake Calipers 120-11131

These Wilwood Forged Superlite Internal (FSLI) brake calipers feature internal fluid ports that eliminate the external fluid crossover tubes, along with any potential problems that could arise from a damaged tube. The transfer tube has been replaced with two additional bleed screw assemblies, which allow this group of symmetrical piston bore models to be mounted either on the right or left in a leading or trailing position. They are also stress-flow forged from premium-grade aluminum alloy billets. Stress-flow forging realigns the metal's internal grain structure to flow within the contour of the caliper body. This process eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. The FSLI body design is a highly efficient product of computer-generated solid modeling and stress analysis technology.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 120-11131
Part Type: Brake Calipers
Product Line: Wilwood Forged Superlite Internal Brake Calipers
HP Direct Part Number: WIL-120-11131
UPC: 889545001266
Caliper Series: FSLI
Caliper Piston Quantity: Four
Piston Diameter (in.): 1.620
Rotor Thickness (in.): 0.810 in.
Caliper Material: Aluminum
Caliper Color: Gray/Silver
Caliper Logo: Wilwood
Parking Brake Provision: No
Fittings Included: Yes
Brake Pads Included: No
Brackets Included: No
Remanufactured: No
Quantity: Sold individually.
