Description

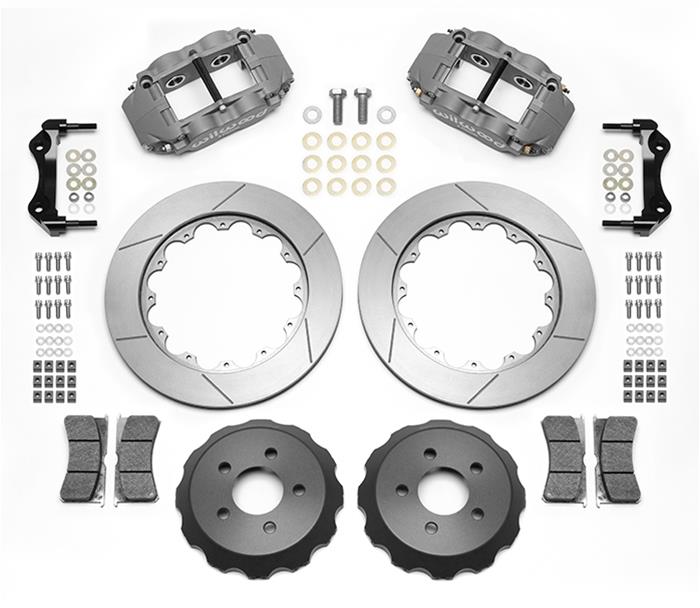

Wilwood Forged Superlite 4R Big Brake rear brake race kits are configured for dedicated road racing on all base, Eco-Boost, and standard production GT model 2015-18 Mustangs. They are the engineered match for the AERO6R/ST front race kits with all emphasis on matched front to rear balance, high durability, and high efficiency heat management, without adding unnecessary rotating or unsprung weight to the driveline and rear suspension.

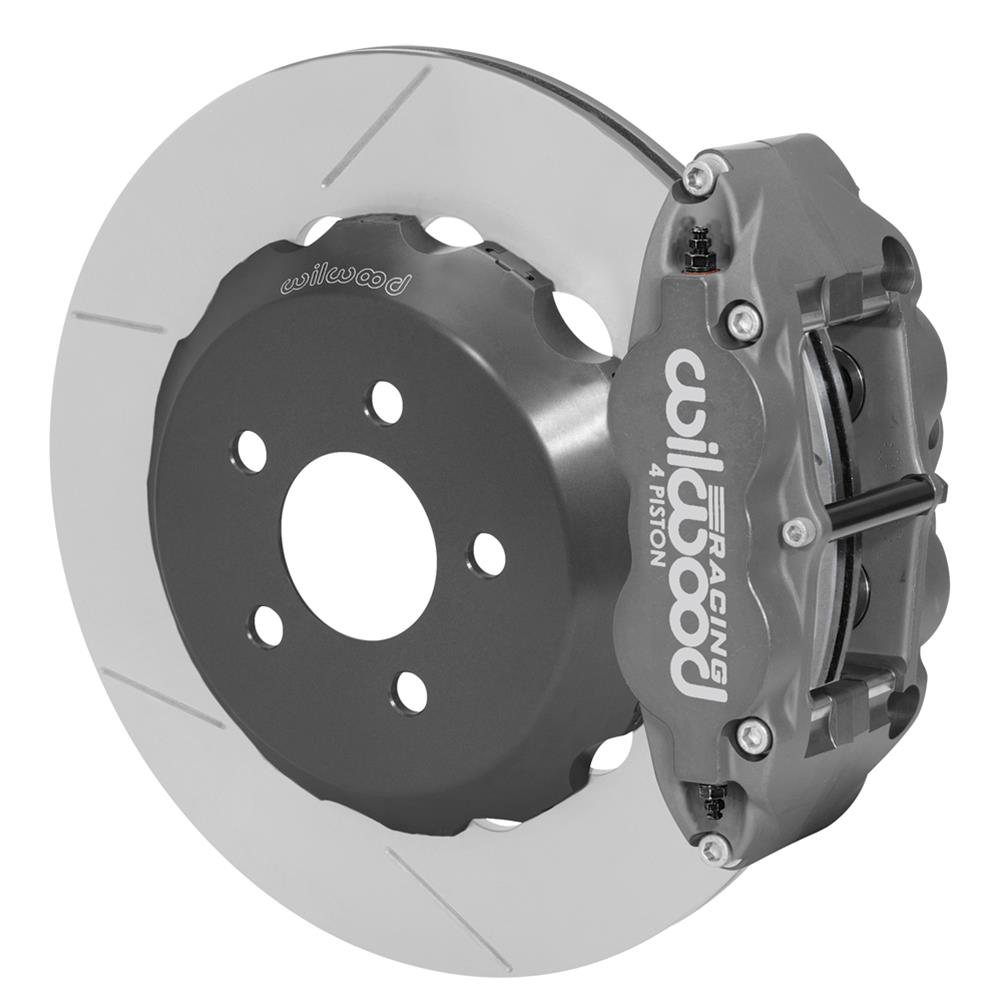

Wilwood's FSL4R/ST calipers feature a forged aluminum body with a Type III Mil-Spec, medium gray color, hard anodized finish providing superior wear resistance in the piston bores and high resistance to abrasion and corrosion throughout. They are equipped with Thermlock pistons to reduce heat transfer from the pads and increase fade resistance, as well as service life by decreasing temperatures in the caliper body, fluid, and seals. GT competition Series 36 vane 14.00 in. rotors are dynamically mounted to the OE hubs with weight saving forged aluminum hats. As is with the calipers, the hats are hard anodized for superior wear resistance and extended service life at the load bearing surfaces.
Additional caliper features:
* Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish
* Piston volumes are matched for full compatibility with the OE master cylinder output and ABS controls
* Fully compatible with manual brake conversions to balance bar pedals using appropriately sized master cylinders
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-14483
Part Type: Disc Brake Kits
Product Line: Wilwood Forged Superlite 4R Big Brake Rear Brake Race Kits
HP Direct Part Number: WIL-140-14483
UPC: 889545090253
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): 5 x 4.50 in.
Brake Rotor Bolt Pattern (mm): 5 x 114.30mm
Rear Rotor Included: Yes
Rear Rotor Style: Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 14.00 in./355.60mm
Rear Rotor Thickness (in.): 0.81
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Gray/Silver
Brake Pads Included: Yes
Friction Material Name: BP-30
Parking Brake Provision: No
Minimum Recommended Wheel Diameter (in.): 18 in.
Offset (in.): 0.000 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Wilwood's FSL4R/ST calipers feature a forged aluminum body with a Type III Mil-Spec, medium gray color, hard anodized finish providing superior wear resistance in the piston bores and high resistance to abrasion and corrosion throughout. They are equipped with Thermlock pistons to reduce heat transfer from the pads and increase fade resistance, as well as service life by decreasing temperatures in the caliper body, fluid, and seals. GT competition Series 36 vane 14.00 in. rotors are dynamically mounted to the OE hubs with weight saving forged aluminum hats. As is with the calipers, the hats are hard anodized for superior wear resistance and extended service life at the load bearing surfaces.
Additional caliper features:
* Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish
* Piston volumes are matched for full compatibility with the OE master cylinder output and ABS controls
* Fully compatible with manual brake conversions to balance bar pedals using appropriately sized master cylinders
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-14483
Part Type: Disc Brake Kits
Product Line: Wilwood Forged Superlite 4R Big Brake Rear Brake Race Kits
HP Direct Part Number: WIL-140-14483
UPC: 889545090253
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): 5 x 4.50 in.
Brake Rotor Bolt Pattern (mm): 5 x 114.30mm
Rear Rotor Included: Yes
Rear Rotor Style: Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 14.00 in./355.60mm
Rear Rotor Thickness (in.): 0.81
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Gray/Silver
Brake Pads Included: Yes
Friction Material Name: BP-30
Parking Brake Provision: No
Minimum Recommended Wheel Diameter (in.): 18 in.
Offset (in.): 0.000 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
