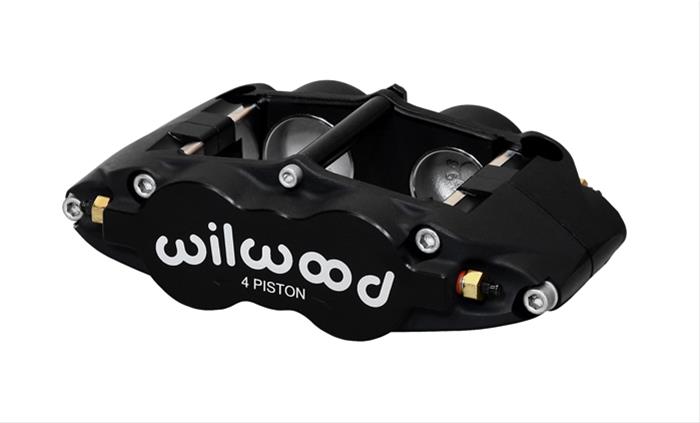

Wilwood Forged Superlite 4 Radial Mount Calipers 120-13228

Engineered to deliver the pad wear performance advantages of differential bore pistons, Wilwood forged Superlite 4 radial mount calipers also provide ultimate heat protection in the ST models. The differential piston bores compensate for leading-edge mechanical loading and temperature variances across the pad face. The Thermlock pistons in the ST models block heat transfer in the pads and reduce temperatures in the caliper, fluid, and seals by up to 25 percent over standard stainless steel pistons.

Additional information:

* Billet aluminum caliper material
* Black anodized or nickel plated finish
* Four-piston calipers
* Various rotor thickness and piston diameters available
* Calipers include Wilwood logo
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 120-13228
Part Type: Brake Calipers
Product Line: Wilwood Forged Superlite 4 Radial Mount Calipers
HP Direct Part Number: WIL-120-13228
UPC: 889545003017
Caliper Series: Forged Superlite 4 Radial Mount
Caliper Piston Quantity: Four
Piston Diameter (in.): 1.880/1.750
Rotor Thickness (in.): 1.250 in.
Caliper Material: Aluminum
Caliper Color: Gray/Silver
Caliper Logo: Wilwood
Parking Brake Provision: No
Fittings Included: No
Fitting Attachment 1: Female threads
Thread Size: 1/8 in. NPT
Brake Pads Included: No
Brackets Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Accepts 7420 type pad.
