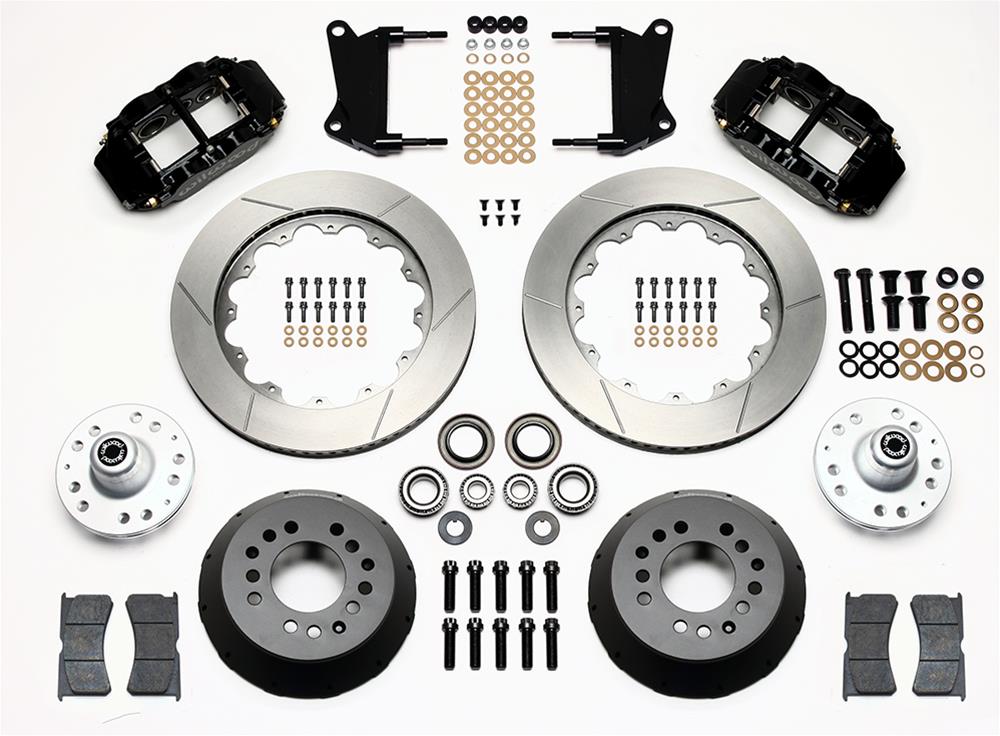

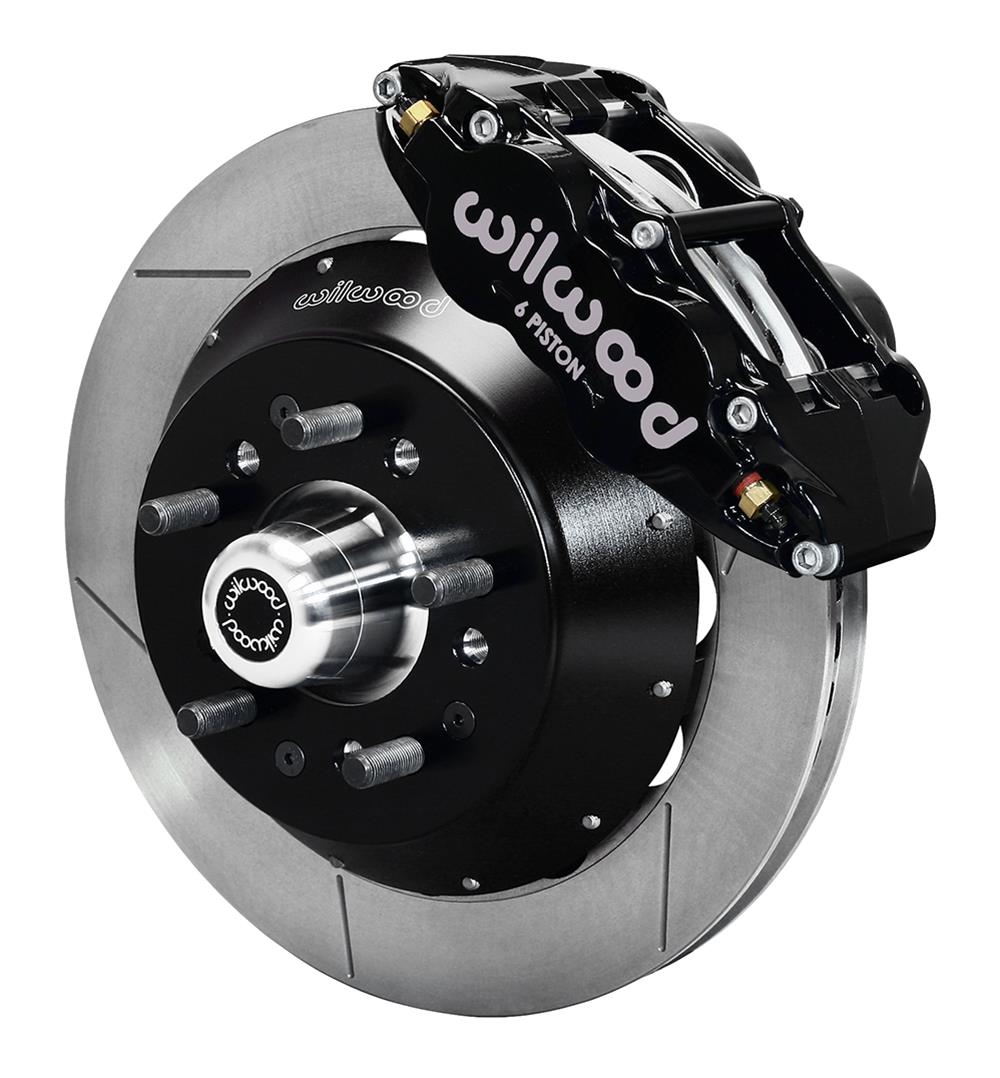

Wilwood Forged Narrow Superlite 6R Dust-Seal Big Brake front brake kits package FNSL6R-DS billet forged 6-piston calipers with 14 in. rotors to deliver the ultimate combination of braking power and style engineered for traditional non-ABS spindles on American muscle cars and vintage rods. The Superlite 6R calipers feature the addition of dust wiper seals, allowing them to be used in localities that require a method of environmental sealing.
Wilwood FNSL6R-DS front brake kits are built exclusively for 18 in. and larger wheels, enhancing tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes (red or black powdercoat) and rotor designs (slotted or drilled and slotted) are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-15409
Part Type: Disc Brake Kits
Product Line: Wilwood Forged Narrow Superlite 6R Dust-Seal Big Brake Front Brake Kits
HP Direct Part Number: WIL-140-15409
UPC: 889545087758
Position: Front
Front Rotor Included: Yes
Front Rotor Style: Slotted surface
Front Rotor Construction: Vented
Front Rotor Diameter: 14.00 in./355.60mm
Front Rotor Thickness (in.): 1.10 in.
Brake Rotor Bolt Pattern (in.): Dual 5 x 4.50 in./5 x 4.75 in.
Brake Rotor Bolt Pattern (mm): Dual 5 x 114.30mm/5 x 120.65mm
Rear Rotor Included: No
Front Caliper Included: Yes
Front Caliper Piston Quantity: Six
Front Caliper Material: Forged billet aluminum
Front Caliper Color: Black
Rear Caliper Included: No
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: No
Minimum Recommended Wheel Diameter (in.): 18 in.
Offset (in.): 0.380 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: Includes 1/2 in.-20 wheel studs.
Wilwood FNSL6R-DS front brake kits are built exclusively for 18 in. and larger wheels, enhancing tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes (red or black powdercoat) and rotor designs (slotted or drilled and slotted) are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-15409
Part Type: Disc Brake Kits
Product Line: Wilwood Forged Narrow Superlite 6R Dust-Seal Big Brake Front Brake Kits
HP Direct Part Number: WIL-140-15409
UPC: 889545087758
Position: Front
Front Rotor Included: Yes
Front Rotor Style: Slotted surface
Front Rotor Construction: Vented
Front Rotor Diameter: 14.00 in./355.60mm
Front Rotor Thickness (in.): 1.10 in.
Brake Rotor Bolt Pattern (in.): Dual 5 x 4.50 in./5 x 4.75 in.
Brake Rotor Bolt Pattern (mm): Dual 5 x 114.30mm/5 x 120.65mm
Rear Rotor Included: No
Front Caliper Included: Yes
Front Caliper Piston Quantity: Six
Front Caliper Material: Forged billet aluminum
Front Caliper Color: Black
Rear Caliper Included: No
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: No
Minimum Recommended Wheel Diameter (in.): 18 in.
Offset (in.): 0.380 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: Includes 1/2 in.-20 wheel studs.
