Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kits 140-11548-DR

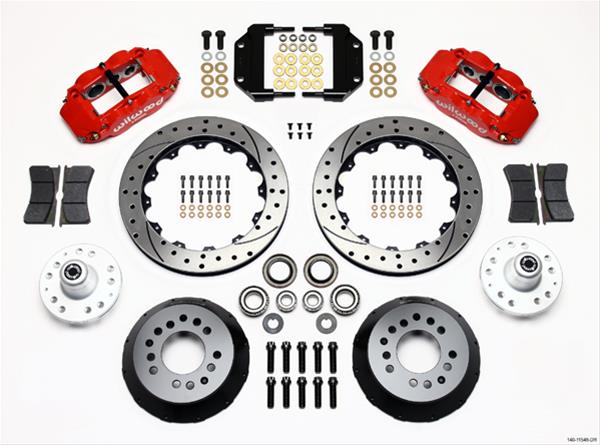

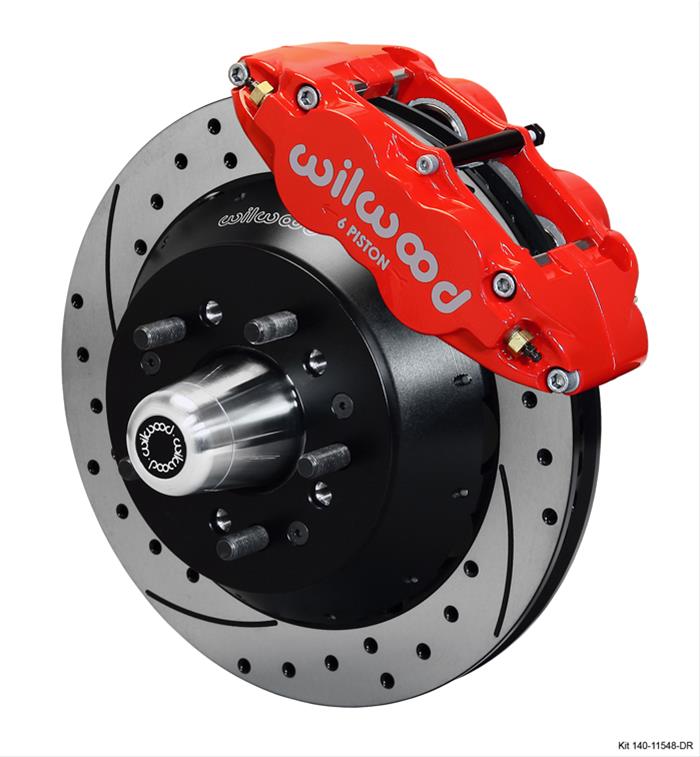

Wilwood forged narrow Superlite 6R Big Brake front brake kits upgrade your late model ride with increased brake capacity and complimentary style. They're application-specific for a simpler installation and offer full compatibility with OE master cylinder output and ABS functions, where used. These front brake kits feature the extremely durable and efficient body design of their forged narrow 6-piston radial mount calipers. You can choose from optional caliper finishes and rotor designs to meet your personal style and braking requirements. Don't just replace—upgrade to generate big stopping power with Wilwood forged narrow Superlite 6R Big Brake front brake kits.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-11548-DR
Part Type: Disc Brake Kits
Product Line: Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kits
HP Direct Part Number: WIL-140-11548-DR
UPC: 889545013726
Position: Front
Front Rotor Included: Yes
Front Rotor Style: Cross-drilled/Slotted surface
Front Rotor Construction: Vented
Front Rotor Diameter: 12.88 in./327.20mm
Front Rotor Thickness (in.): 1.10 in.
Brake Rotor Bolt Pattern (in.): Dual 5 x 4.00 in./5 x 4.50 in.
Brake Rotor Bolt Pattern (mm): Dual 5 x 101.60mm/5 x 114.30mm
Rear Rotor Included: No
Front Caliper Included: Yes
Front Caliper Piston Quantity: Six
Front Caliper Material: Forged billet aluminum
Front Caliper Color: Red
Rear Caliper Included: No
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: No

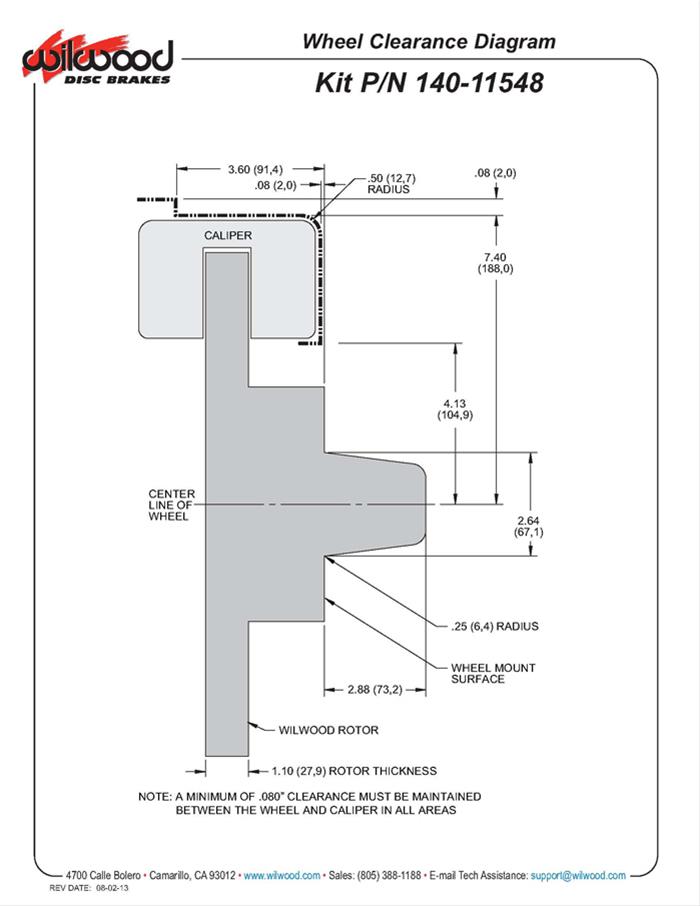

Minimum Recommended Wheel Diameter (in.): 17 in.
Offset (in.): 0.250 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: Includes 1/2 in.-20 wheel studs. Designed for use with applications using Magnum Force front drop spindles.
