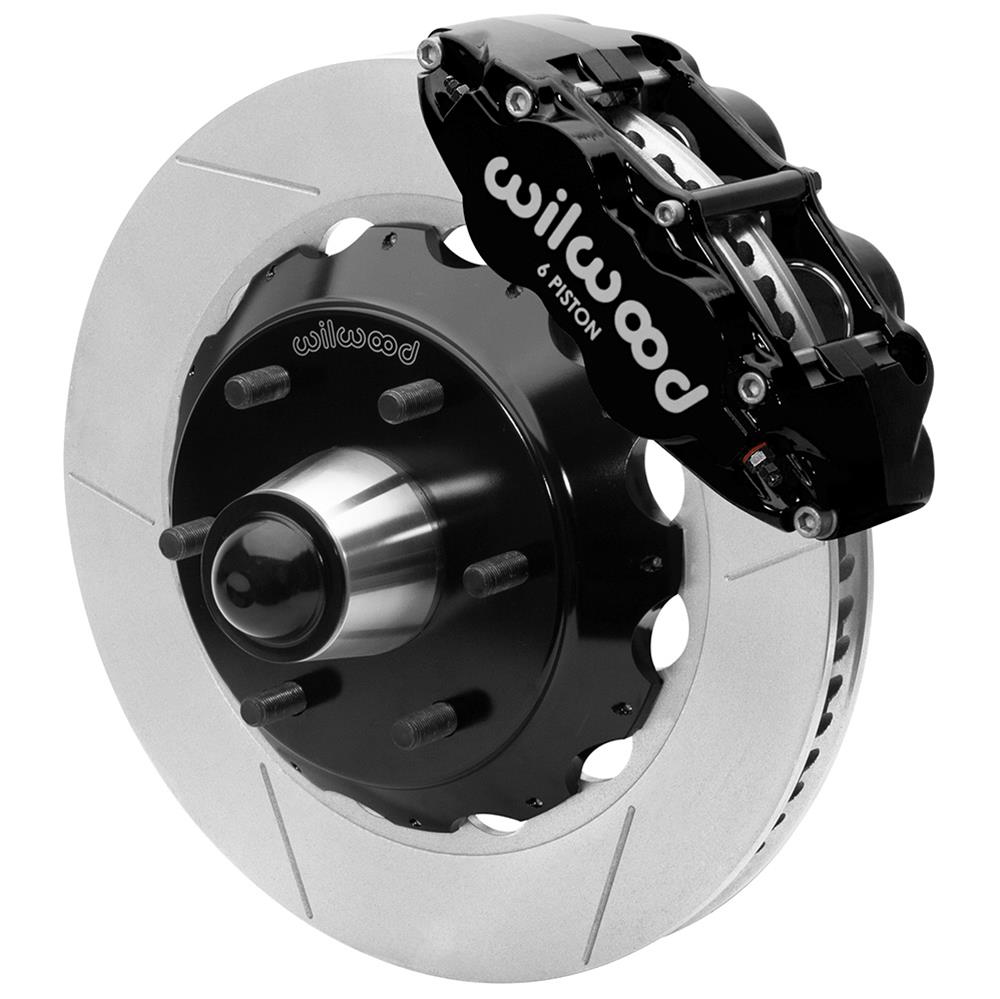

Wilwood Forged Narrow Superlite 6 Radial Mount Calipers 140-16458

Wilwood Forged Narrow Superlite 6 radial mount calipers are a new version of Wilwood's venerable Superlite caliper series. They add versatility and the convenience of radial mounting to this widely popular caliper series. Radial mounting simplifies adaptation and provides two planes of adjustment for accurate alignment over the disc. These aluminum calipers integrate "Big Brake" style with Wilwood's latest technology to generate big stopping power in extreme environments. They're available in a variety of sizes and finishes.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-16458
Part Type: Disc Brake Kits
Product Line: Wilwood Forged Narrow Superlite 6 Radial Mount Calipers
HP Direct Part Number: WIL-140-16458
Position: Front
Disc Brake Kit Type: Manual or power assist
Front Rotor Included: Yes
Front Rotor Style: Slotted surface
Front Rotor Construction: Vented
Front Rotor Diameter: 14.00 in./355.60mm
Front Rotor Thickness (in.): 1.25 in.
Brake Rotor Bolt Pattern (in.): 6 x 5.50 in.
Brake Rotor Bolt Pattern (mm): 6 x 139.70mm
Rear Rotor Included: No
Front Caliper Included: Yes
Front Caliper Piston Quantity: Six
Front Caliper Material: Forged billet aluminum
Front Caliper Color: Black
Rear Caliper Included: No
Brake Pads Included: Yes
Friction Material Name: BP-20
Parking Brake Provision: No
Minimum Recommended Wheel Diameter (in.): 18 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: Designed to fit 6-lug vehicles with CPP 2 in. drop spindles, part numbers CP30106-2, CP30106-3, and CP30106-4, or Ridetech 2 in. drop spindles part numbers 11349300, 11359300 and 11369300.
