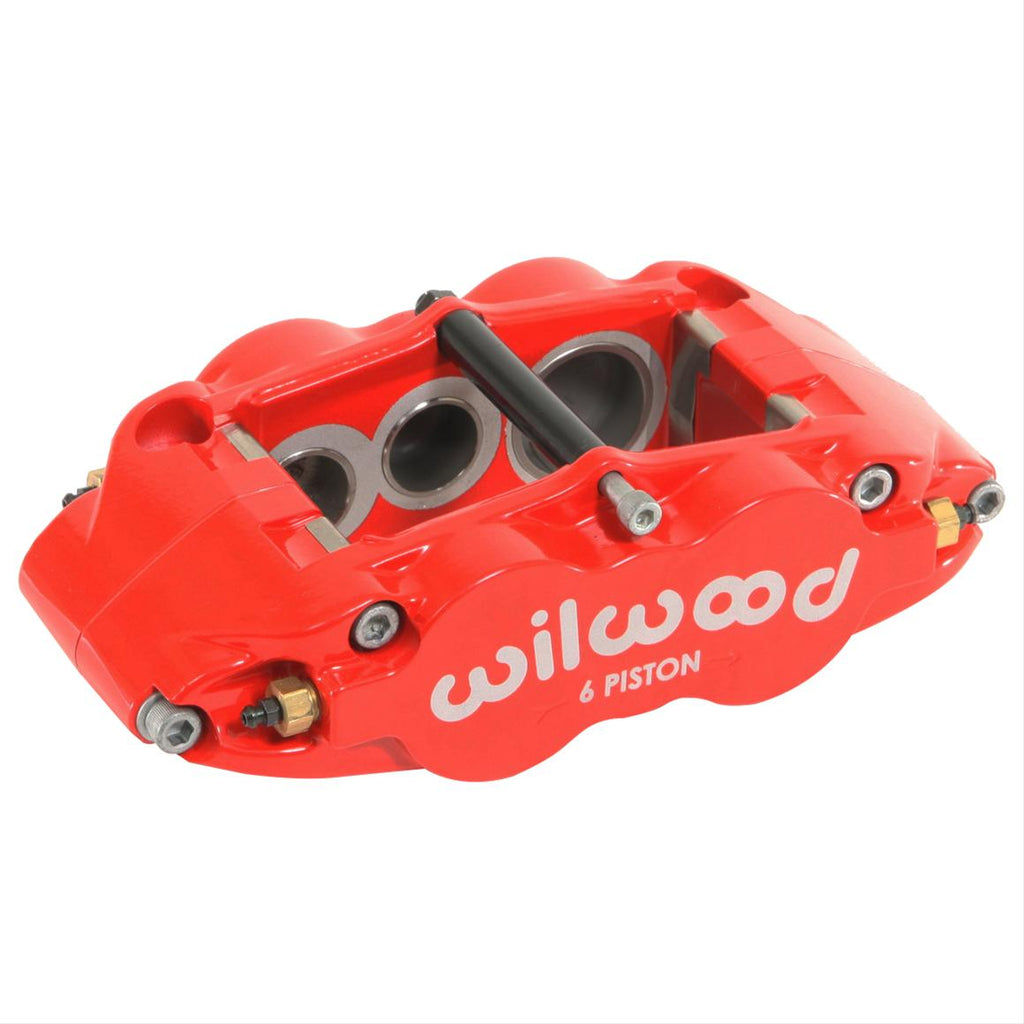

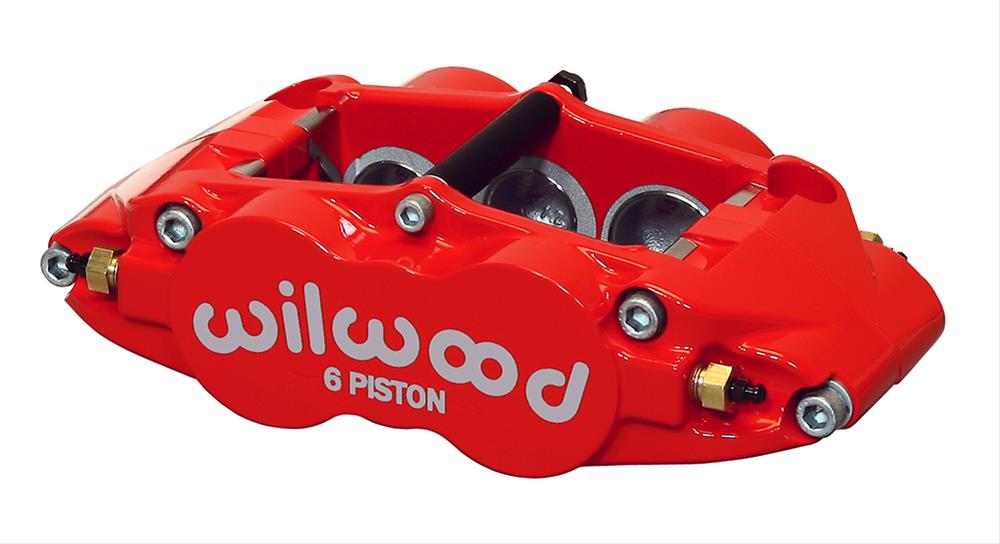

Wilwood Forged Narrow Superlite 6 Radial Mount Calipers 120-11778-RD

Wilwood Forged Narrow Superlite 6 radial mount calipers are a new version of Wilwood's venerable Superlite caliper series. They add versatility and the convenience of radial mounting to this widely popular caliper series. Radial mounting simplifies adaptation and provides two planes of adjustment for accurate alignment over the disc. These aluminum calipers integrate "Big Brake" style with Wilwood's latest technology to generate big stopping power in extreme environments. They're available in a variety of sizes and finishes.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 120-11778-RD
Part Type: Brake Calipers
Product Line: Wilwood Forged Narrow Superlite 6 Radial Mount Calipers
HP Direct Part Number: WIL-120-11778-RD
UPC: 889545002188
Caliper Series: Forged Narrow Superlite 6 Radial Mount
Caliper Piston Quantity: Six
Piston Diameter (in.): 1.620/1.120
Rotor Thickness (in.): 1.250 in.
Caliper Material: Aluminum
Caliper Color: Red
Caliper Logo: Wilwood
Parking Brake Provision: No
Fittings Included: No
Fitting Attachment 1: Female threads
Thread Size: 1/8 in. NPT
Brake Pads Included: No
Brackets Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Will fit 11.75 in. to 14 in. rotors.
