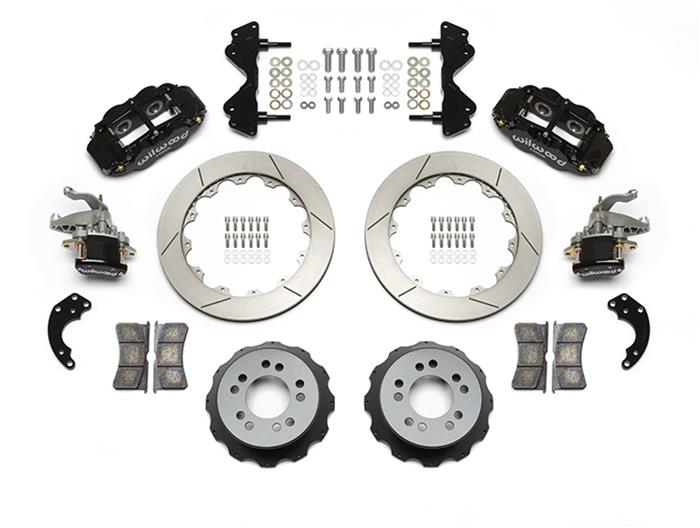

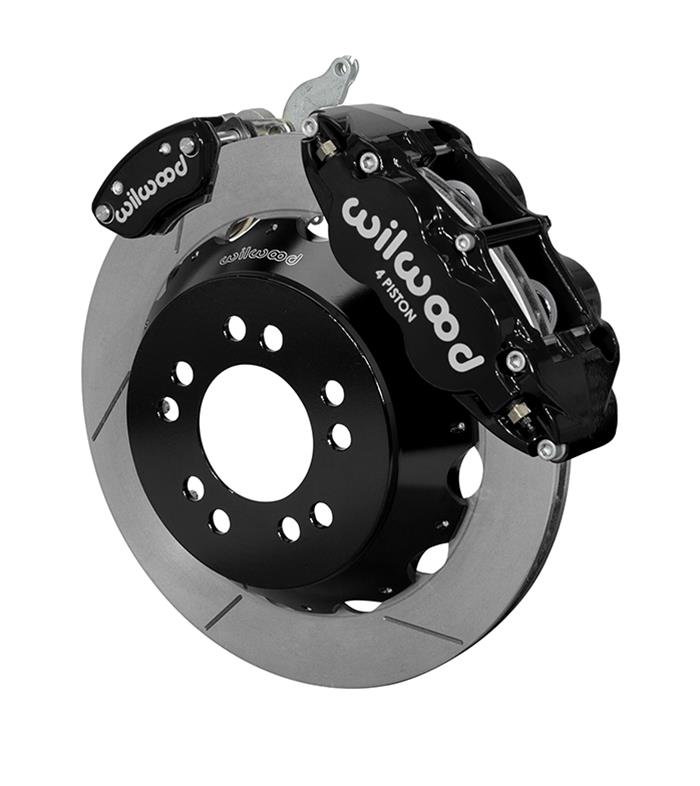

Wilwood Forged Narrow Superlite 4R-MC4 Big Brake Rear Parking Brake Kits 140-14262

Wilwood Forged Narrow Superlite 4R-MC4 Big Brake rear parking brake kits provide high-capacity braking, contemporary styling, and effective parking brake actuation. The original equipment single piston combination calipers are replaced with a high-efficiency, forged aluminum narrow Superlite four-piston calipers for normal braking, and auxiliary MC4 mechanical calipers for the parking brake. Rotor size is increased from 12.00 in. to 12.88 in., adding brake leverage and cooling capacity, while enriching the look inside your custom wheels and tires. These kits are available with slotted or drilled and slotted rotors with either black or red powdercoated calipers. When brake requirements increase, Wilwood offers their FNSL4R-MC4 rear kits for enhanced performance, increased durability, and high-tech style to complement front brake upgrades.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-14262
Part Type: Disc Brake Kits
Product Line: Wilwood Forged Narrow Superlite 4R-MC4 Big Brake Rear Parking Brake Kits
HP Direct Part Number: WIL-140-14262
UPC: 889545078473
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): Dual 5 x 4.50 in./5 x 4.75 in.
Brake Rotor Bolt Pattern (mm): Dual 5 x 114.30mm/5 x 120.65mm
Differential Case Design Type: Currie Floating
Axle Housing Flange Style: Currie Pro-Tour
Rear Rotor Included: Yes
Rear Rotor Style: Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 12.88 in./327.15mm
Rear Rotor Thickness (in.): 0.81
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Black
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: Yes
Parking Brake Style: Mechanical caliper
Minimum Recommended Wheel Diameter (in.): 17 in.
Offset (in.): 0.000 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: Fits Currie Pro-Tour unit bearing flange.
