Description

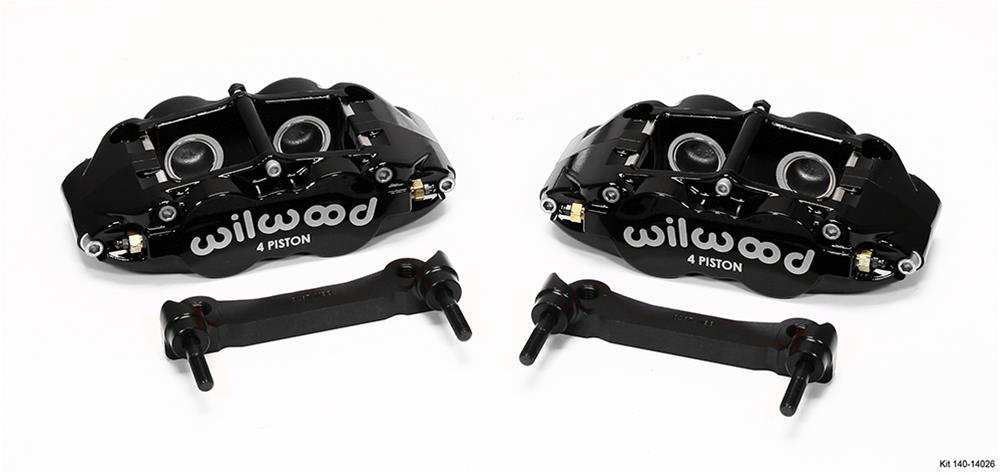

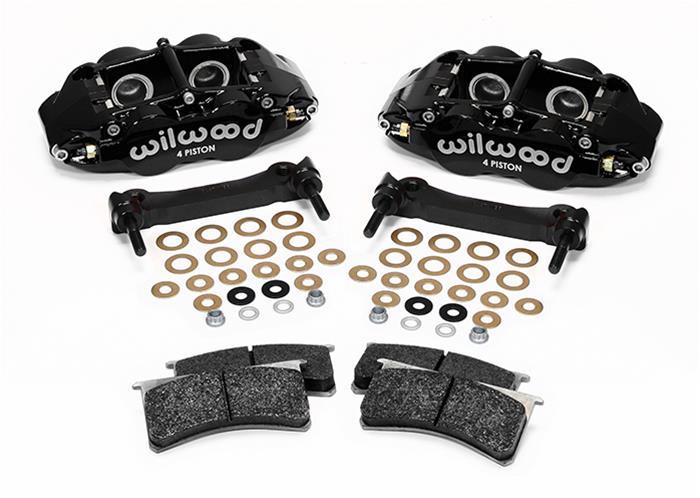

Wilwood Forged Narrow Superlite 4R caliper kits upgrade your rear suspension with big brake stopping power and style. These four piston radial mount caliper kits mount in the stock location and replace your OE calipers on all models that have been updated with 13.00 in. rotors. Superlite 4R calipers incorporate race-proven technology in high-strength, center bridge reinforced forged body designs. They provide positive and confident pedal response that is matched to the OE master cylinder output and fully compatible with the ABS system. BP-20 dual-sport compound Smart Pads provide clean and quiet driving on the street, with improved friction and high-temperature fade resistance for autocross and other sport driving applications. Wilwood Forged Narrow Superlite 4R caliper kits include calipers, pads, brackets, and hardware.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-14026
Part Type: Brake Calipers
Product Line: Wilwood Forged Narrow Superlite 4R Caliper Kits
HP Direct Part Number: WIL-140-14026
UPC: 889545070477
Caliper Series: Forged Narrow Superlite 4 Radial Mount
Caliper Piston Quantity: Four
Piston Diameter (in.): 1.250
Rotor Thickness (in.): 1.100 in.
Caliper Material: Aluminum
Caliper Color: Black
Caliper Logo: Wilwood
Parking Brake Provision: No
Fittings Included: Yes
Fitting Attachment 1: Female threads
Thread Size: 1/8 in. NPT
Brake Pads Included: Yes
Brake Pad Material: High-friction metallic
Brackets Included: Yes
Bracket Material: Aluminum
Bracket Color: Black
Remanufactured: No
Quantity: Sold as a kit.
Notes: Earlier models must be updated with 13.00 in. rotors from the 2005-09 C6 Z51 models.
Manufacturer's Part Number: 140-14026
Part Type: Brake Calipers
Product Line: Wilwood Forged Narrow Superlite 4R Caliper Kits
HP Direct Part Number: WIL-140-14026
UPC: 889545070477
Caliper Series: Forged Narrow Superlite 4 Radial Mount
Caliper Piston Quantity: Four
Piston Diameter (in.): 1.250
Rotor Thickness (in.): 1.100 in.
Caliper Material: Aluminum
Caliper Color: Black
Caliper Logo: Wilwood
Parking Brake Provision: No
Fittings Included: Yes
Fitting Attachment 1: Female threads
Thread Size: 1/8 in. NPT
Brake Pads Included: Yes
Brake Pad Material: High-friction metallic
Brackets Included: Yes
Bracket Material: Aluminum
Bracket Color: Black
Remanufactured: No
Quantity: Sold as a kit.
Notes: Earlier models must be updated with 13.00 in. rotors from the 2005-09 C6 Z51 models.
