Description

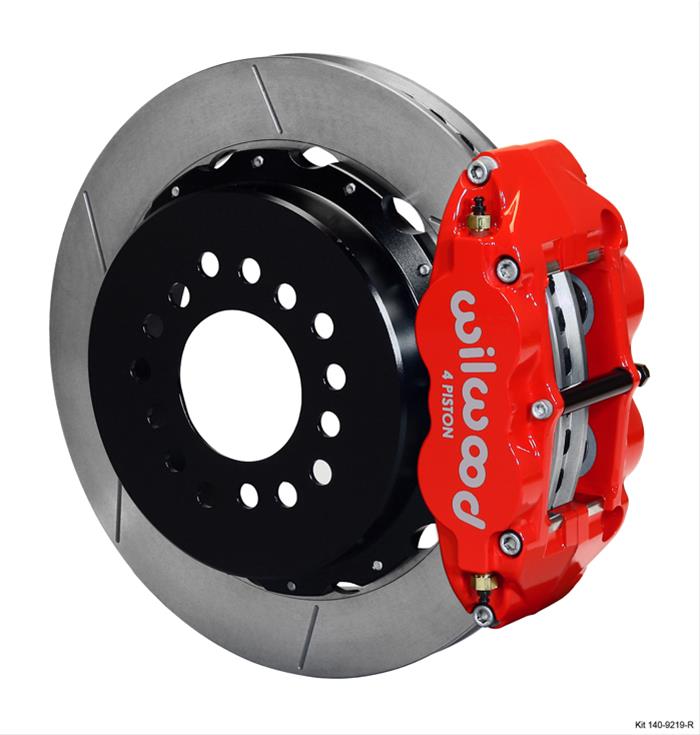

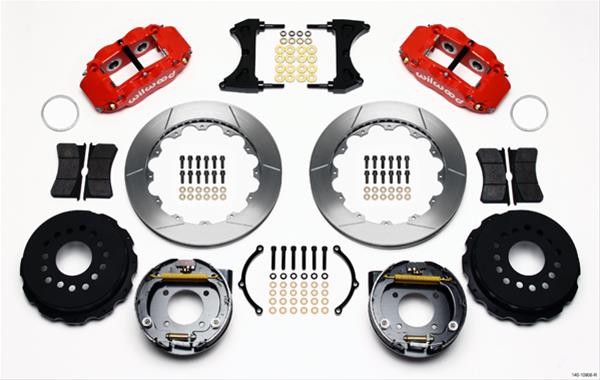

Wilwood Forged Narrow Superlite 4R Big Brake rear parking brake kits are the perfect addition to front Big Brake upgrades for incredible stopping power. These disc brake kits feature FNSL4R 4-piston oversize forged billet aluminum calipers, 13 or 14 in. 2-piece premium rotors, and high performance BP-10 compound pads. Also included is a high-quality, drum-style parking brake assembly. The neatly hidden internal shoe system provides a clean installation, with superior static holding power for parking. Wilwood Forged Narrow Superlite 4R Big Brake rear parking brake kits provide the extra power to reel in your beast. Order the kit designed for your vehicle application.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-10908-R
Part Type: Disc Brake Kits
Product Line: Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits
HP Direct Part Number: WIL-140-10908-R
UPC: 889545010756
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.
Brake Rotor Bolt Pattern (mm): Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm
Differential Case Design Type: GM 8.875 in. (12-bolt), passenger car
Axle Housing Flange Style: 10/12 Bolt Chevrolet (3.072 in. x 2.40 in.)
Rear Rotor Included: Yes
Rear Rotor Style: Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 12.88 in./327.15mm
Rear Rotor Thickness (in.): 1.10
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Red
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: Yes
Parking Brake Style: Internal drum

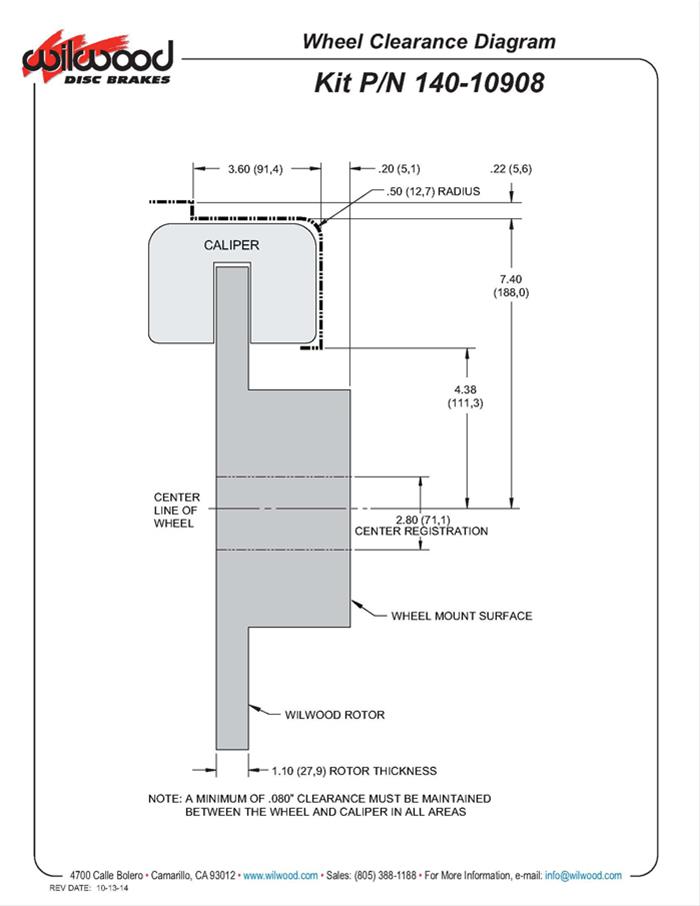

Minimum Recommended Wheel Diameter (in.): 17 in.
Offset (in.): 2.810 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: Designed to fit with factory C-clip axles, and staggered shock mounts. Kit designed for staggered shock mount rear ends: R/H caliper is rear mount, L/H caliper is front mount.
Manufacturer's Part Number: 140-10908-R
Part Type: Disc Brake Kits
Product Line: Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits
HP Direct Part Number: WIL-140-10908-R
UPC: 889545010756
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.
Brake Rotor Bolt Pattern (mm): Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm
Differential Case Design Type: GM 8.875 in. (12-bolt), passenger car
Axle Housing Flange Style: 10/12 Bolt Chevrolet (3.072 in. x 2.40 in.)
Rear Rotor Included: Yes
Rear Rotor Style: Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 12.88 in./327.15mm
Rear Rotor Thickness (in.): 1.10
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Red
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: Yes
Parking Brake Style: Internal drum
Minimum Recommended Wheel Diameter (in.): 17 in.
Offset (in.): 2.810 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: Designed to fit with factory C-clip axles, and staggered shock mounts. Kit designed for staggered shock mount rear ends: R/H caliper is rear mount, L/H caliper is front mount.
