Description

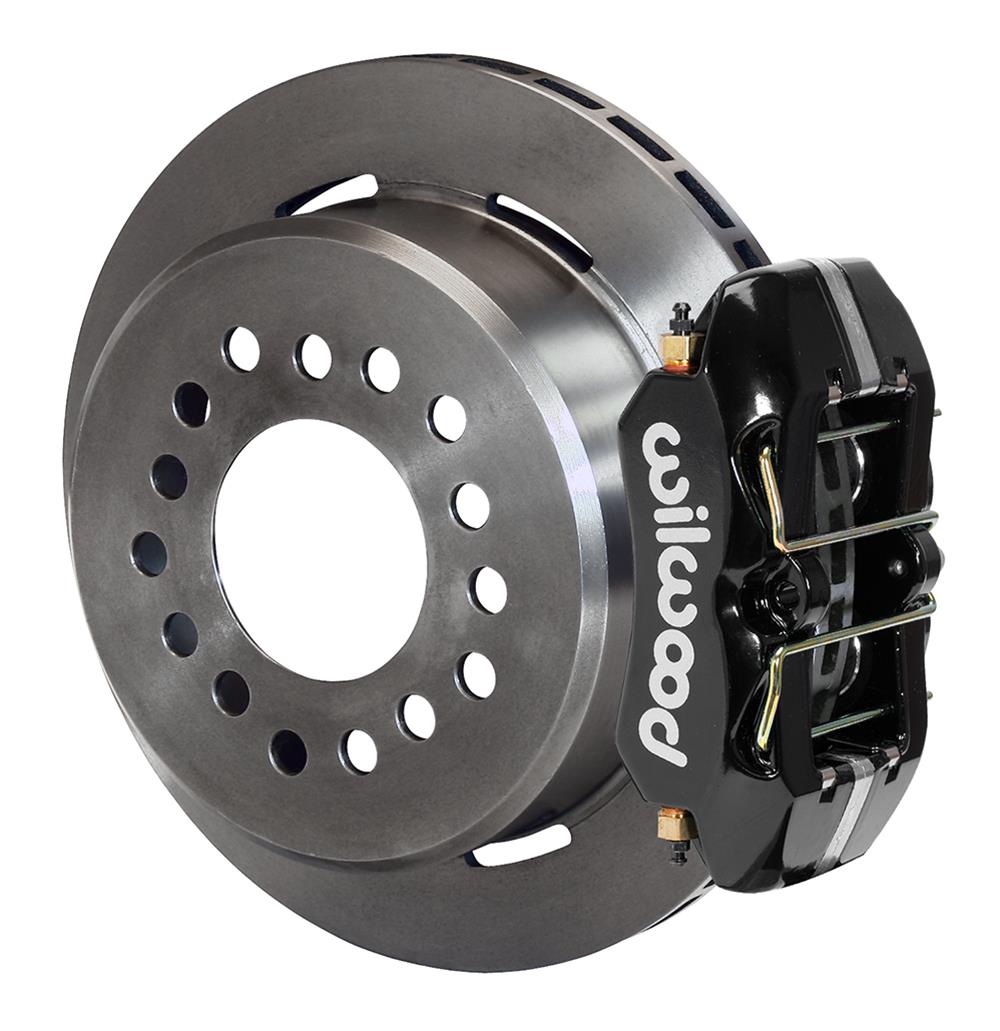

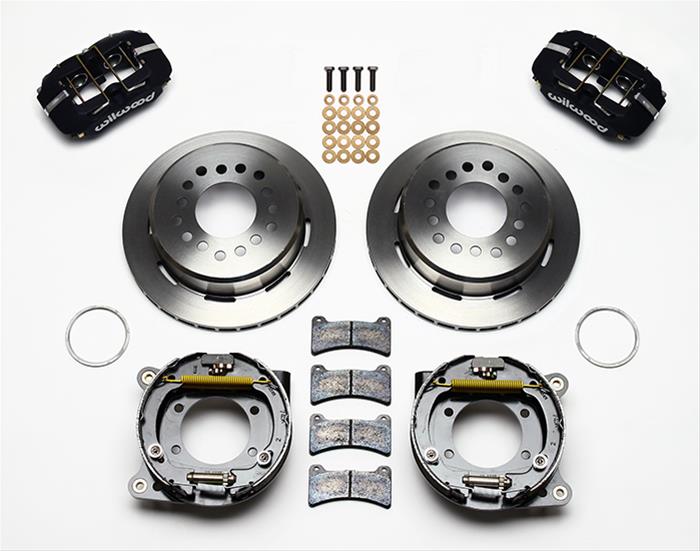

For popular musclecar rear axle applications needing a parking brake assembly and some extra clearance, Wilwood Forged DynaPro low-profile rear parking disc brake kits provide the solution. Forged billet DynaPro low-profile 4-piston calipers, 11 in. one-piece hat and rotor assemblies, and high-friction pads provide optimal balanced braking for your performance street/strip and show machines. Choose either solid-surface or cross-drilled and slotted rotors to personalize your style and optimize brake performance. These Wilwood brake kits also feature a neatly hidden internal shoe system for a clean installation and superior static holding power for parking. Get bolt-on performance and looks for competition or show with Wilwood Forged Dynapro low-profile rear parking disc brake kits.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-11399
Part Type: Disc Brake Kits
Product Line: Wilwood Forged DynaPro Low-Profile Rear Parking Brake Kits
HP Direct Part Number: WIL-140-11399
UPC: 889545013269
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.
Brake Rotor Bolt Pattern (mm): Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm

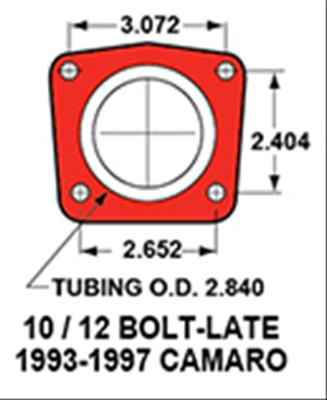

Axle Housing Flange Style: 10/12 Bolt Late Camaro 93/02 (3.072 in. x 2.40 in.)
Rear Rotor Included: Yes
Rear Rotor Style: Solid surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 11.00 in./279.40mm
Rear Rotor Thickness (in.): 0.81
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Black
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: Yes
Parking Brake Style: Internal drum

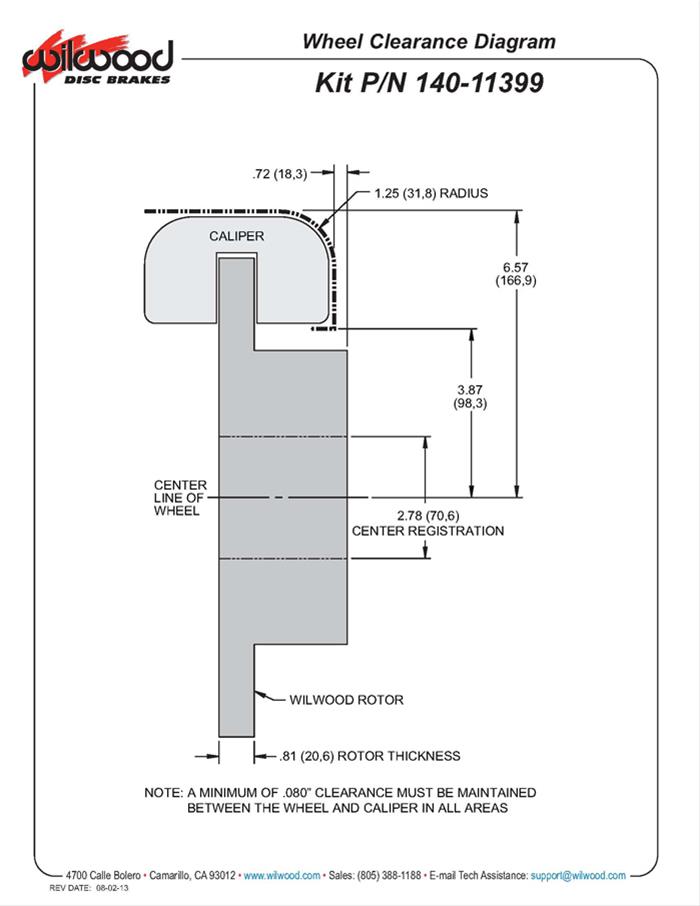

Minimum Recommended Wheel Diameter (in.): 14 in.

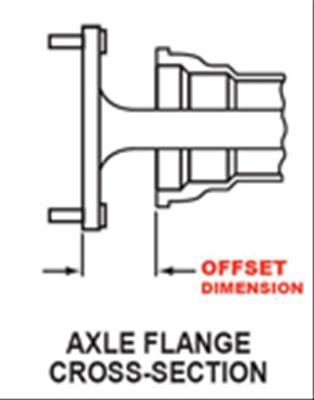

Offset (in.): 2.750 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: For use on 12-bolt conversion in 1993-2002 GM F-body. This kit may not work with OEM traction control or anti-lock brake systems due to interference with reluctor assemblies or sensors. Please verify clearances before assembly.
Manufacturer's Part Number: 140-11399
Part Type: Disc Brake Kits
Product Line: Wilwood Forged DynaPro Low-Profile Rear Parking Brake Kits
HP Direct Part Number: WIL-140-11399
UPC: 889545013269
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.
Brake Rotor Bolt Pattern (mm): Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm
Axle Housing Flange Style: 10/12 Bolt Late Camaro 93/02 (3.072 in. x 2.40 in.)
Rear Rotor Included: Yes
Rear Rotor Style: Solid surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 11.00 in./279.40mm
Rear Rotor Thickness (in.): 0.81
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Black
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: Yes
Parking Brake Style: Internal drum
Minimum Recommended Wheel Diameter (in.): 14 in.
Offset (in.): 2.750 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: For use on 12-bolt conversion in 1993-2002 GM F-body. This kit may not work with OEM traction control or anti-lock brake systems due to interference with reluctor assemblies or sensors. Please verify clearances before assembly.
