Wilwood Forged DynaPro Low-Profile Dust Seal Rear Parking Brake Kits 140-11403-P

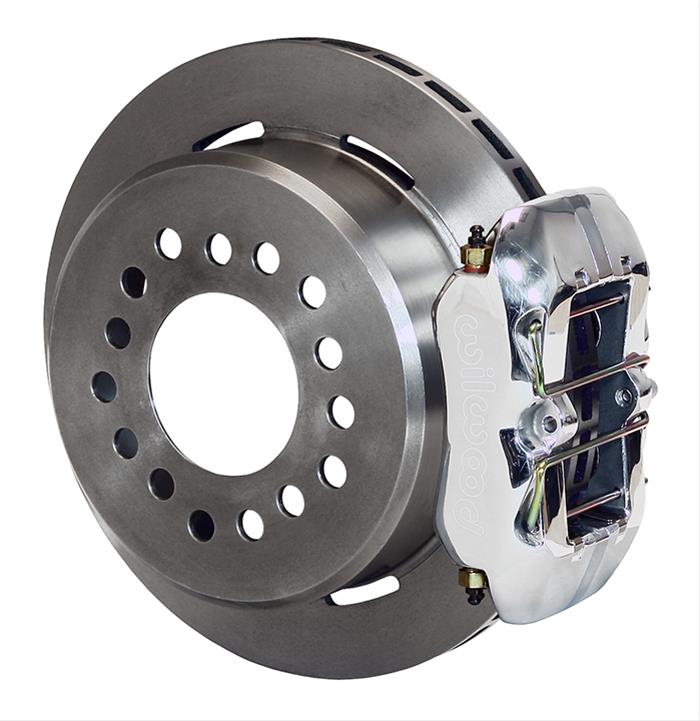

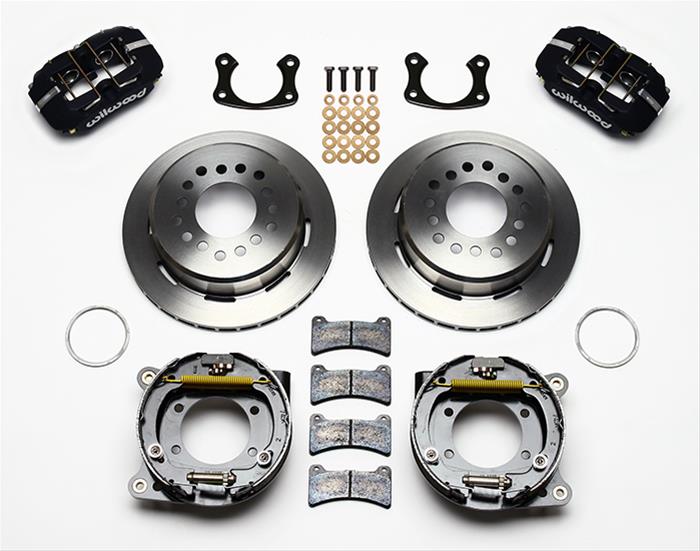

Wilwood Forged Dynapro Low-Profile Dust Seal Pro-Series rear disc brake kits offer a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14 in. to 15 in. rim applications. Forged billet Dynapro Low-Profile 4-piston calipers with dust seals, 11 in. one-piece hat and rotor assemblies, and high-friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-11403-P
Part Type: Disc Brake Kits
Product Line: Wilwood Forged DynaPro Low-Profile Dust Seal Rear Parking Brake Kits
HP Direct Part Number: WIL-140-11403-P
UPC: 889545013481
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.
Brake Rotor Bolt Pattern (mm): Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm

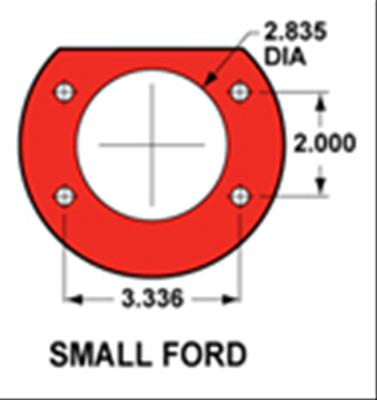

Axle Housing Flange Style: Small Ford (3.336 in. x 2.00 in.)
Rear Rotor Included: Yes
Rear Rotor Style: Solid surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 14.00 in./355.60mm
Rear Rotor Thickness (in.): 0.81
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Polished
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: Yes
Parking Brake Style: Internal drum
Minimum Recommended Wheel Diameter (in.): 14 in.

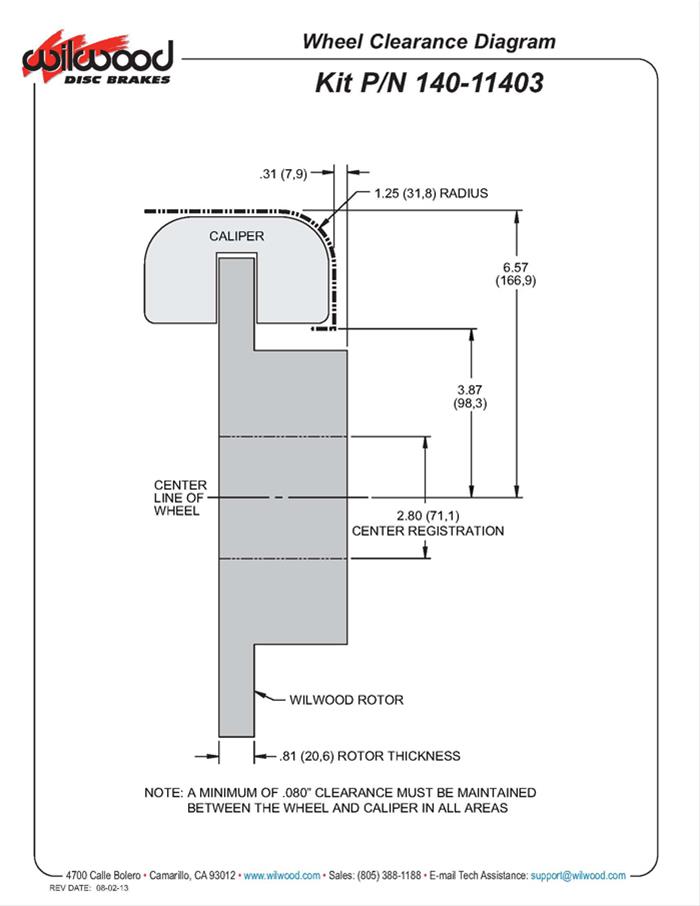

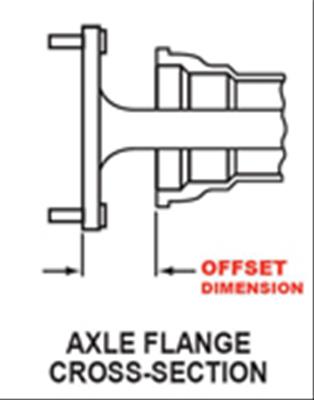

Offset (in.): 2.500 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
