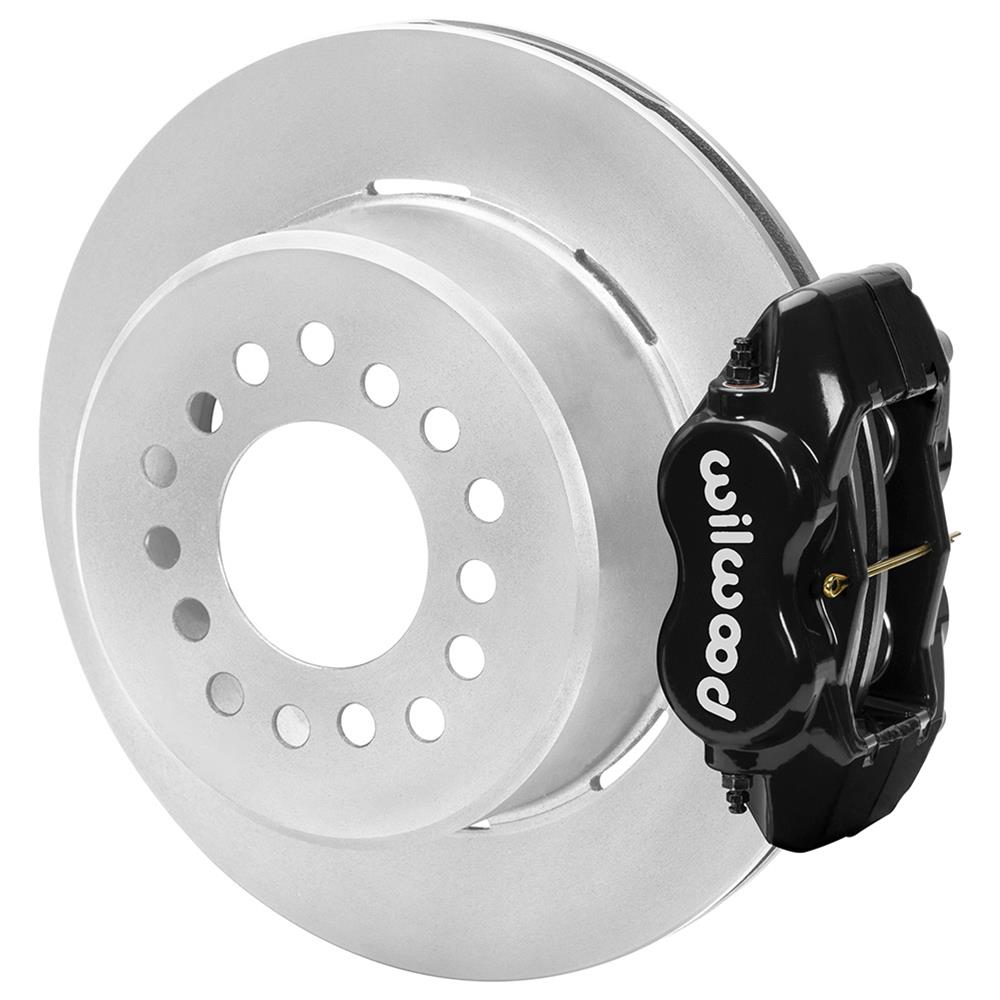

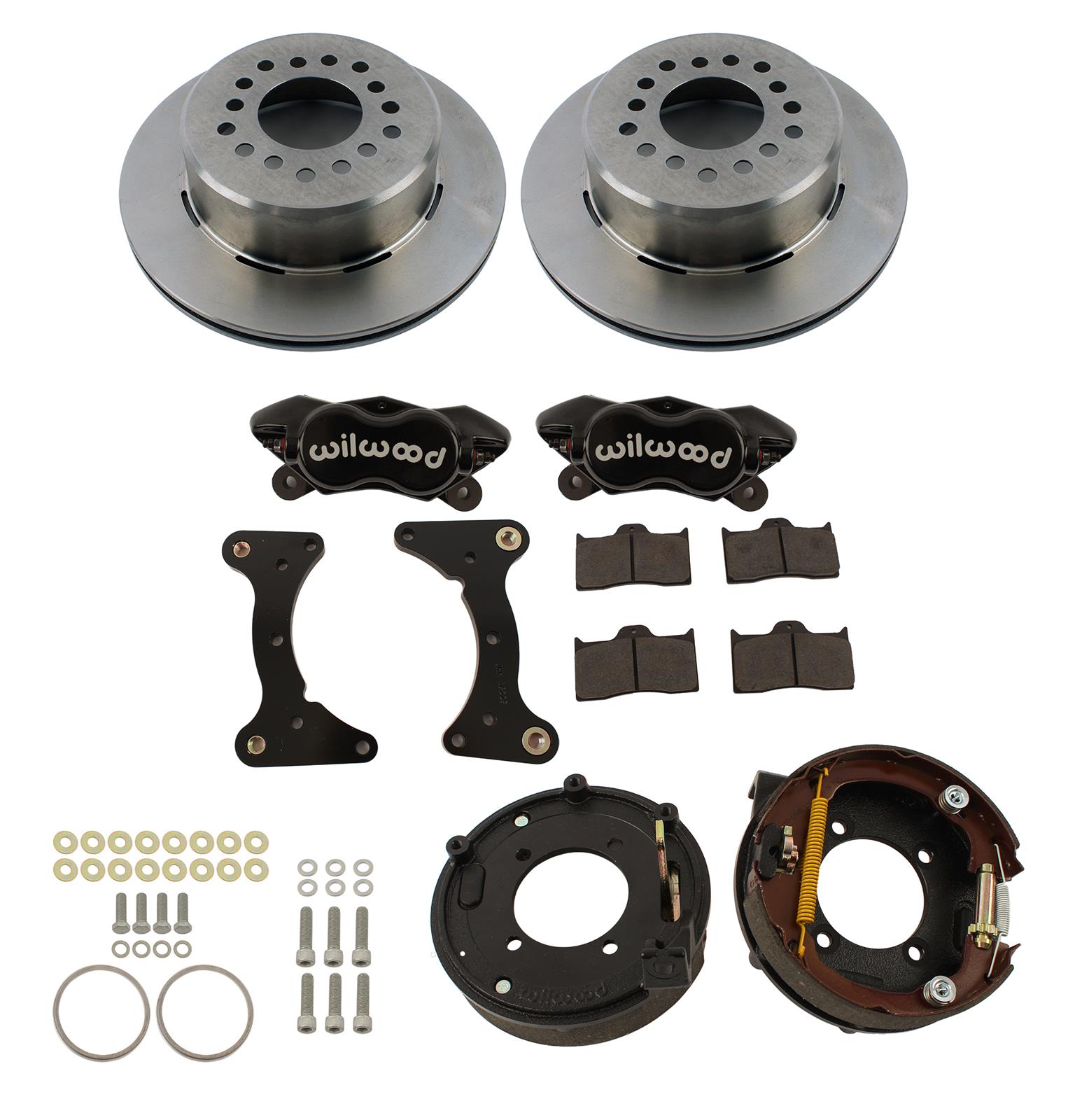

Wilwood Forged Dynalite Rear Parking Brake Kits 140-16445

Wilwood forged Dynalite rear parking brake kits provide the best solution for many rear axles requiring a parking brake. The forged billet Dynalite 4-piston calipers, one-piece drum/rotors, and high-friction pads provide balanced braking for all types of performance street, strip, and show machines. Their internal shoe parking brake design stays hidden, but has excellent static holding power for parking. Wilwood offers optional caliper finishes and rotor designs to enable the builder to personalize the style and optimize brake performance for every individual application.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-16445
Part Type: Disc Brake Kits
Product Line: Wilwood Forged Dynalite Rear Parking Brake Kits
HP Direct Part Number: WIL-140-16445
UPC: 889545101287
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.
Brake Rotor Bolt Pattern (mm): Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm
Differential Case Design Type: GM 7.625 in.
Axle Housing Flange Style: Chevrolet S10 (3.072 in. x 2.40 in.)
Rear Rotor Included: Yes
Rear Rotor Style: Solid surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 12.19 in./309.63mm
Rear Rotor Thickness (in.): 0.81
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Black
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: Yes
Parking Brake Style: Internal drum
Offset (in.): 2.750 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
