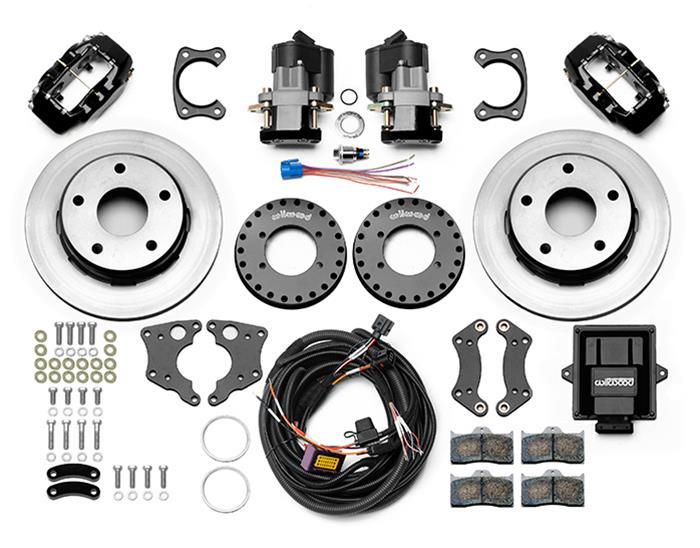

Wilwood Forged Dynalite Rear Electronic Parking Brake Kits 140-16126

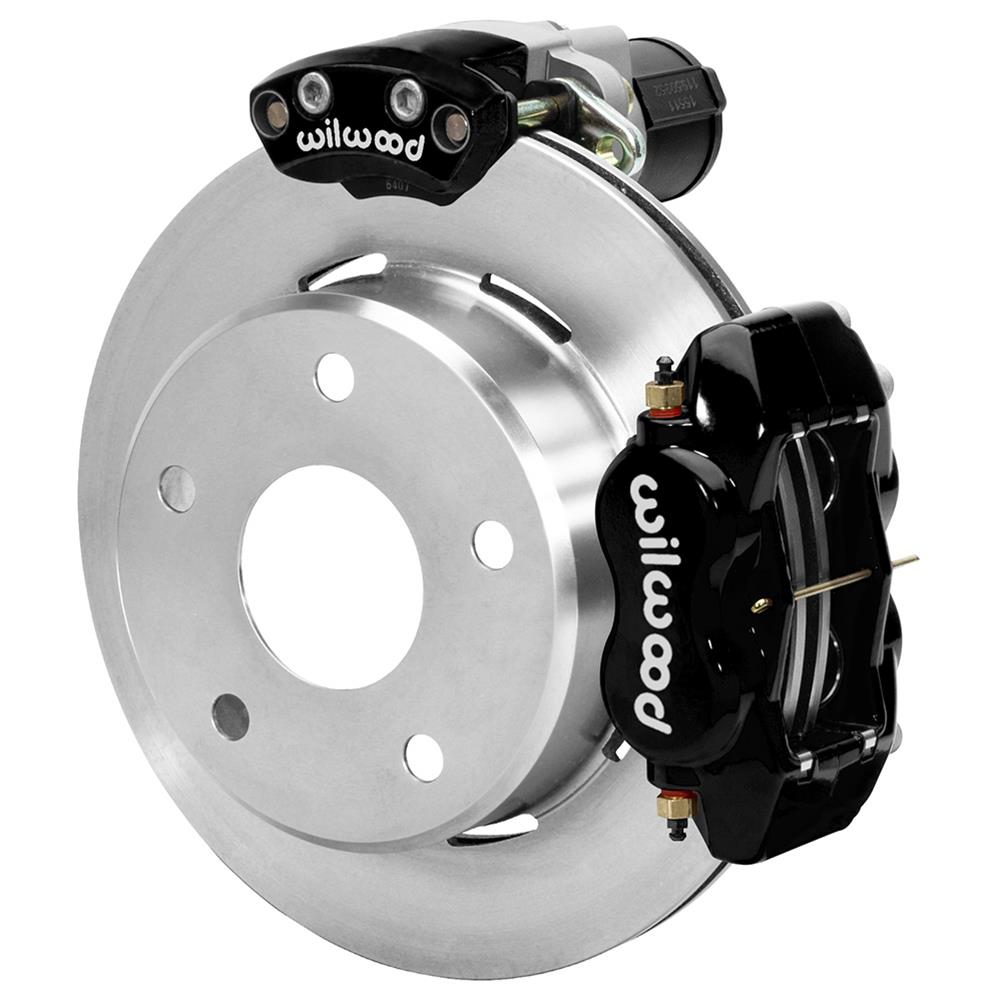

Wilwood Forged Dynalite rear electronic parking brake kits provide a complete solution for popular muscle car rear axles that require a parking brake. Forged Billet Dynalite 4-piston calipers, 12.19 in. one-piece rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The unique electronic parking brake caliper provides high-torque static holding power for parking without mechanical cabling. Supplied with a control unit and harness assembly, it simplifies installation and use. Optional caliper finishes and rotor designs enable builders to personalize the style and optimize brake performance for every individual application.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-16126
Part Type: Disc Brake Kits
Product Line: Wilwood Forged Dynalite Rear Electronic Parking Brake Kits
HP Direct Part Number: WIL-140-16126
UPC: 889545091564
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): 5 x 5.50 in.
Brake Rotor Bolt Pattern (mm): 5 x 139.70mm
Differential Case Design Type: Ford 9 in.
Axle Housing Flange Style: Big Ford New Style Bronco (3.562 in. x 2.00 in. 5-Lug)
Rear Rotor Included: Yes
Rear Rotor Style: Solid surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 12.19 in./309.63mm
Rear Rotor Thickness (in.): 0.81
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Black
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: Yes
Parking Brake Style: Electric caliper
Minimum Recommended Wheel Diameter (in.): 15 in.
Offset (in.): 2.360 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
