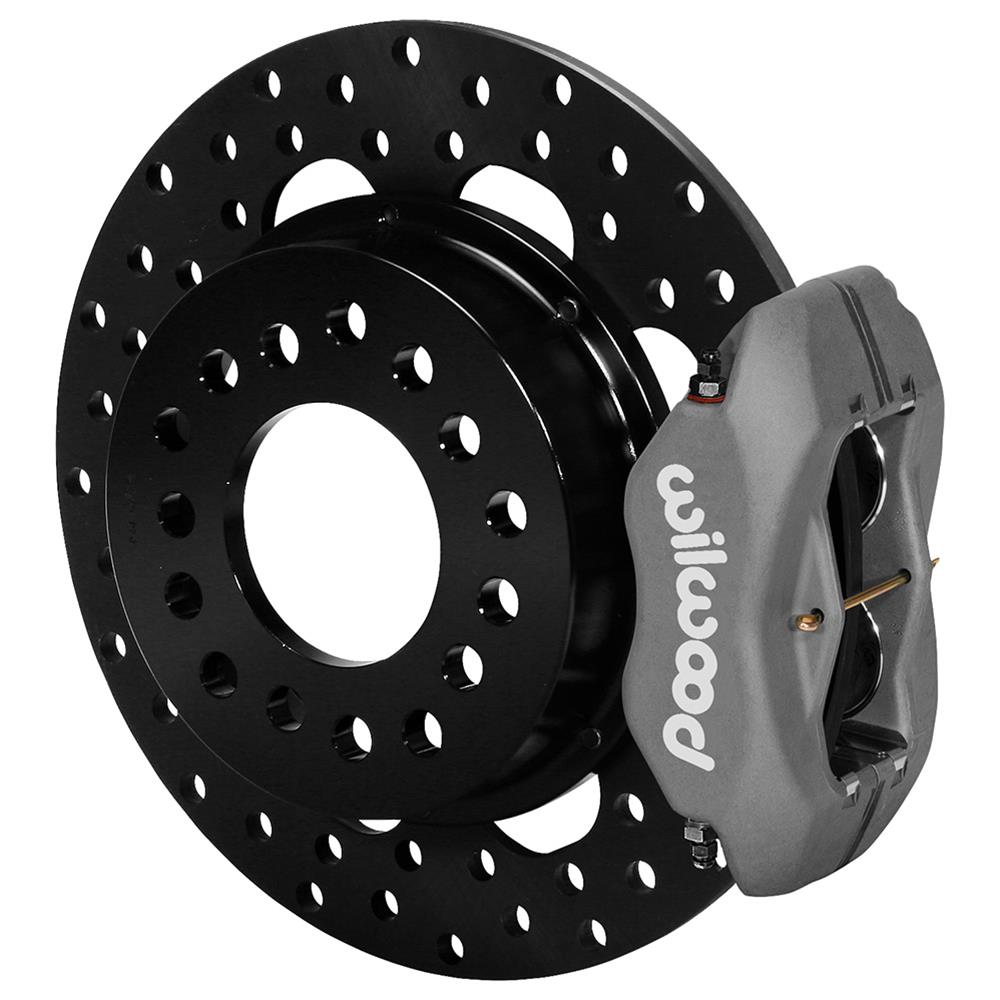

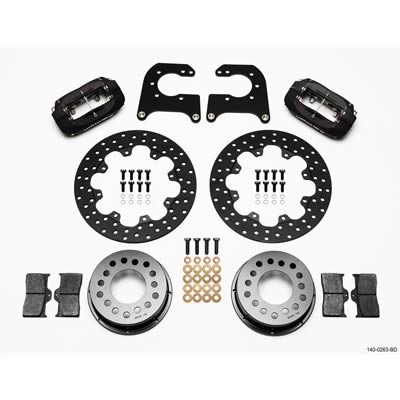

Wilwood Forged Dynalite Rear Drag Brake Kits 140-0263-BD

Having disc brakes up front is a great idea and Wilwood Dynalite rear drag kits make it possible to have them in the rear, too. They're built around Wilwood's forged billet 4-piston calipers, lightweight alloy-steel rotors with machined aluminum mounting hats, and Smart Pad brake pads. This combination produces great stopping power and simultaneously reduces both rotating mass and overall vehicle weight. That lighter overall weight, in turn, can translate into lower ETs. The kits come complete with Grade 8 and aircraft-quality mounting hardware.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-0263-BD
Part Type: Disc Brake Kits
Product Line: Wilwood Forged Dynalite Rear Drag Brake Kits
HP Direct Part Number: WIL-140-0263-BD
UPC: 889545008258
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.
Brake Rotor Bolt Pattern (mm): Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm
Differential Case Design Type: GM 8.875 in. (12-bolt), passenger car
Axle Housing Flange Style: 10/12 Bolt Chevrolet (3.072 in. x 2.40 in.)
Rear Rotor Included: Yes
Rear Rotor Style: Cross-drilled surface
Rear Rotor Construction: Solid
Rear Rotor Diameter: 11.44 in./290.60mm
Rear Rotor Thickness (in.): 0.35
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Gray/Silver
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: No
Offset (in.): 2.810 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: GM 10/12 bolt flange measures, 3.072 in. top bolts center to center, 2.652 in. bottom bolts center to center and 2.404 in. top to bottom bolts center to center. 2.725 in. center bore.
