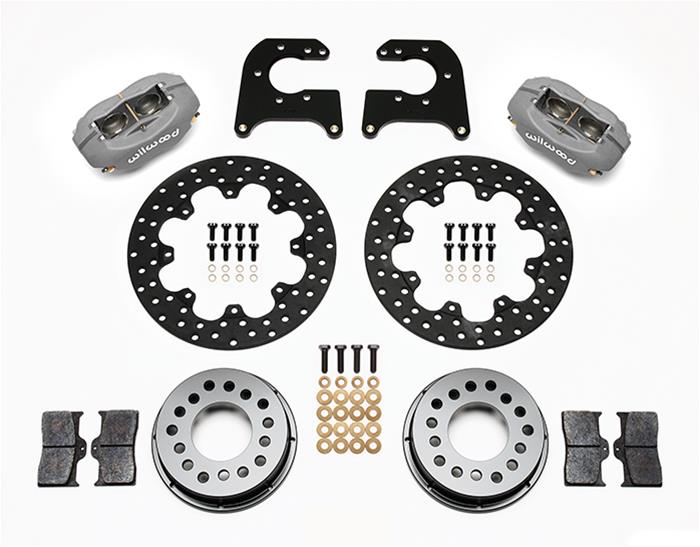

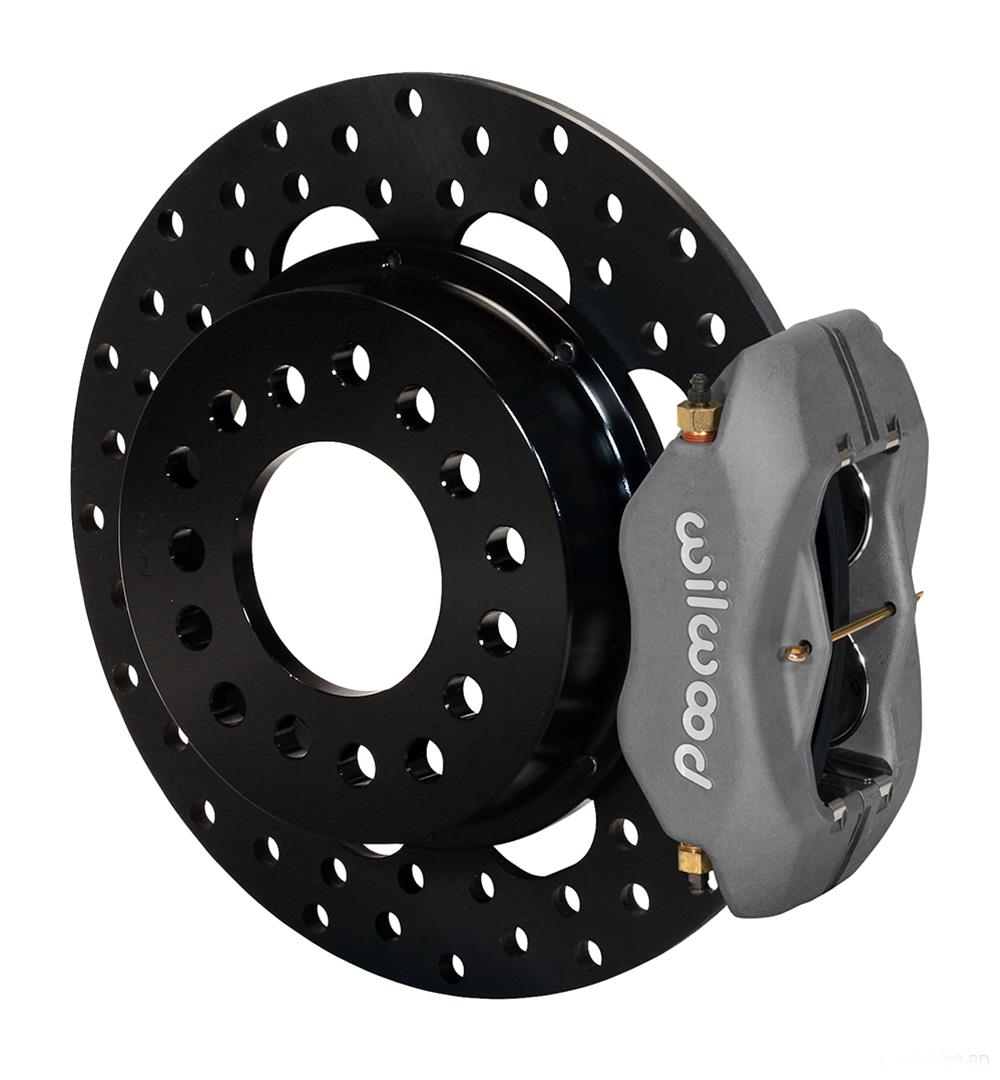

Wilwood Forged Dynalite Rear Drag Brake Kits 140-0260-BD

Having disc brakes up front is a great idea and Wilwood Dynalite rear drag kits make it possible to have them in the rear, too. They're built around Wilwood's forged billet 4-piston calipers, lightweight alloy-steel rotors with machined aluminum mounting hats, and Smart Pad brake pads. This combination produces great stopping power and simultaneously reduces both rotating mass and overall vehicle weight. That lighter overall weight, in turn, can translate into lower ETs. The kits come complete with Grade 8 and aircraft-quality mounting hardware.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-0260-BD
Part Type: Disc Brake Kits
Product Line: Wilwood Forged Dynalite Rear Drag Brake Kits
HP Direct Part Number: WIL-140-0260BD
UPC: 889545008173
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.
Brake Rotor Bolt Pattern (mm): Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm
Differential Case Design Type: Chrysler 8.75/9.75 in./Dana 60
Axle Housing Flange Style: Mopar/Dana 60 5-Bolt (2.875 in. Bearing)
Rear Rotor Included: Yes
Rear Rotor Style: Cross-drilled surface
Rear Rotor Construction: Solid
Rear Rotor Diameter: 11.44 in./290.60mm
Rear Rotor Thickness (in.): 0.35
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Gray/Silver
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: No
Offset (in.): 2.360 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Special Attention: Requires the use of non-adjustable "green" axle bearings without snap rings.
