Description

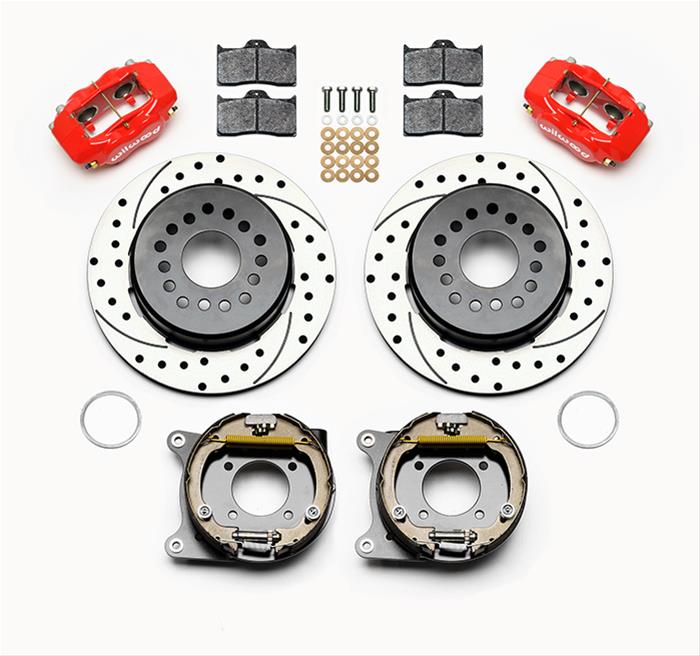

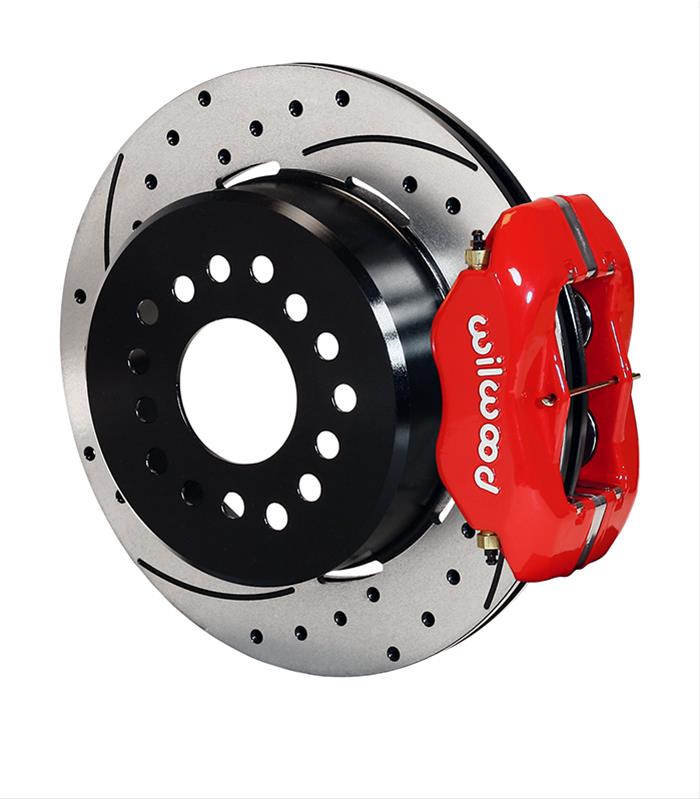

Do you want to get rid of your old-fashioned rear drums and upgrade to modern disc brakes without giving up the parking brake? Wilwood has the answer with their high performance Forged Dynalite Pro series disc rear parking brake kits. They combine forged, 4-piston, forged billet Dynalite calipers and big solid or vented iron rotors with integral parking brake "hats." This gives you big-time stopping power and still maintains the parking function. These kits also include preassembled parking brake mechanisms, PolyMatrix brake pads, mounting brackets, and all necessary installation hardware.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-9315-DR
Part Type: Disc Brake Kits
Product Line: Wilwood Forged Dynalite Pro Series Rear Disc Parking Brake Kits
HP Direct Part Number: WIL-140-9315-DR
UPC: 889545031737
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): 5 x 4.75 in.
Brake Rotor Bolt Pattern (mm): 5 x 120.65mm
Differential Case Design Type: GM 8.875 in. (12-bolt), passenger car

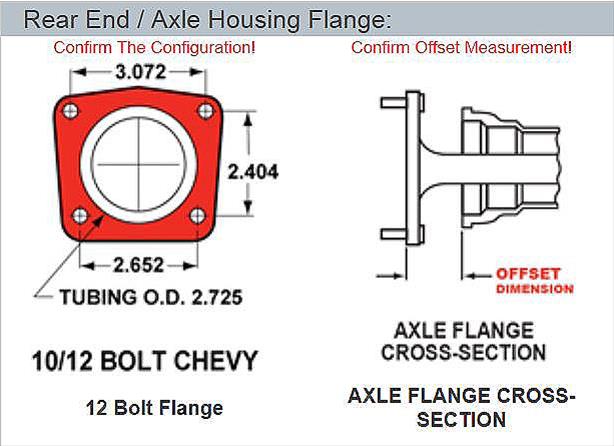

Axle Housing Flange Style: 10/12 Bolt Chevrolet (3.072 in. x 2.40 in.)
Rear Rotor Included: Yes
Rear Rotor Style: Cross-drilled/Slotted surface
Rear Rotor Construction: Solid
Rear Rotor Diameter: 12.19 in./309.63mm
Rear Rotor Thickness (in.): 0.81
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Red
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: Yes
Parking Brake Style: Internal drum
Offset (in.): 2.750 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Special Attention: For OE C-Clip axles only. Does not support Special End or C-Clip Eliminator modifications. Hats drilled for 7/16 in., 1/2 in. and 12mm studs. Kit designed for staggered shock mount rear ends: R/H caliper is rear mount, L/H caliper is front mount.
Manufacturer's Part Number: 140-9315-DR
Part Type: Disc Brake Kits
Product Line: Wilwood Forged Dynalite Pro Series Rear Disc Parking Brake Kits
HP Direct Part Number: WIL-140-9315-DR
UPC: 889545031737
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): 5 x 4.75 in.
Brake Rotor Bolt Pattern (mm): 5 x 120.65mm
Differential Case Design Type: GM 8.875 in. (12-bolt), passenger car
Axle Housing Flange Style: 10/12 Bolt Chevrolet (3.072 in. x 2.40 in.)
Rear Rotor Included: Yes
Rear Rotor Style: Cross-drilled/Slotted surface
Rear Rotor Construction: Solid
Rear Rotor Diameter: 12.19 in./309.63mm
Rear Rotor Thickness (in.): 0.81
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Red
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: Yes
Parking Brake Style: Internal drum
Offset (in.): 2.750 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Special Attention: For OE C-Clip axles only. Does not support Special End or C-Clip Eliminator modifications. Hats drilled for 7/16 in., 1/2 in. and 12mm studs. Kit designed for staggered shock mount rear ends: R/H caliper is rear mount, L/H caliper is front mount.
