Wilwood Forged Dynalite Pro Series Rear Disc Parking Brake Kits 140-11348-R

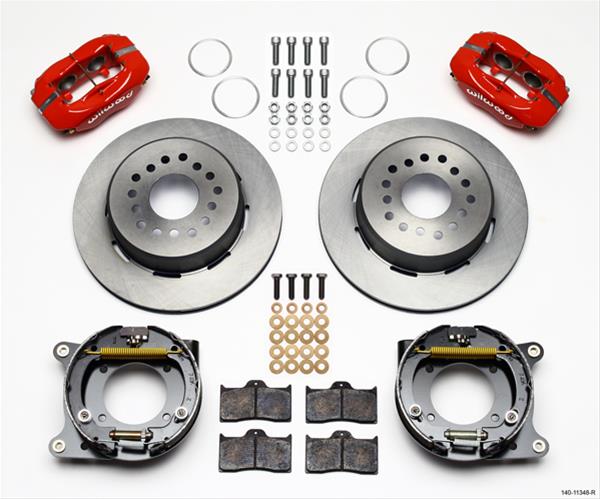

Do you want to get rid of your old-fashioned rear drums and upgrade to modern disc brakes without giving up the parking brake? Wilwood has the answer with their high performance Forged Dynalite Pro series disc rear parking brake kits. They combine forged, 4-piston, forged billet Dynalite calipers and big solid or vented iron rotors with integral parking brake "hats." This gives you big-time stopping power and still maintains the parking function. These kits also include preassembled parking brake mechanisms, PolyMatrix brake pads, mounting brackets, and all necessary installation hardware.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-11348-R
Part Type: Disc Brake Kits
Product Line: Wilwood Forged Dynalite Pro Series Rear Disc Parking Brake Kits
HP Direct Part Number: WIL-140-11348-R
UPC: 889545012668
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.
Brake Rotor Bolt Pattern (mm): Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm

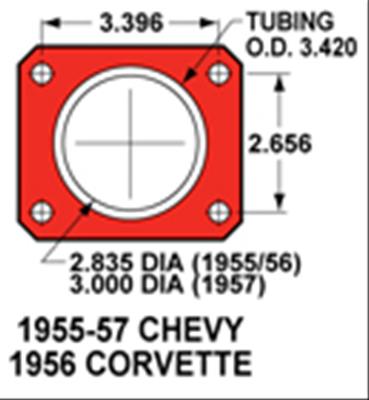

Axle Housing Flange Style: Chevrolet 55-64/Corvette 56-62 (3.396 in. x 2.65 in.)
Rear Rotor Included: Yes
Rear Rotor Style: Solid surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 12.19 in./309.63mm
Rear Rotor Thickness (in.): 0.81
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Red
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: Yes
Parking Brake Style: Internal drum
Minimum Recommended Wheel Diameter (in.): 15 in.

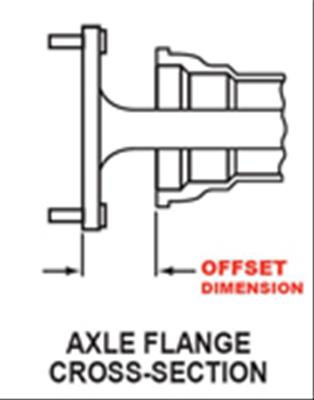

Offset (in.): 2.340 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.

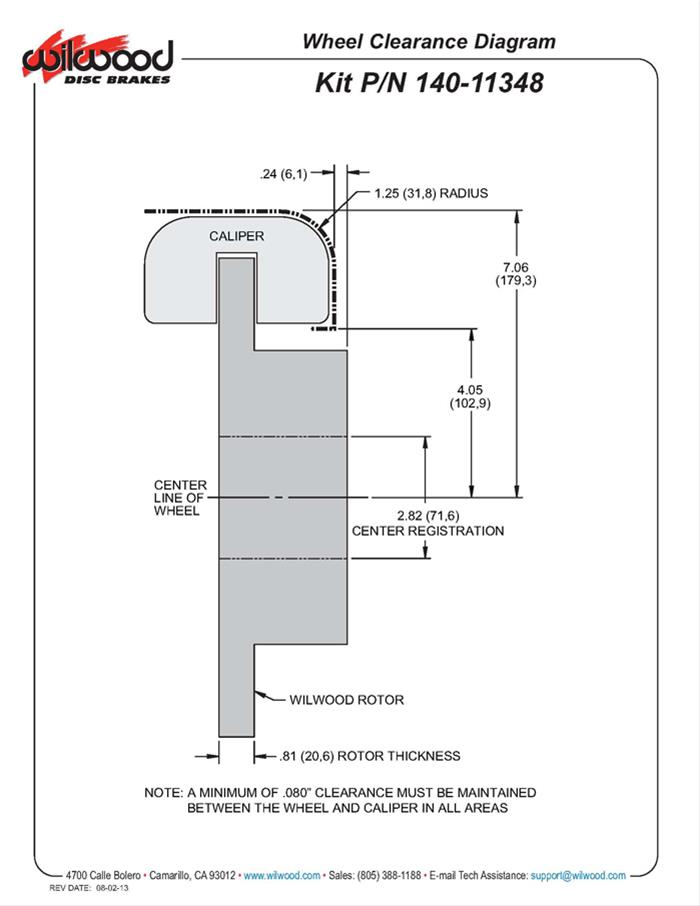

Notes: Kit may fit some 15 inch wheels. Check wheel clearance diagram in kit installation instructions before purchase.
