Description

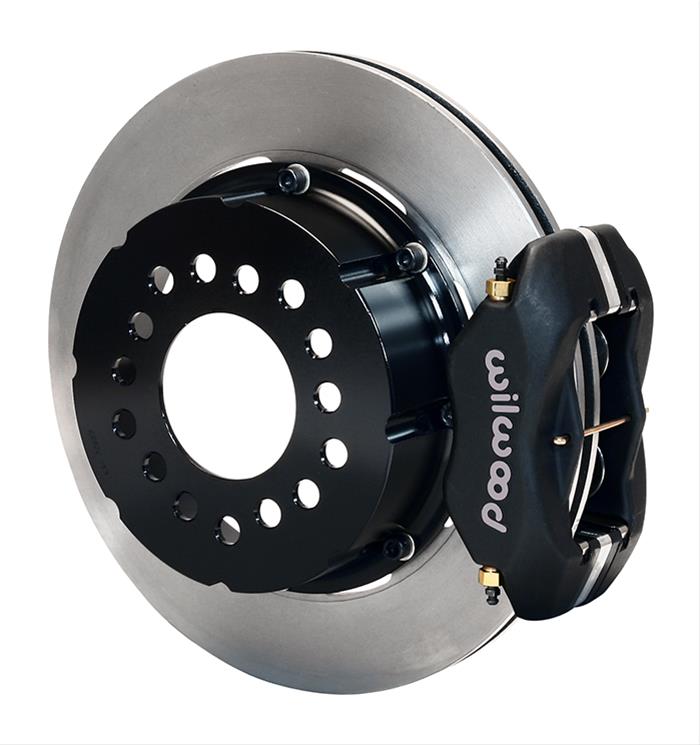

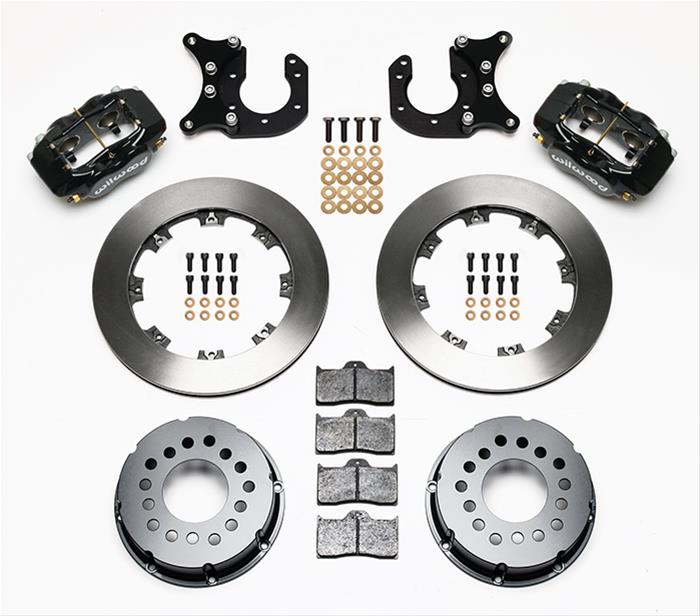

Wilwood Forged Dynalite Pro Series rear brake kits provide a complete solution for popular muscle car rear axles on applications where individual wheel parking brake assemblies are not required. FDL Pro Series rear kits package Wilwood's Forged billet Dynalite 4-piston calipers, 2-piece hat and rotor assemblies, and high-friction pads for optimized and balanced braking for all types of off-road, competition, and other customized applications. The Dynalite calipers can be optioned with a full range of finishes to reflect your personalized style, and the rotor choices provide options for high-tech show winning style, or heavy weight durability and cooling capacity for high-heat competition.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-2118-B
Part Type: Disc Brake Kits
Product Line: Wilwood Forged Dynalite Pro Series Rear Disc Brake Kits
HP Direct Part Number: WIL-140-2118B
UPC: 889545022117
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.
Brake Rotor Bolt Pattern (mm): Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm
Differential Case Design Type: Ford 9 in.
Axle Housing Flange Style: Big Ford New Style/Torino (3.562 in. x 2.00 in.)
Rear Rotor Included: Yes
Rear Rotor Style: Solid surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 12.19 in./309.63mm
Rear Rotor Thickness (in.): 0.81
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Black
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: No

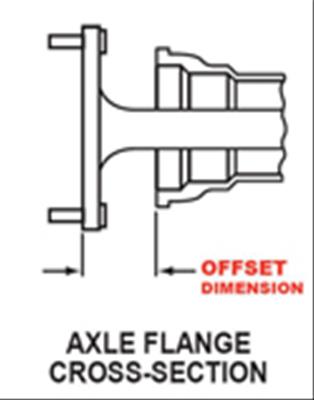

Offset (in.): 2.500 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.

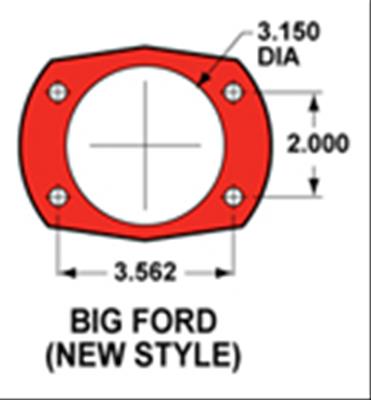

Notes: Big Ford new style housing end measures, 3.562 in. top bolts center to center, 3.562 in. bottom bolts center to center and 2.000 in. top to bottom bolts center to center.
Manufacturer's Part Number: 140-2118-B
Part Type: Disc Brake Kits
Product Line: Wilwood Forged Dynalite Pro Series Rear Disc Brake Kits
HP Direct Part Number: WIL-140-2118B
UPC: 889545022117
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.
Brake Rotor Bolt Pattern (mm): Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm
Differential Case Design Type: Ford 9 in.
Axle Housing Flange Style: Big Ford New Style/Torino (3.562 in. x 2.00 in.)
Rear Rotor Included: Yes
Rear Rotor Style: Solid surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 12.19 in./309.63mm
Rear Rotor Thickness (in.): 0.81
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Black
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: No
Offset (in.): 2.500 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: Big Ford new style housing end measures, 3.562 in. top bolts center to center, 3.562 in. bottom bolts center to center and 2.000 in. top to bottom bolts center to center.
