Wilwood Forged Dynalite Pro Series Front Disc Brake Kits 140-11023-R

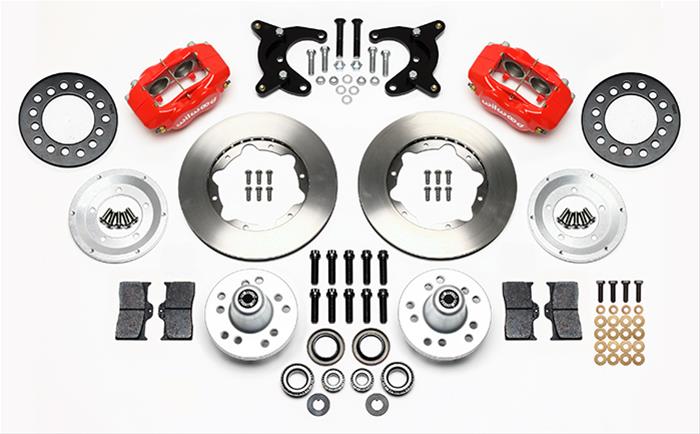

Wilwood's Forged Dynalite Pro series front disc brake kits are designed to provide unmatched performance with classic, high-tech styling for a wide variety of street rods, musclecars, hot rods, and heavy drag cars. The kits combine the powerful clamping force of Dynalite calipers with the added performance and cooling capacity of competition-style vented rotors. Other features include hubs, brake pads, caliper brackets, mounting hardware, and detailed instructions for an easy bolt-on installation. In addition to everything else, these kits can also cut as much as 35 lbs. off of your front-end.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-11023-R
Part Type: Disc Brake Kits
Product Line: Wilwood Forged Dynalite Pro Series Front Disc Brake Kits
HP Direct Part Number: WIL-140-11023-R
UPC: 889545012156
Position: Front
Front Rotor Included: Yes
Front Rotor Style: Solid surface
Front Rotor Construction: Vented
Front Rotor Diameter: 11.00 in./279.40mm
Front Rotor Thickness (in.): 0.81 in.
Brake Rotor Bolt Pattern (in.): Dual 5 x 4.50 in./5 x 4.75 in.
Brake Rotor Bolt Pattern (mm): Dual 5 x 114.30mm/5 x 120.65mm
Rear Rotor Included: No
Front Caliper Included: Yes
Front Caliper Piston Quantity: Four
Front Caliper Material: Forged billet aluminum
Front Caliper Color: Red
Rear Caliper Included: No
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: No
Minimum Recommended Wheel Diameter (in.): 15 in.
Offset (in.): 0.200 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.

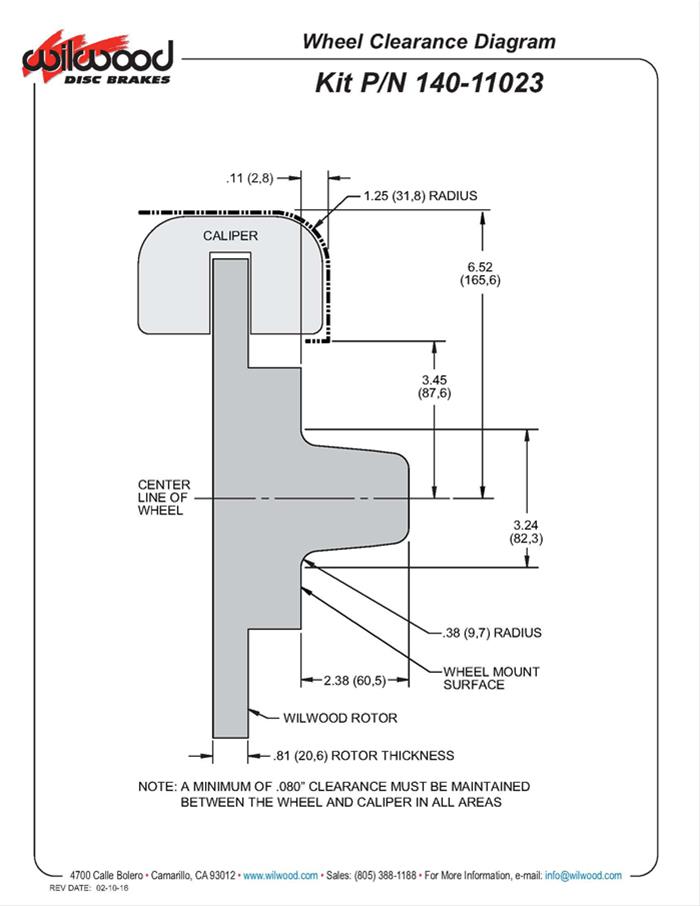

Notes: Includes 1/2 in.-20 wheel studs. Fits applications with factory 10 inch drum brake spindles. Wilwood hubs in this kit require a larger center hole in wheel than factory hub. Please verify that your wheel has a center hole at least 3.050 inch in diameter.
