Description

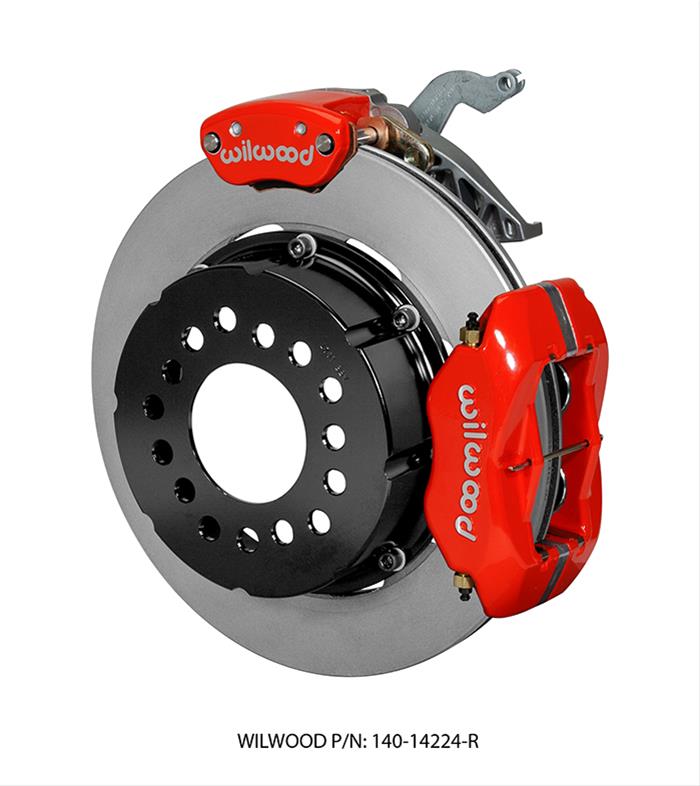

Wilwood Forged Dynalite MC4 rear parking brake kits provide a setup that delivers high-torque stopping power, optimized cooling, and superior styling for the street or track. These rear disc brake kits with parking brake provide a complete solution for popular muscle car rear axles on applications where internal drum parking brake assemblies interfere with C-clip eliminator assemblies. Wilwood Forged Dynalite MC4 rear parking brake kits feature FDL billet 4-piston calipers in a choice of finishes, MC4 parking brake calipers, and 2-piece hat and rotor assemblies. Plus, their high-friction pads provide optimized and balanced braking for all types of off-road, competition, and customized applications.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-14224-R
Part Type: Disc Brake Kits
Product Line: Wilwood Forged Dynalite MC4 Rear Parking Brake Kits
HP Direct Part Number: WIL-140-14224-R
UPC: 889545077988
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.
Brake Rotor Bolt Pattern (mm): Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm
Differential Case Design Type: GM 8.875 in. (12-bolt), passenger car

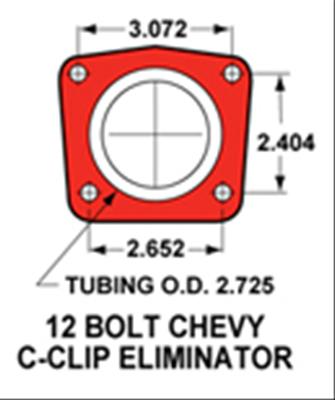

Axle Housing Flange Style: 12 Bolt Chevrolet C-Clip Eliminator (3.072 in. x 2.40 in.)
Rear Rotor Included: Yes
Rear Rotor Style: Solid surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 12.19 in./309.63mm
Rear Rotor Thickness (in.): 0.81
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Red
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: Yes
Parking Brake Style: Mechanical caliper
Minimum Recommended Wheel Diameter (in.): 15 in.

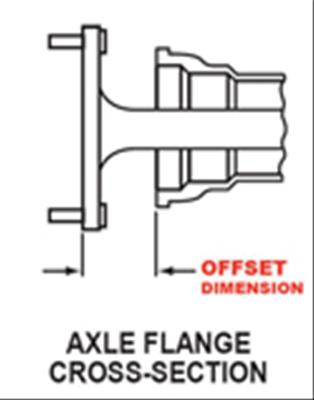

Offset (in.): 2.910 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: Fits axles using C-clip eliminators.
Manufacturer's Part Number: 140-14224-R
Part Type: Disc Brake Kits
Product Line: Wilwood Forged Dynalite MC4 Rear Parking Brake Kits
HP Direct Part Number: WIL-140-14224-R
UPC: 889545077988
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.
Brake Rotor Bolt Pattern (mm): Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm
Differential Case Design Type: GM 8.875 in. (12-bolt), passenger car
Axle Housing Flange Style: 12 Bolt Chevrolet C-Clip Eliminator (3.072 in. x 2.40 in.)
Rear Rotor Included: Yes
Rear Rotor Style: Solid surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 12.19 in./309.63mm
Rear Rotor Thickness (in.): 0.81
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Red
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: Yes
Parking Brake Style: Mechanical caliper
Minimum Recommended Wheel Diameter (in.): 15 in.
Offset (in.): 2.910 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: Fits axles using C-clip eliminators.
