Description

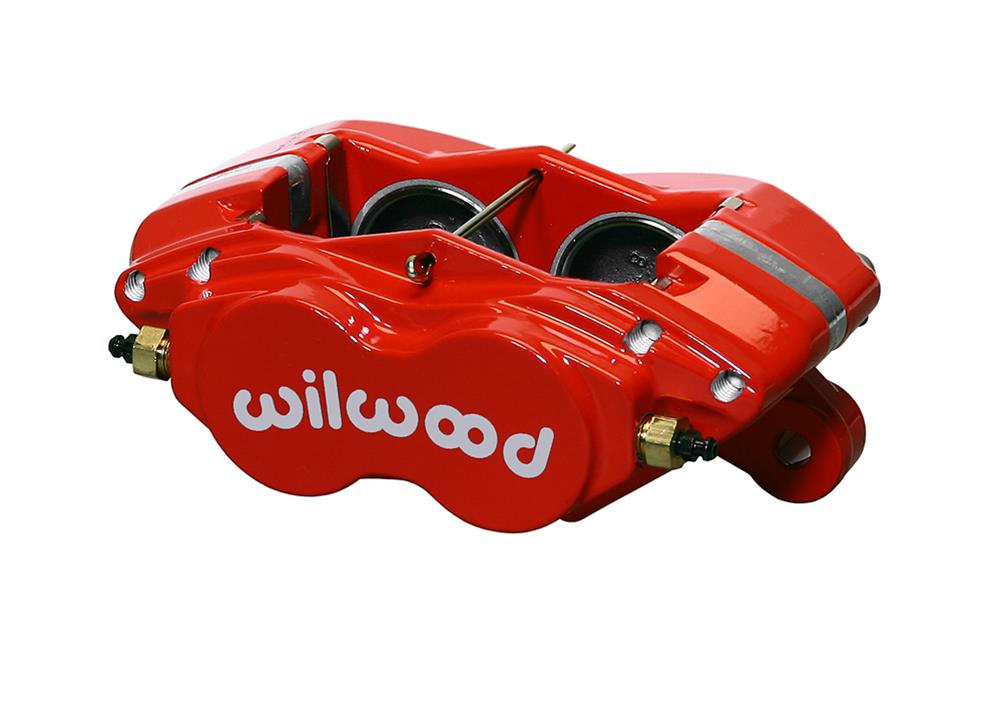

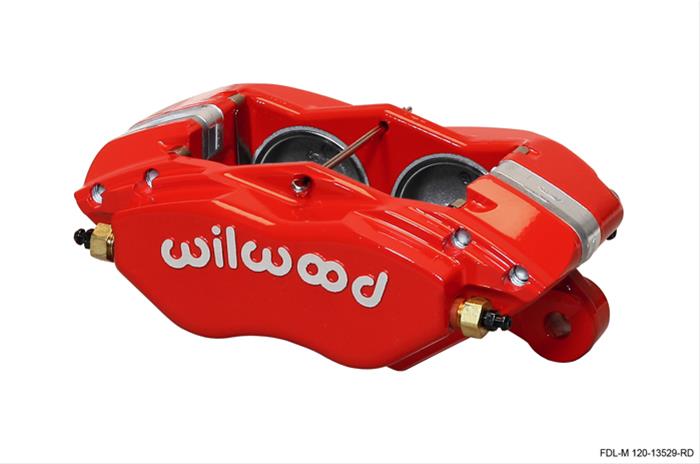

An enhancement of the original Dynalite series calipers, Wilwood Forged Dynalite-M calipers are the strongest calipers in their class and are the basis of Wilwood's classic-style brake kits. They are built from stress-flow forgings that re-align the metal's grain structure within the caliper, eliminating breaks and interruptions to the internal grain structure that occur when machining a billet. Finite element analysis (FEA) design was used to eliminate steps and shoulders between the piston housing body and the caliper bridges--substantially increasing resistance to deflection and caliper separation. The result is a taller pedal and better stopping power.
Specifically designed to enhance outboard clearance, they also feature Wilwood's SRS stainless steel bridge plates that eliminate the bridge wear caused by pad gouging and extend the service life of the caliper. Their spring-loading action eliminates pad rattle and dampens the vibration harmonics that contribute to brake squeal. Other standard features include high-temperature seals and stainless steel pistons that eliminate corrosion and retard heat transfer from the pads. Internal fluid passages eliminate the need for external tubes. Four corner bleed screws simplify bleeding and allow Dynalite-M calipers to be mounted in any position. Offered for several rotor widths and your choice of anodized and powdercoated finishes, Dynalite-M calipers provide light weight, high-tech style and outstanding stopping power.
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 120-13551-RD
Part Type: Brake Calipers
Product Line: Wilwood Forged Dynalite-M Calipers
HP Direct Part Number: WIL-120-13551-RD
UPC: 889545070590
Caliper Series: Forged Dynalite-M
Caliper Piston Quantity: Four
Piston Diameter (in.): 1.750
Rotor Thickness (in.): 1.000 in.
Caliper Material: Aluminum
Caliper Color: Red
Caliper Logo: Wilwood
Parking Brake Provision: No
Fittings Included: No
Fitting Attachment 1: Female threads
Thread Size: 1/8 in. NPT
Brake Pads Included: No
Brackets Included: No
Remanufactured: No
Quantity: Sold individually.
Specifically designed to enhance outboard clearance, they also feature Wilwood's SRS stainless steel bridge plates that eliminate the bridge wear caused by pad gouging and extend the service life of the caliper. Their spring-loading action eliminates pad rattle and dampens the vibration harmonics that contribute to brake squeal. Other standard features include high-temperature seals and stainless steel pistons that eliminate corrosion and retard heat transfer from the pads. Internal fluid passages eliminate the need for external tubes. Four corner bleed screws simplify bleeding and allow Dynalite-M calipers to be mounted in any position. Offered for several rotor widths and your choice of anodized and powdercoated finishes, Dynalite-M calipers provide light weight, high-tech style and outstanding stopping power.
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 120-13551-RD
Part Type: Brake Calipers
Product Line: Wilwood Forged Dynalite-M Calipers
HP Direct Part Number: WIL-120-13551-RD
UPC: 889545070590
Caliper Series: Forged Dynalite-M
Caliper Piston Quantity: Four
Piston Diameter (in.): 1.750
Rotor Thickness (in.): 1.000 in.
Caliper Material: Aluminum
Caliper Color: Red
Caliper Logo: Wilwood
Parking Brake Provision: No
Fittings Included: No
Fitting Attachment 1: Female threads
Thread Size: 1/8 in. NPT
Brake Pads Included: No
Brackets Included: No
Remanufactured: No
Quantity: Sold individually.
