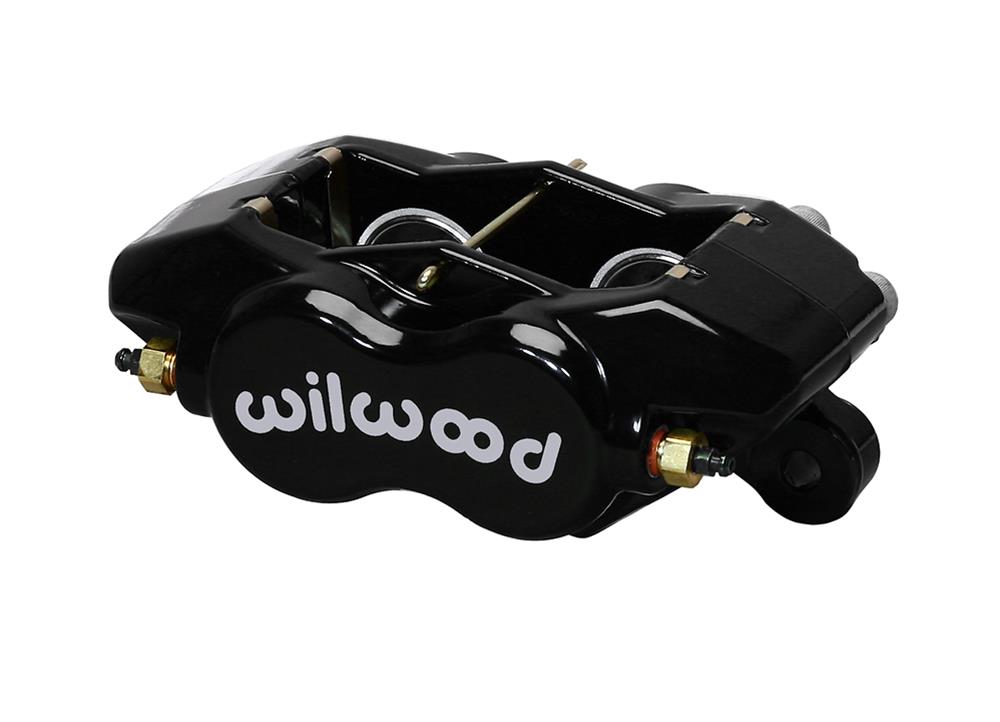

Wilwood Forged Dynalite Internal Calipers 120-13843-BK

Wilwood Forged Dynalite Internal calipers are the next generation enhancement of the venerable Forged Dynalite series and feature a single split bridge and spacer-less design to enhance strength and appearance. These latest applied developments and innovations in the calipers' design and manufacturing processes have resulted in substantial improvements in strength and performance over all comparable models. Wilwood's Forged Dynalite Series calipers are the strongest in the class, with weights starting at 3.00 pounds. The process of stress-flow forging re-aligns the metal's grain structure within the contour of the caliper body to help eliminate the breaks and interruptions to the internal grain structure that occur when machining a straight block billet. The FEA-generated radial transition design eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. Incorporating a radius in this transition area substantially increases resistance to deflection and caliper separation under load. Structural deflection and volume displacement tests have proven the Forged Dynalite to outperform existing styles of this popular caliper size. A variety of size and color options are available.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 120-13843-BK
Part Type: Brake Calipers
Product Line: Wilwood Forged Dynalite Internal Calipers
HP Direct Part Number: WIL-120-13843-BK
UPC: 889545099010
Caliper Series: Forged Billet Dynalite Internal
Caliper Piston Quantity: Four
Piston Diameter (in.): 1.750/1.750
Rotor Thickness (in.): 0.380 in.
Caliper Material: Aluminum
Caliper Color: Black
Caliper Logo: Wilwood
Parking Brake Provision: No
Fittings Included: No
Fitting Attachment 1: Female threads
Thread Size: 1/8 in. NPT
Brake Pads Included: No
Brackets Included: No
Remanufactured: No
Quantity: Sold individually.
